🔧 Pilot - Taillight Bulb Replacement

On your Pilot, some rear lights use replaceable bulbs (typically turn signal and reverse), while others may be LED modules that are not serviced as a “bulb.” The job is usually removing the taillight housing, swapping the bulb, then reinstalling without breaking the alignment pins.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Quick check before you start (so I guide you perfectly):

• ❓ Which function is out: parking/running, brake, turn signal, or reverse?
• ❓ Is it on the body (outer lamp) or on the liftgate (inner lamp)?

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key/fob from the vehicle.
• ⚠️ Let bulbs cool before touching them.
• ⚠️ Wear gloves—skin oil can shorten bulb life.
• ⚠️ Do not overtighten the lamp nuts; the housing can crack.
• ⚠️ Battery disconnect is not required for bulb replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Trim removal tool
• Phillips screwdriver #2
• Torque wrench (in-lb) 20-100 in-lb range
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (7440A amber) - Replace in pairs - Qty: 2
• Reverse light bulb (921) - Replace in pairs - Qty: 2
• Tail/brake light (LED module) - Qty: 1 (only if confirmed LED has failed)

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the rear hatch for access.
• If you’re not sure which bulb is out, turn on the hazards (for turn bulbs) or have a helper press the brake / shift to Reverse (engine ON, foot on brake) to confirm the exact function.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the taillight fasteners

• Open the hatch.
• On the side you’re replacing, locate the small interior trim cover(s) beside the taillight area.
• Use a trim removal tool to gently pop the cover(s) off. Start at an edge, pry slowly.

Step 2: Remove the taillight housing (outer body lamp)

• Use an 8mm socket or 10mm socket with a 1/4" drive ratchet and 3" extension to remove the mounting nuts (Honda uses either size depending on lamp/fastener).
• Support the lamp with your free hand as the last nut comes off.
• Pull the housing straight rearward to release the alignment pins (do not pry sideways).
• If it feels stuck, wiggle gently while pulling straight back. Don’t force it—pins can snap.

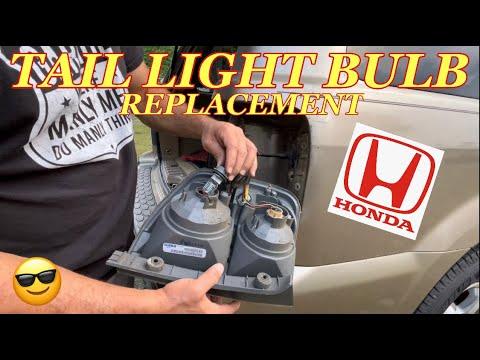

Step 3: Remove the bulb socket

• On the back of the housing, find the socket for the bulb you’re replacing (turn/reverse are usually in twist-lock sockets).
• Rotate the socket counterclockwise by hand and pull it out.
• If access is tight, use a Phillips screwdriver #2 only to remove any small access cover screws (if equipped).

Step 4: Replace the bulb

• Wear nitrile gloves.
• Pull the old bulb straight out of the socket.
• Push the new bulb fully into the socket until seated.
• If the bulb is a wedge type, it just pulls/pushes straight—no twisting.

Step 5: Reinstall socket and test before bolting everything up

• Insert the socket back into the housing and twist clockwise until it locks.
• Test the light function before reinstalling the housing:
  • Turn signal: switch on hazards.
  • Reverse: helper shifts to Reverse with brake applied.
  • Parking/running: headlight switch ON.
• If the light still doesn’t work, swap left/right bulbs to confirm the bulb isn’t defective before going further.

Step 6: Reinstall the taillight housing

• Line up the alignment pins with their holes and push the lamp straight in until fully seated.
• Install the nuts by hand first to avoid cross-threading.
• Use a torque wrench (in-lb) 20-100 in-lb range with an 8mm socket or 10mm socket to tighten the nuts: Torque to 5 N·m (44 in-lbs).
• Snap the trim cover(s) back into place by hand.

Step 7: If your failed “taillight” is LED (no bulb socket found)

• If there is no removable twist socket and the housing has an LED circuit, that light is typically serviced as a lamp/module, not a bulb.
• Stop here and tell me which exact function is out (running/brake/turn/reverse) and whether it’s the outer body lamp or inner liftgate lamp, and I’ll give you the correct replacement path for the LED unit.

---

✅ After Repair

• Verify all rear light functions: running lights, brake lights, turn signals, and reverse lights.
• Confirm the housing sits flush with the body and the hatch closes without rubbing.
• After a car wash or rain, check for moisture inside the lamp (sign of a mis-seated gasket).

---

💰 DIY vs Shop Cost

Shop Cost: $80-$200 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $70-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
