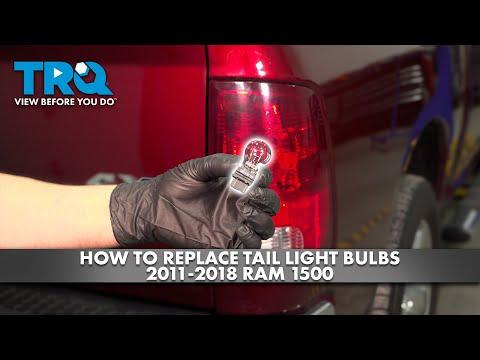

1500 - Taillight Bulb Replacement 💡

Good news: on your 1500, the taillight bulbs are easy to reach from outside the truck. I’ll walk you through it step by step for both sides.

Check First ❓

On your truck, the rear light assembly usually has:

• 🔧 3157 / 3057 style bulbs for brake/turn/parking (depends on exact build)

Do you want to:

• 🔧 Replace just the burned-out bulbs, or
• 🔧 Replace all rear bulbs on both sides as maintenance?

I’ll assume you want to replace all the bulbs in both taillights. If that’s wrong, you can tell me after.

Parts You’ll Need 📦

• 🔧 New bulbs (for each side):
  • Brake/turn/parking bulb: typically 3157 or 3057 dual-filament bulb (clear, not amber)
  Tip: Match the number printed on your old bulb base if possible.
• 🔧 Dielectric grease (optional but recommended; a clear grease that protects electrical contacts from corrosion)
• 🔧 Clean rag or paper towel

Tools You’ll Need 🧰

• 🔧 Torx T25 driver or bit (Torx = star-shaped screw head)
• 🔧 1/4" ratchet or screwdriver handle for the Torx bit
• 🔧 Plastic trim tool or a wrapped flat screwdriver (optional, to help gently pry the light)
• 🔧 Gloves (keeps oils from your skin off the bulbs)

Safety First ⚠️

• 🔧 Park on a flat surface, set the parking brake, and put the transmission in PARK.
• 🔧 Turn the headlights and ignition OFF before working on bulbs.
• 🔧 Don’t pull on the wiring harness; always hold the connectors and bulb sockets.

Step 1 – Open the Tailgate 🚚

• 🔧 Lower the tailgate fully. This gives you access to the screws that hold the taillight in place.

Step 2 – Remove Taillight Screws 🔩

• 🔧 On the side of the bed (inside edge, next to the tailgate opening), locate the two vertical Torx screws holding the taillight.
• 🔧 Use your T25 Torx driver to remove both screws.
  • Keep them in a safe place; you’ll reuse them.

Step 3 – Pull the Taillight Assembly Out 📦

• 🔧 Hold the taillight housing with both hands and pull it straight back away from the truck.
  • There are plastic alignment pins that pop out of rubber grommets. They can be a bit tight.
• 🔧 If it’s stuck:
  • Wiggle the light gently side-to-side while pulling straight back.
  • You can use a plastic trim tool at the front edge to help, but do not pry hard to avoid cracking the housing or paint.

Step 4 – Identify and Remove Bulb Sockets 💡

• 🔧 On the back of the taillight, you’ll see round bulb sockets that twist into the housing.
• 🔧 For each bulb you’re replacing:
  • Grasp the socket and turn it about ¼ turn counterclockwise (left) to unlock.
  • Pull the socket straight out of the taillight housing.
• 🔧 The upper socket is usually the brake/turn/parking bulb on your 1500.

Step 5 – Remove Old Bulbs 🧤

• 🔧 Hold the socket in one hand and the bulb in the other.
• 🔧 Pull the bulb straight out from the socket.
  • These are usually wedge-style bulbs (they push in and pull out, no twist).
• 🔧 Check the bulb number printed on the base (e.g., 3157) and match it to your new bulb.

Step 6 – Install New Bulbs ✨

• 🔧 If you have dielectric grease, put a tiny dab on the metal contacts inside the socket. Don’t fill the socket, just a light smear.
• 🔧 With clean gloves, push the new bulb straight into the socket until it’s fully seated.
• 🔧 Make sure it’s not loose; it should feel snug.

Step 7 – Reinstall Bulb Sockets 🔁

• 🔧 Line up the tabs on the socket with the slots in the taillight housing.
• 🔧 Insert the socket into the hole and turn it ¼ turn clockwise (right) to lock it in place.
• 🔧 Repeat for any other bulbs you’re replacing in that taillight.

Step 8 – Refit the Taillight Assembly 🔙

• 🔧 Line up the alignment pins on the back of the taillight with the holes in the truck bed.
• 🔧 Push the taillight straight in until it snaps/seats flush with the body.
• 🔧 Reinstall the two T25 screws and snug them down.
  • Torque spec is light: about 20–25 in-lb (just snug with a small driver; do not overtighten).

Step 9 – Repeat on the Other Side 🔄

• 🔧 Do the exact same steps for the other taillight so both sides have fresh bulbs and match in brightness.

Step 10 – Test All Lights ✅

• 🔧 Turn ignition to RUN (engine can stay off).
• 🔧 Check:
  • Tail/parking lights (headlight switch to parking or ON)
  • Brake lights (press pedal; you may need a helper or use a stick against the seat)
  • Turn signals left and right
  • Hazard lights
• 🔧 Make sure both sides are equally bright and no “fast flash” on the turn signals (fast flash usually means a bulb is out).

Tips & Tricks 🧠

• 🔧 Don’t touch the glass of the new bulb with bare fingers; oils can shorten bulb life. If you do, wipe it with a clean tissue or alcohol wipe.
• 🔧 If a bulb doesn’t light, remove it, rotate it 180°, and reinstall (for some styles, orientation matters).
• 🔧 If you ever upgrade to LEDs, you may need resistors or a CANbus-compatible LED to avoid warning messages or fast flashing.

If you can, pop one taillight out and tell me the number printed on the bulb (like 3157 or 3057). I can then confirm the exact bulb types and how many you should buy so you only do this job once.
