🔧 QX80 - Taillight Bulb Replacement

You’ll remove each outer taillight assembly, swap the failed bulb(s), then reinstall the lamp and test all rear lighting. On your QX80, the bulbs are accessed from inside the rear cargo area behind small trim access covers.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key before starting.
• ⚠️ Let bulbs cool first; they can be hot.
• ⚠️ Don’t touch new bulb glass with bare fingers; skin oil can shorten bulb life.
• ⚠️ Support the taillight as you pull it out to avoid scratching paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Plastic trim removal tool
• Nitrile gloves
• Safety glasses
• Flashlight
• Small torque wrench (in-lb or low Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear taillight bulb(s) (outer lamp, as equipped) - Qty: 2-4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to P.
• Open the liftgate for access and good lighting.
• Tip: Lay a towel on the bumper edge.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the taillight fasteners (one side)

• Open the liftgate.
• Use a flashlight to locate the small interior access cover behind the taillight area (left or right cargo trim).
• Use a plastic trim removal tool to carefully pop the access cover open.

Step 2: Remove the taillight mounting nuts

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket, 6" socket extension, and 1/4" ratchet to remove the taillight mounting nuts.
• Place the nuts somewhere safe so they don’t get lost in the trim.

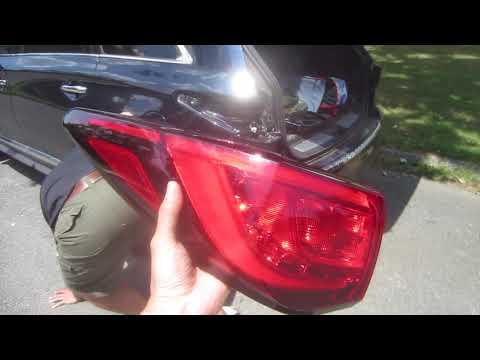

Step 3: Pull the taillight assembly out

• From outside the vehicle, hold the taillight with both hands.
• Pull the lamp straight rearward to release the locating pins/clips.
• If it feels stuck, use a plastic trim removal tool gently at the edge to help start it moving (do not pry hard).
• Tip: Straight back is key—don’t twist.

Step 4: Remove the bulb socket(s)

• With the taillight pulled out, locate the bulb socket(s) on the back of the lamp.
• Twist the socket counterclockwise by hand to unlock it, then pull it out.
• If a socket is tight, use nitrile gloves for extra grip.

Step 5: Replace the bulb(s)

• Pull the old bulb straight out of the socket (some bulbs may require a slight wiggle).
• Install the new bulb fully into the socket.
• Apply a tiny amount of dielectric grease to the socket seal if it looks dry (do not smear it on the bulb glass).
• Tip: Match bulb base shape before pushing in.

Step 6: Reinstall sockets and test before reassembly

• Insert each socket back into the lamp and twist clockwise until it locks.
• Turn the lights on and test the functions (parking lights, brake lights, and turn signals).
• If a bulb doesn’t work, turn lights back off and re-check that the bulb is seated and the socket is fully locked.

Step 7: Reinstall the taillight assembly

• Align the lamp’s locating pins with the body holes.
• Push the lamp straight in until it seats flush.
• Reinstall the mounting nuts using a 10mm socket, 6" socket extension, and 1/4" ratchet.
• Use a small torque wrench (in-lb or low Nm range) and 10mm socket to tighten: Torque to 5 Nm (44 in-lbs).
• Tip: Snug only—overtightening can crack the lamp.

Step 8: Repeat on the other side

• Repeat Steps 1–7 for the opposite taillight.

---

✅ After Repair

• Confirm left and right: tail/parking lights, brake lights, and turn signals all work.
• Verify both lamps sit flush with even panel gaps.
• Close the access covers and make sure they latch fully (no rattles).

---

💰 DIY vs Shop Cost

Shop Cost: $80-$200 (parts + labor)

DIY Cost: $10-$60 (parts only)

You Save: $70-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: Outer taillight assemblies are nut-retained behind cargo-area access covers; torque listed is typical for small lamp fasteners.
