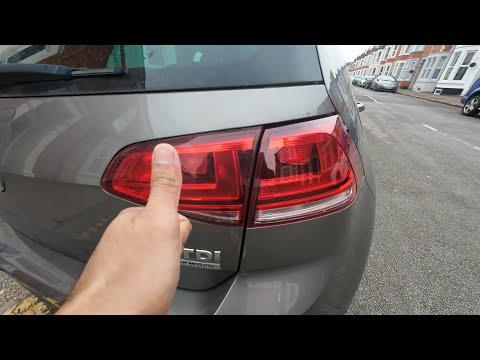

🔧 Golf - Taillight Bulb Replacement

On your Golf, the “taillight bulbs” can mean different bulbs (tail/running, brake, turn signal, reverse). The basic job is to access the rear lamp housings, remove the bulb holder, swap the bulbs, then test all light functions.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and switch lights OFF before starting.
• ⚠️ Let bulbs cool before touching; they get very hot.
• ⚠️ Don’t touch the glass part of a bulb with bare fingers.
• ⚠️ Support the lamp so it doesn’t drop and scratch paint.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 1/4" drive extension (3"-6")
• Trim removal tool (plastic)
• Torque wrench (inch-pound capable)
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear taillight bulbs - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hatch and remove any cargo so you can reach the rear side trim.
• Take a quick photo of bulb positions.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which “taillight bulb” you’re replacing

• Turn the light switch to parking lights and see which bulb is out (this is usually the “tail/running” light).
• If you mean brake or turn signal, have a helper press the brake pedal or use the hazards to identify the correct side.
• Use a flashlight to look through the lens and confirm which section is dark.

Step 2: Access the outer taillight (body-mounted) fastener

• In the cargo area, go to the side of the bulb you’re replacing.
• Use a trim removal tool (plastic) to open/remove the small access cover in the side trim panel (if equipped).
• Use a flashlight to locate the taillight retaining nut behind the trim.

Step 3: Remove the outer taillight assembly

• Use a 10mm socket with a 1/4" drive ratchet and extension (3"-6") to remove the retaining nut.
• With one hand on the lamp outside, gently pull the taillight straight rearward to release it from the locating pins.
• Unplug the electrical connector from the lamp (press the lock tab and pull straight off).

Step 4: Remove the bulb holder and replace the bulb

• On the back of the taillight, remove the bulb holder (it typically twists to unlock).
• Remove the old bulb from the holder and install the new bulb in the same position.
• If you have it, apply a tiny amount of dielectric grease to the connector seal (do not smear it on the bulb glass).
• Match bulb position exactly—don’t mix sockets.

Step 5: Reinstall the taillight

• Reinstall the bulb holder into the lamp and lock it in place.
• Plug the connector back in until it clicks.
• Line up the locating pins and gently push the taillight into place so it sits flush.
• Reinstall the retaining nut using a 10mm socket.
• Tighten with a torque wrench (inch-pound capable): Torque to 4 Nm (35 in-lbs).
• Reinstall the access cover using a trim removal tool (plastic).

Step 6: Repeat on the other side

• Repeat Steps 2–5 for the opposite taillight so both bulbs are replaced.

---

✅ After Repair

• Turn on parking lights and confirm both taillights illuminate evenly.
• Test brake lights, turn signals, and hazards to make sure nothing else was disturbed.
• If a bulb still doesn’t work, re-seat the connector and confirm the bulb is fully locked in the holder.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $70-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
