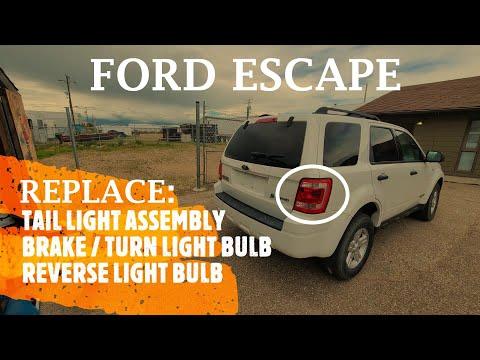

🔧 Escape - Taillight Bulb Replacement

This job replaces the rear taillight bulbs on both sides by removing each taillamp housing, swapping the bulb(s), and reinstalling the housing. It’s a quick fix when you have a brake/turn/tail light out or a dim/flickering bulb.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the light switch OFF and remove the key before starting.
• ⚠️ Let bulbs cool before touching; they can be hot.
• ⚠️ Don’t touch glass bulbs with bare fingers; skin oil can shorten bulb life.
• ⚠️ Support the taillamp as you pull it out so it doesn’t scratch paint.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Phillips screwdriver #2
• Plastic trim removal tool
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear stop/turn/tail bulb (typically 3157) - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the liftgate for access to the taillamp screws.
• If you’re unsure which bulb to buy, pull one bulb first and match the number printed on its base (example: 3157).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the taillamp screws (one side)

• Open the liftgate.
• Use a Phillips screwdriver #2 to remove the two screws on the inboard edge of the taillamp (the edge closest to the liftgate opening).
• Keep screws together so they don’t get lost.

Step 2: Pull the taillamp housing straight back

• Grip the taillamp with both hands and pull it straight rearward.
• If it feels stuck, use a plastic trim removal tool to gently help start it—don’t pry hard against painted metal.
• The housing is held by alignment pins; pulling straight back prevents breaking them.

Step 3: Remove the bulb socket

• Locate the stop/turn/tail bulb socket (usually the main socket in the housing).
• Twist the socket counterclockwise by hand and pull it out.
• If it’s tight, use nitrile gloves for better grip.

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket.
• Install the new bulb by pushing it straight in until fully seated.
• Use a flashlight to confirm the bulb sits flat and straight.

Step 5: Reinstall the socket and housing

• Insert the socket back into the housing and twist clockwise until it stops (hand-tight).
• Line up the housing pins with their holes and push the taillamp straight forward until it seats flush.
• Reinstall the two screws using a Phillips screwdriver #2.
• Tighten snug by hand (Ford does not publish a specific torque for these lamp screws; do not overtighten).

Step 6: Repeat on the other side

• Do the same steps for the opposite taillamp so both bulbs are replaced.

---

✅ After Repair

• Turn the key to ON and test: parking lights, brake lights, and turn signals.
• Confirm both sides match in brightness and blink rate.
• If a new bulb doesn’t light, remove it and re-seat it; also check the socket for corrosion.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $50-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
