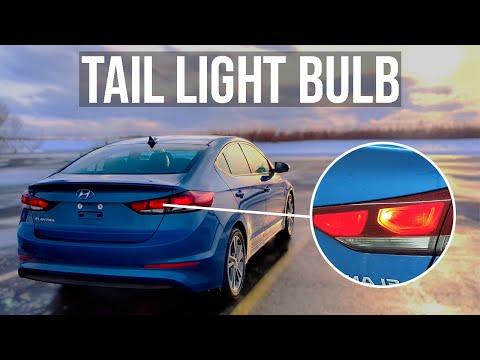

🔧 Elantra - Taillight Bulb Replacement

You’ll replace the rear outer taillight bulbs on both sides (left and right) from inside the trunk. This is usually a simple twist-out bulb socket job—no bumper removal needed.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and switch all exterior lights OFF before starting.
• ⚠️ Let bulbs cool first; they can burn you.
• ⚠️ Wear gloves and don’t touch the glass bulb with bare fingers (skin oil can shorten bulb life).
• ⚠️ If your taillights are LED (no removable bulb/socket), the bulb is not serviceable and the lamp assembly must be replaced.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• Trim panel tool (specialty)
• Needle-nose pliers
• Flashlight
• Torque wrench (in-lb or low-range Nm)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear taillight bulb (outer lamp: tail/stop/turn as equipped) - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your Elantra on level ground and open the trunk.
• Remove any trunk cargo so you have room to work.
• Confirm which function is out: tail/running light, brake light, or turn signal. (This helps you pick the correct bulb.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the taillight bulb area (left side)

• Use a flashlight to locate the trunk side trim access cover behind the left taillight.
• Remove the cover using a trim panel tool (specialty).

Step 2: Remove the bulb socket

• Find the bulb socket for the failed light (you’ll see it twisting into the back of the lamp).
• Twist the socket counterclockwise by hand and pull it straight out.
• If it’s tight, gently help it with needle-nose pliers (do not crush the plastic).

Step 3: Replace the bulb

• Pull the bulb straight out of the socket (some styles take a slight wiggle).
• Install the new bulb fully into the socket.
• Apply a tiny amount of dielectric grease to the socket seal area if it looks dry. Less is better.

Step 4: Reinstall the bulb socket and test

• Insert the socket back into the lamp and twist clockwise until it locks.
• Turn the lights on and test that side:
  • Tail/running lights ON.
  • Press brake pedal (have a helper watch, or back near a wall reflection).
  • Turn signal on that side.

Step 5: Repeat on the right side

• Move to the right trunk trim access cover and remove it using the trim panel tool (specialty).
• Repeat bulb socket removal and bulb replacement steps on the right side.

Step 6: If you removed lamp mounting nuts (only if needed)

• If access is limited and you had to loosen/remove the lamp retaining nuts, reinstall them using a 10mm socket and 1/4" ratchet.
• Torque to 5 Nm (44 in-lbs) using a torque wrench (in-lb or low-range Nm).
• Do not overtighten—lamp plastic can crack.

---

✅ After Repair

• Reinstall both trunk access covers and make sure they’re seated flat.
• Verify all rear lighting functions: tail lights, brake lights, and turn signals.
• If a new bulb still doesn’t work, the next checks are the fuse and the socket condition (corrosion/overheating).

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $40-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
