🔧 Wrangler - Taillight Bulb Replacement

You’ll remove each taillight housing from the body, swap the bulb(s), then reinstall the housings. This fixes dim, flickering, or burned-out rear lights and keeps your A4—sorry, your Wrangler—safe and street-legal.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

Assumption: replacing the main stop/turn/tail bulb (3157) on both sides.

---

⚠️ Safety & Precautions

• ⚠️ Turn the light switch OFF and remove the key before starting.
• ⚠️ Let bulbs cool before touching; they can be hot.
• ⚠️ Don’t touch new bulb glass with bare fingers; oils can shorten bulb life.
• ⚠️ Support the taillight so it doesn’t hang by the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Phillips #2 screwdriver
• Trim removal tool (specialty)
• Nitrile gloves
• Safety glasses
• Clean shop towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Taillight bulb (3157, dual-filament stop/turn/tail) - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the headlight switch to OFF.
• Open the tailgate for easier access to both taillights.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

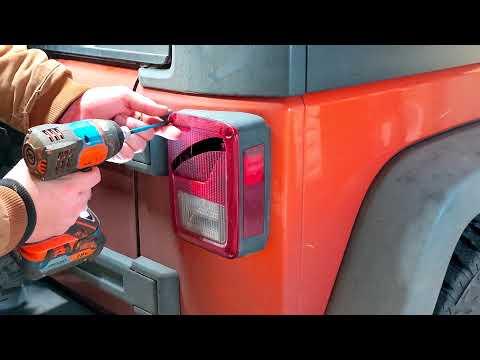

Step 1: Remove the driver-side taillight housing

• Use safety glasses and nitrile gloves.
• Use a Phillips #2 screwdriver to remove the two screws on the taillight lens (they’re on the inboard edge, near the tailgate opening).
• Gently pull the taillight housing straight back to release it from the body.
• If it’s stuck, use a trim removal tool (specialty) to gently pry at the edge. A trim tool is a plastic pry tool that helps pop clips without scratching paint.

Step 2: Remove the bulb socket

• Support the taillight with one hand.
• Twist the bulb socket counterclockwise by hand to unlock it, then pull the socket out of the housing.

Step 3: Replace the bulb

• Use a clean shop towel to hold the bulb and pull the old bulb straight out of the socket.
• Install the new 3157 bulb by pushing it straight into the socket until fully seated.
• Optional: apply a thin film of dielectric grease to the socket seal (not on the bulb glass). Keeps moisture out long-term.

Step 4: Reinstall the bulb socket and housing

• Insert the socket back into the housing and twist clockwise to lock.
• Line up the housing locating pins with the body grommets and push the housing straight in until seated flush.
• Reinstall the two screws using a Phillips #2 screwdriver and tighten snugly. Torque to 2-3 Nm (18-27 in-lbs)

Step 5: Repeat on the passenger-side taillight

• Use the same process: remove two screws with a Phillips #2 screwdriver, pull housing back, twist socket out, replace 3157 bulb, reinstall.

---

✅ After Repair

• Turn the ignition to ON and test: parking lights, brake lights, and turn signals (left and right).
• If a bulb doesn’t work: remove the housing again and make sure the bulb is fully seated and the socket is fully locked.
• Confirm both housings sit flush and don’t wiggle.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$170 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $70-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
