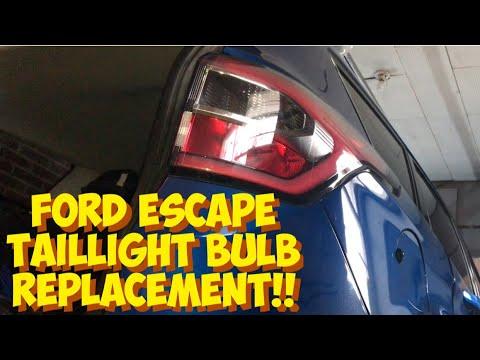

🔧 Escape - Tail Light Bulb Replacement

Replacing both tail light bulbs on your Escape is a beginner-friendly job. You’ll remove each rear lamp assembly, access the bulb sockets from the back, replace the bulbs, and test that the lights work correctly.

Difficulty Level: Beginner | Estimated Time: 20-40 minutes

---

⚠️ Safety & Precautions

• ⚠️ Park on level ground and switch the ignition fully off before starting.
• ⚠️ Do not touch the glass part of new bulbs with bare fingers; oil from your skin can shorten bulb life.
• ⚠️ Be gentle with the tail lamp assembly so you do not crack the lens or break the alignment pins.
• ⚠️ Battery disconnect is not required for this bulb replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch ratchet
• Plastic trim removal tool
• Clean nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear tail light bulbs - Qty: 2

---

📋 Before You Begin

• 🚗 Park your Escape on level ground.
• 🅿️ Shift into Park and apply the parking brake.
• 💡 Turn the exterior lights off.
• 🧤 Put on clean nitrile gloves before handling the new bulbs.
• 📌 A plastic trim removal tool is a non-metal pry tool that helps move trim or lamp housings without scratching paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Liftgate

• Use your hand to open the rear liftgate fully.
• Stand behind your Escape and work on one side at a time.
• Take photos before removing anything.

Step 2: Remove the Tail Lamp Retaining Bolts

• Locate the two visible bolts along the inner edge of the tail lamp, exposed when the liftgate is open.
• Use an 8mm socket and 1/4-inch ratchet to remove the two bolts.
• Set the bolts somewhere safe so they do not roll away.

Step 3: Release the Tail Lamp Assembly

• Hold the tail lamp with both hands and pull it straight rearward, away from the body of your Escape.
• If it feels stuck, use a plastic trim removal tool gently at the outer edge to help release the alignment pins.
• Do not twist the lamp hard. The plastic locating pins can snap.
• Pull straight back, not sideways.

Step 4: Remove the Bulb Socket

• Find the tail light bulb socket on the back of the lamp assembly.
• Use your hand to rotate the socket counterclockwise about a quarter turn.
• Pull the socket straight out of the lamp housing.

Step 5: Replace the Bulb

• Put on clean nitrile gloves.
• Use your hand to pull the old bulb straight out of the socket.
• Push the new rear tail light bulb straight into the socket until fully seated.
• If the bulb does not go in easily, line up the bulb base and try again. Do not force it.

Step 6: Reinstall the Bulb Socket

• Insert the bulb socket back into the rear lamp housing.
• Use your hand to rotate the socket clockwise until it locks in place.
• Make sure the socket sits flat so water cannot enter the lamp.

Step 7: Reinstall the Tail Lamp Assembly

• Line up the lamp’s locating pins with the body openings.
• Push the lamp straight forward until it seats evenly against the body.
• Install the two retaining bolts by hand first to avoid cross-threading.
• Use an 8mm socket and 1/4-inch ratchet to tighten the bolts snugly.
• Torque to 3-4 Nm (27-35 in-lbs)
• Do not overtighten. The lamp housing can crack.

Step 8: Repeat on the Other Side

• Use the 8mm socket and 1/4-inch ratchet to remove the two bolts on the opposite tail lamp.
• Pull the lamp straight rearward by hand.
• Use the plastic trim removal tool only if the lamp is stuck.
• Replace the second rear tail light bulb the same way.
• Reinstall the lamp and tighten the bolts to 3-4 Nm (27-35 in-lbs).

Step 9: Test the Lights

• Use the headlight switch to turn the parking lights on.
• Walk behind your Escape and confirm both tail lights illuminate.
• Press the brake pedal or have a helper press it, then confirm the brighter brake light function works if the same bulb is used.
• Use the turn signal switch to verify rear signal operation if you disturbed any nearby sockets.

---

✅ After Repair

• ✅ Confirm both rear lamps sit flush with the body.
• ✅ Make sure no warning messages appear in the instrument cluster.
• ✅ Check the lights again at night or in shade so weak or non-working bulbs are easier to spot.
• ✅ If a new bulb does not work, remove it and rotate/reseat it in the socket, then test again.

---

💰 DIY vs Shop Cost

Shop Cost: $70-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $60-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
