🔧 Escape - Tail Light Bulb Replacement

Replacing both rear tail light bulbs on your Escape is a beginner-friendly job. The tail lamp assemblies must be loosened from the body so you can access the bulb sockets from the back.

Difficulty Level: Beginner | Estimated Time: 20-40 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off and remove the key before working on the lights.
• ⚠️ Let the bulbs cool if the lights were recently on; small bulbs can get hot.
• ⚠️ Do not pull hard on the lamp wiring. The bulb sockets and harness connectors are plastic.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch drive ratchet
• Plastic trim removal tool
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear tail light bulbs - Qty: 2

---

📋 Before You Begin

• 🚗 Park your Escape on level ground and set the parking brake.
• 💡 Turn the headlamp switch to OFF.
• 🧤 Wear nitrile gloves. This keeps skin oil off the new bulbs and improves grip.
• 📦 Open the liftgate to access the tail lamp retaining screws.
• ℹ️ A bulb socket is the plastic holder that twists into the back of the lamp and powers the bulb.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Liftgate

• Use your hand to fully open the rear liftgate.
• Stand at one rear corner so you can see the inner edge of the tail lamp assembly.
• Put on safety glasses and nitrile gloves.

Step 2: Remove the Tail Lamp Screws

• Use an 8mm socket and 1/4-inch drive ratchet to remove the two tail lamp retaining screws on the inside edge of the lamp.
• Set the screws somewhere safe so they do not roll away.
• Tip: Use a cup for small screws.

Step 3: Pull the Tail Lamp Assembly Rearward

• Use your hands to pull the tail lamp assembly straight rearward, away from the body.
• If it feels stuck, use a plastic trim removal tool at the outer edge to gently help release the locating pins.
• Do not twist the lamp sideways. Pulling straight back prevents breaking the plastic pins.

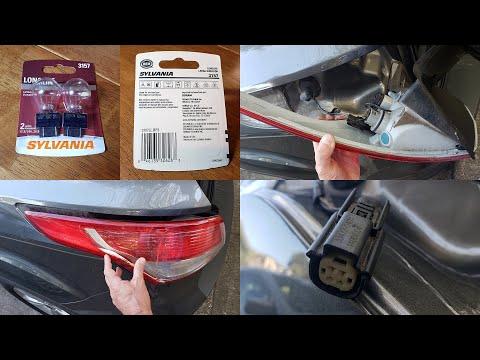

Step 4: Remove the Tail Light Bulb Socket

• Look at the back of the lamp and find the tail light bulb socket.
• Use your hand to rotate the socket counterclockwise about a quarter turn.
• Pull the socket straight out of the lamp housing.

Step 5: Replace the Bulb

• Use your gloved hand to pull the old bulb straight out of the socket.
• Push the new rear tail light bulb straight into the socket until it seats fully.
• Do not force it. If it does not slide in, flip the bulb around and try again.
• Tip: Do not touch bare glass.

Step 6: Reinstall the Bulb Socket

• Use your hand to insert the socket back into the tail lamp housing.
• Rotate the socket clockwise until it locks in place.
• Make sure the socket sits flat so water cannot enter the lamp.

Step 7: Reinstall the Tail Lamp Assembly

• Line up the outer locating pins with the body openings.
• Use your hands to press the lamp straight forward into place.
• Use the 8mm socket and 1/4-inch drive ratchet to reinstall the two retaining screws.
• Tighten snugly by hand only. Do not overtighten plastic lamp screws.
• Torque to 3-4 Nm (27-35 in-lbs)

Step 8: Repeat on the Other Side

• Move to the opposite tail lamp.
• Use the 8mm socket, 1/4-inch drive ratchet, and plastic trim removal tool to repeat the same process.
• Replace the second rear tail light bulb.

---

✅ After Repair

• 💡 Turn the parking lights on and verify both tail lights illuminate.
• 🧍 Have a helper press the brake pedal so you can confirm brake light operation if the bulb is shared with the stop lamp function.
• 🔁 Check turn signals and hazard lights if the lamp assembly was disturbed.
• 🌧️ Make sure each bulb socket is fully locked to help prevent moisture inside the tail lamp.
• 🧾 No scan tool, programming, or infotainment reset is required.

---

💰 DIY vs Shop Cost

Shop Cost: $70-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $60-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
