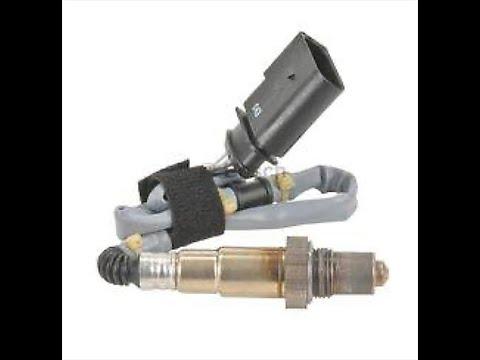

🔧 Oxygen Sensor - Replacement

Replacing both oxygen sensors on your Equinox means changing the upstream sensor and the downstream sensor. The upstream sensor helps the engine control fuel mixture, and the downstream sensor checks catalytic converter performance. On the 1.5L turbo, access can be tight, so plan for patience and a cold exhaust.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before starting. Oxygen sensors sit in hot exhaust parts.
• Disconnect the negative battery cable before unplugging sensors to avoid a fault code or short.
• Do not pull on the sensor wire. Always release the connector first.
• Use care around the turbo and exhaust components. Sharp edges and heat are common.
• If the sensors are rusted in place, use penetrating oil and work them slowly to avoid damaging the exhaust bung.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket, 7/8 in. (22 mm)
• 3/8-inch drive ratchet
• 3/8-inch drive breaker bar
• 3/8-inch extension
• Penetrating oil
• Torque wrench
• Flat-blade trim tool
• Needle-nose pliers
• Jack and jack stands (rated for your vehicle)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1

---

📋 Before You Begin

• Park on level ground.
• Set the parking brake.
• Let the engine and exhaust cool fully.
• Disconnect the negative battery cable.
• Raise the vehicle safely and support it with jack stands if you need access from below.
• Spray rusted sensor threads early.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm wrench to disconnect the negative battery cable.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 2: Raise and secure the vehicle

• Use a jack and jack stands (rated for your vehicle) to lift and support the Equinox.
• Place wheel chocks at the rear wheels if you are working from the front.
• Make sure the vehicle is stable before going underneath.

Step 3: Find the oxygen sensors

• The upstream sensor is in the exhaust path before the catalytic converter.
• The downstream sensor is after the catalytic converter.
• Trace each sensor wire to its connector so you can unplug the right one.

Step 4: Unplug the sensor connectors

• Use a flat-blade trim tool to release any connector locks or retainers.
• Use needle-nose pliers if a clip is tight or hard to reach.
• Unplug both sensor connectors before removing the sensors.

Step 5: Remove the upstream sensor

• Spray the threads with penetrating oil if the sensor is stuck.
• Use an oxygen sensor socket, 7/8 in. (22 mm) with a 3/8-inch ratchet and extension to loosen the sensor.
• Turn counterclockwise until the sensor comes out.
• Work it slowly if corrosion is heavy.

Step 6: Remove the downstream sensor

• Repeat the same process for the downstream sensor.
• Use the oxygen sensor socket, 7/8 in. (22 mm) and breaker bar if extra leverage is needed.
• Remove the sensor carefully so the exhaust threads are not damaged.

Step 7: Install the new upstream sensor

• Compare the new sensor to the old one to confirm the connector and wire length match.
• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket, 7/8 in. (22 mm) to tighten it.
• Torque to 41 N·m (30 lb-ft).

Step 8: Install the new downstream sensor

• Thread the new downstream sensor in by hand first.
• Use the oxygen sensor socket, 7/8 in. (22 mm) to tighten it.
• Torque to 41 N·m (30 lb-ft).

Step 9: Reconnect wiring and battery

• Plug both sensor connectors back in until they click.
• Make sure the wires are clipped away from the exhaust and moving parts.
• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• Start the engine and check for exhaust leaks.
• Make sure the check engine light goes off after a short drive, or scan codes if it stays on.
• Confirm both sensor wires are secure and not touching hot exhaust parts.
• If the light returns, scan for codes and inspect for wiring damage or an exhaust leak.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $230-$490 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
