🔧 QX60 - Headlight Bulb Replacement

Replacing both headlight bulbs is usually a straightforward access job from the front wheel well area, then swapping the bulb in the back of the headlamp housing. Doing both sides at the same time is smart because bulbs age evenly, so the second one often fails soon after the first.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: You mean the low-beam headlight bulbs (left + right).

---

⚠️ Safety & Precautions

• ⚠️ Turn headlights OFF and let the housings cool before touching anything.
• ⚠️ If your QX60 has HID/Xenon low beams, the system can generate high voltage—disconnect the negative battery cable before opening the rear cover.
• ⚠️ Never touch the glass of a halogen bulb or the HID capsule with bare fingers; skin oil can shorten bulb life.
• ⚠️ Support the vehicle with jack stands if you lift it—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive ratchet
• Torque wrench (20-150 ft-lb range)
• Trim clip remover
• Phillips screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low-beam headlight bulbs (halogen type) - Replace in pairs - Qty: 2
• Low-beam HID/Xenon capsules (HID type) - Replace in pairs - Qty: 2
• Plastic fender-liner clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires.
• If you’ll lift the front: slightly loosen the front wheel lug nuts first (while the tire is still on the ground).
• If your low beams are HID/Xenon: use a 10mm wrench equivalent is common, but since you’re not listed for it here, disconnect using the factory quick-access method only if equipped; otherwise leave battery connected and do not open the igniter. If unsure, treat as HID and disconnect at the negative terminal with the proper tool.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get access to the back of the headlight (one side)

• Turn the steering wheel fully away from the side you’re working on (this opens space at the fender liner).
• If access is tight, lift that front corner using a floor jack (rated 2-ton minimum) and support it with jack stands (rated 2-ton minimum).
• If you remove the wheel: use a 21mm socket and 1/2" drive ratchet to remove lug nuts, then reinstall later and Torque to 113 Nm (83 ft-lb).
• Use a trim clip remover and Phillips screwdriver to remove a few fender-liner clips/screws near the headlamp area, then gently peel the liner back.

Step 2: Identify your low-beam bulb type (Halogen vs HID)

• Use a flashlight to find the low-beam access area at the back of the headlamp housing.
• Halogen usually has a simple twist-lock bulb with a plug.
• HID/Xenon usually has a larger base/igniter area (an “igniter” is the part that fires the HID light).
• Match the new bulb to the old one.

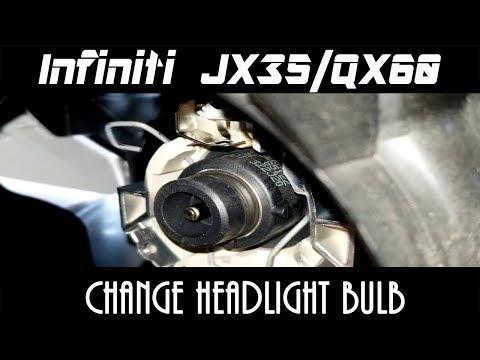

Step 3: Remove the old low-beam bulb

• Wear nitrile gloves and safety glasses.
• Disconnect the electrical connector by pressing the tab and pulling straight back (do not yank on the wires).
• Rotate the bulb counterclockwise to unlock it, then pull it straight out.
• If it’s HID: handle the capsule carefully and keep it clean and dry.

Step 4: Install the new low-beam bulb

• Without touching the glass, insert the new bulb into the housing in the same orientation as the old one.
• Rotate clockwise until it locks fully in place (it should feel solid and seated).
• Reconnect the electrical connector until it clicks.
• If you touched the glass, clean with alcohol.

Step 5: Quick function test (before reassembly)

• Turn the headlights ON and confirm the low beam works on that side.
• If it doesn’t light: turn lights OFF, re-check the connector is fully seated, and confirm the bulb is locked in.

Step 6: Reassemble the fender liner and repeat on the other side

• Reposition the liner and reinstall clips/screws using the trim clip remover and Phillips screwdriver.
• Repeat Steps 1-5 on the opposite headlight.

---

✅ After Repair

• Turn headlights ON and verify both low beams work and look evenly bright.
• Check that the fender liner is secure and not rubbing the tire.
• If you removed wheels, re-check lug nut torque after a short drive: Torque to 113 Nm (83 ft-lb).

---

💰 DIY vs Shop Cost

Shop Cost: $150-$450 (parts + labor, higher if HID)

DIY Cost: $30-$220 (parts only, depends on halogen vs HID)

You Save: $120-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
