🔧 Corolla - Headlight Assembly Replacement (LED low/high beams)

On your Corolla SE, the main low and high beams are built into a sealed LED headlight assembly. Toyota does not use removable “bulbs” for these, so to fix a dim or failed main headlight, you replace the whole headlight assembly on that side.

This guide walks you through removing the front bumper cover enough to swap the headlight assembly, which is how you effectively “replace both headlight bulbs” on your car.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cool engine; hot parts and plastic can burn or warp.
• ⚠️ Set the parking brake and keep the car in Park so it cannot roll.
• ⚠️ You will be releasing and handling fragile plastic clips; forcing them can crack the bumper or headlight brackets.
• ⚠️ Disconnect the negative battery terminal before unplugging headlight connectors to avoid short circuits.
• ⚠️ Do not touch any LED modules or internal wiring inside the headlight; the unit is sealed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 8mm socket
• 🧰 1/4" drive ratchet
• 🧰 1/4" drive extension (3–6")
• 🧰 Phillips #2 screwdriver
• 🧰 Flathead screwdriver (small)
• 🧰 Trim clip removal tool (specialty) – a forked tool for popping plastic clips.
• 🧰 Plastic pry tool set (specialty) – plastic levers that help separate trim without scratching paint.
• 🧰 Torque wrench (inch-lb and ft-lb, 5–30 ft-lb range)
• 🧰 Fender covers or thick towels
• 🧰 Work light or headlamp
• 🧰 Mechanic gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Left LED headlight assembly (driver side) - Qty: 1
• 🔩 Right LED headlight assembly (passenger side) - Qty: 1
• 🔩 Front bumper cover plastic push clips - Qty: 10–15 recommended to have spares
• 🔩 Front fender liner clips - Qty: 6–10
• 🔩 Dielectric grease for electrical connectors - Qty: small tube

---

📋 Before You Begin

• Park the Corolla on level ground, set the parking brake, and turn the ignition OFF.
• Open the hood and support it with the hood prop securely.
• Disconnect the negative (black) battery cable using a 10mm socket. Move it aside so it cannot spring back.
• Lay fender covers or towels over the top front edges of the fenders to protect the paint when moving the bumper cover.
• Have small containers ready to keep screws and clips from each area separate.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove top radiator cover clips

• Open the hood fully and locate the black plastic cover over the radiator support (top front of the engine bay).
• Use the trim clip removal tool or flathead screwdriver to gently pry up the center pins of the plastic push clips, then pull the clips out.
• Remove all clips holding the cover, then lift the cover off and set aside.
• Twist the tool, do not yank straight up.

Step 2: Remove top bumper mounting bolts

• With the radiator cover removed, look along the upper edge of the bumper cover where it meets the metal core support.
• Use a 10mm socket and ratchet to remove the bolts along the top edge of the bumper cover.
• Store these bolts separately; you will reuse them.
• Loosen bolts first, then remove by hand.

Step 3: Loosen front fender liner (both sides)

• Turn the front wheels to the left to access the right fender liner, then to the right to access the left fender liner, or jack slightly if needed for space.
• In front of each front wheel, locate the plastic clips and/or screws where the fender liner meets the front bumper edge.
• Use the Phillips #2 screwdriver (for screw-type clips) and trim clip removal tool to remove 2–4 fasteners on each side so the front part of the liner can flex away.
• Gently pull the front edge of the liner back to expose bolts inside the bumper–fender joint.

Step 4: Remove side bumper bolts at fender (both sides)

• Behind the loosened fender liner on each side, locate the small bolt that secures the corner of the bumper cover to the fender.
• Use an 8mm socket and ratchet with an extension to remove this bolt on each side.
• Keep track of left and right; they are usually the same but store them safely.
• Do not pull the bumper corner hard; there are clips.

Step 5: Remove lower bumper fasteners

• Lie down in front of the car and look under the bumper.
• Locate the screws and clips that attach the bottom of the bumper cover to the lower splash shield and undertray.
• Use the Phillips #2 screwdriver and trim clip removal tool to remove all fasteners along the lower front edge.
• Support the bumper with your knee or a box so it does not droop suddenly.

Step 6: Release bumper cover from fenders

• At each front corner where the bumper meets the fender, there is a plastic “slide-in” clip.
• Starting at one corner, place your fingers behind the bumper edge and gently pull outward and slightly forward to release it from the clip.
• Repeat on the other side. Use a plastic pry tool if the clip is stubborn, prying gently between bumper and fender.
• Pull in short, gentle motions, not one big yank.

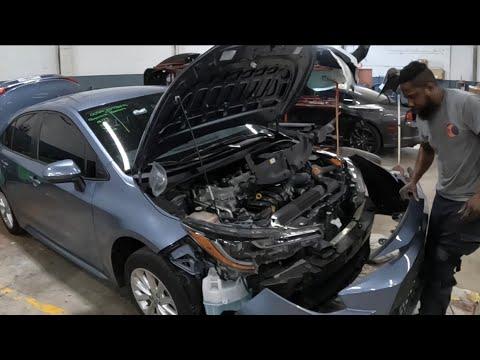

Step 7: Partially remove and support the bumper cover

• With all fasteners removed and corners unclipped, stand in front of the car and carefully pull the bumper cover forward.
• Do not pull it far yet; there are fog light and sensor connectors behind it on some models.
• Have a helper hold the bumper, or rest it on a padded box or stool.
• If fog lights or sensors are attached, unplug their connectors by pressing the locking tab and pulling the connector off by hand.

Step 8: Fully remove or safely rest the bumper cover

• If all connectors are unplugged, lift the bumper cover away from the car and set it face-up on a blanket to avoid scratching the paint.
• If you prefer, you can leave it hanging slightly forward on one side supported by boxes, as long as there is no strain on the plastic.
• Face the painted side up on a soft surface.

Step 9: Access and unplug the headlight assembly

• With the bumper out of the way, you can see the headlight assemblies clearly on each side.
• Locate the main electrical connector at the back of each headlight housing.
• Press the locking tab on the connector and gently pull the connector straight back by hand to unplug it.
• If tight, you can use a small flathead screwdriver to press the tab, but do not pry on the plastic housing.

Step 10: Remove headlight mounting bolts (one side at a time)

• Each headlight is held by several bolts along the top, side, and bottom.
• Use a 10mm socket and ratchet to remove the top mounting bolts first.
• Then remove the side and lower bolts; some may require a 1/4" drive extension to reach.
• As you remove the last bolt, support the headlight with your free hand so it does not drop.
• Tightening torque on reassembly: 7–9 Nm (62–80 in-lb) for headlight mounting bolts.

Step 11: Remove the old headlight assembly

• With all bolts removed and connector unplugged, gently slide the headlight assembly forward and out of the fender opening.
• Be careful not to scrape the lens against the bumper mounting area or fender.
• Set the old assembly aside; avoid opening or tampering with any internal LED modules.

Step 12: Install the new headlight assembly

• Position the new headlight assembly into place, guiding the locator pins into the correct holes.
• Start all the 10mm bolts by hand to avoid cross-threading.
• Once all bolts are threaded in by hand, use the 10mm socket and ratchet to snug them evenly.
• Finish with a torque wrench, tightening each headlight mounting bolt to 7–9 Nm (62–80 in-lb).
• Tighten until snug; do not over-crush plastic.

Step 13: Reconnect the headlight electrical connector

• Put a tiny amount of dielectric grease on the connector seal if you have it.
• Push the connector straight onto the headlight socket until you hear or feel a click.
• Gently tug on the connector to confirm it is locked in place.

Step 14: Repeat for the other side

• Perform Steps 9–13 for the headlight on the other side.
• Verify both new assemblies are bolted and plugged in before reinstalling the bumper.

Step 15: Reinstall the bumper cover

• Lift the bumper cover and position it in front of the car.
• If you have fog lights or sensors, reconnect their electrical connectors until they click.
• Align the bumper with the front of the headlights and the fender edges.
• Slide each bumper corner into the side clips at the fenders by pushing inward and slightly back until they snap in.

Step 16: Reinstall lower and side fasteners

• Under the bumper, reinstall all screws and clips using the Phillips #2 screwdriver and trim clip removal tool.
• At each fender liner, reinstall the 8mm bolts using the 8mm socket and extension, then refit and fasten the liners with their clips and screws.
• Tightening torque for small bumper bolts: 5–7 Nm (44–62 in-lb).

Step 17: Reinstall top bumper bolts and radiator cover

• Along the top edge of the bumper, reinstall the 10mm bolts and tighten them with a 10mm socket.
• Tighten to 5–7 Nm (44–62 in-lb) – just snug.
• Place the radiator cover back over the core support and align all clip holes.
• Push the plastic clips back in: outer body first, then press the center pin down to lock.

Step 18: Reconnect the battery

• Reconnect the negative (black) battery cable to the battery post.
• Use a 10mm socket to tighten the terminal nut until snug.
• Tighten to about 5 Nm (44 in-lb) – do not over-tighten.

---

✅ After Repair

• Turn the ignition ON and switch the headlights to low beam and then high beam. Confirm both sides light up correctly.
• Turn on the hazard lights and fog lights (if equipped) to make sure no connectors were left unplugged.
• At night or against a wall, check that both beams are level and similar in height. If one side is obviously higher or lower, the headlight aim may need adjustment.
• Listen for any rattles from the front bumper area while driving slowly over bumps; recheck any loose clips or bolts if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $900–$1,400 (both LED headlight assemblies + labor)

DIY Cost: $500–$900 (both LED headlight assemblies + clips)

You Save: $400–$500 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
