🔧 Rogue - Headlight (LED Assembly) Replacement

On your Rogue, the headlight “bulbs” are built into a sealed LED headlight assembly and are not designed to be replaced separately. When a headlight fails, Nissan’s procedure is to replace the entire headlight assembly on that side.

This guide walks you through replacing both headlight assemblies, which restores both low and high beams.

Difficulty Level: Advanced | Estimated Time: 3–4 hours

---

⚠️ Safety & Precautions

• ⚠️ Park on a flat surface, engage the parking brake, and keep the transmission in P.
• ⚠️ Turn the ignition OFF and remove the key (or turn the start button OFF and open the driver door once).
• ⚠️ Disconnect the negative battery terminal before unplugging headlight connectors to avoid short circuits.
• ⚠️ Use jack stands if you raise the front; never rely only on a floor jack.
• ⚠️ Plastic clips and bumper tabs are easy to break; use gentle pressure and the correct trim tool.
• ⚠️ Avoid touching LED heat sinks or circuit boards; handle the headlight by its housing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ Ratchet handle 3/8"
• 🛠️ 3/8" drive extension 3"
• 🛠️ Phillips #2 screwdriver
• 🛠️ Flathead screwdriver small
• 🛠️ Plastic trim removal tool set (specialty)
• 🛠️ Needle-nose pliers
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum) - Qty: 2
• 🛠️ Wheel chocks
• 🛠️ Work light or headlamp
• 🛠️ Torque wrench 3/8" drive
• 🛠️ Fender cover or clean blanket
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Left front LED headlight assembly (driver side) - Qty: 1
• 🔩 Right front LED headlight assembly (passenger side) - Qty: 1
• 🔩 Front bumper cover plastic clips - Qty: 10–15 have spares; they often break
• 🔩 Upper radiator grille clips - Qty: 4–6
• 🔩 Fender liner plastic clips - Qty: 10–12
• 🔩 Dielectric grease (electrical contact grease) - Qty: small tube

---

📋 Before You Begin

• Park the Rogue on level ground, wheels straight, parking brake ON.
• Chock the rear wheels so the vehicle cannot roll.
• Open the hood and support it with the hood prop rod.
• Disconnect the battery:
  • Use a 10mm socket to loosen the negative terminal clamp.
  • Lift the negative cable off and tuck it aside so it cannot touch the post.
• If needed for access, raise the front slightly:
  • Use the floor jack at the front jacking point.
  • Support with jack stands under the pinch welds or frame points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove upper radiator cover and clips

• Put on your safety glasses and mechanic gloves.
• Open the hood fully and secure it.
• Use the plastic trim removal tool to gently pry up the plastic push-clips along the top plastic radiator cover (just behind the grille).
• Remove all clips, then lift the plastic cover off and set it aside.
• Twist clips gently to avoid snapping heads

Step 2: Loosen front wheel well liners at the bumper

• Turn the steering wheel fully left to access the right side liner.
• Use a Phillips #2 screwdriver to remove any small screws at the edge where the bumper meets the liner.
• Use the plastic trim removal tool to pop out the plastic clips holding the liner to the bumper edge.
• Gently pull the liner back to expose the bolts and clips behind the bumper corner.
• Turn the steering fully right and repeat on the left side.

Step 3: Remove lower bumper fasteners

• If you raised the front, slide under with a work light.
• Use the Phillips #2 screwdriver and plastic trim tool to remove the screws and clips along the lower edge of the bumper where it meets the splash shield.
• Keep all screws and clips in a small container so they are not lost.
• Take a quick photo so reassembly is easier

Step 4: Release bumper from fenders

• At each front corner, where the bumper meets the fender, look for a small bolt or screw accessible behind the loosened liner.
• Use a 10mm socket and ratchet to remove any 10mm bolts securing the bumper to the fender brackets.
• Using the plastic trim tool, carefully pop the bumper tabs out of the fender clips by pulling the bumper corner outward and slightly forward.
• Pull slowly; the tabs can crack if yanked

Step 5: Remove upper bumper/grille fasteners

• Along the top of the grille (now exposed after removing the radiator cover), use the 10mm socket and ratchet to remove the bolts securing the bumper/grille to the radiator support.
• Use the plastic trim tool to remove any remaining push-clips along the top edge.

Step 6: Disconnect bumper electrical connectors

• With a helper if possible, gently pull the bumper forward a few inches from the front of the Rogue.
• Locate any wiring connectors for fog lights, parking sensors, or front radar (if equipped) behind the bumper.
• Press the locking tabs on each connector and pull them apart by hand. Use needle-nose pliers only if the tab is stuck—do not crush the plastic.
• Once all connectors are unplugged, carefully remove the entire bumper cover and place it on a blanket or fender cover face-up to avoid scratching the paint.

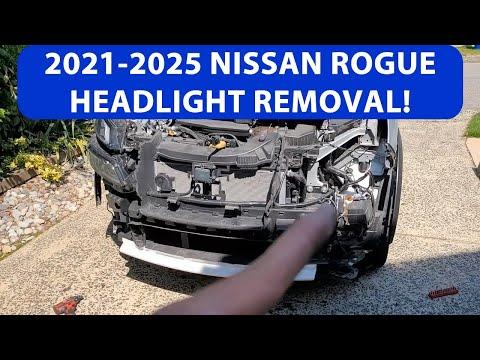

Step 7: Remove the old headlight assemblies

• Each headlight is held by several bolts on top, side, and bottom.
• Use the 10mm socket, extension, and ratchet to remove the upper headlight mounting bolts first.
• Remove the side and lower bolts (some may be slightly hidden; use the work light to see clearly).
• Gently pull the headlight forward a bit to access the rear wiring connector.
• Press the lock on the main headlight connector and disconnect it by hand. If tight, wiggle while pulling, but do not pry with metal tools.
• Remove the headlight assembly fully from the vehicle.
• Do one side at a time to copy the original fit

Step 8: Install the new headlight assemblies

• Compare the new headlight with the old one to ensure they match (mounting points, connector, shape).
• Apply a small amount of dielectric grease to the headlight connector pins.
• Plug the vehicle harness into the new headlight until it clicks.
• Carefully position the headlight into place, making sure all alignment pegs and tabs sit correctly in their holes and guides.
• Install the headlight mounting bolts by hand first with the 10mm socket to avoid cross-threading.
• Use the ratchet to snug them, then use a torque wrench with the 10mm socket and tighten each bolt to about 7–9 Nm (62–80 in-lbs). Do not overtighten; the housing is plastic.
• Repeat for the other side headlight.

Step 9: Reinstall the front bumper cover

• With a helper, lift the bumper cover and bring it close to the vehicle.
• Reconnect all bumper electrical connectors (fog lights, sensors, etc.) by hand until they click.
• Carefully align the bumper with the front of the Rogue, guiding the top edge under the headlight lips and onto the radiator support.
• Push the bumper corners into the fender clips until they snap in.
• Install the upper bumper/grille bolts using the 10mm socket and ratchet and tighten to about 5–7 Nm (44–62 in-lbs).

Step 10: Reinstall lower and side fasteners

• Under the front, reinstall the screws and clips along the bumper’s lower edge using the Phillips #2 screwdriver and plastic trim tool.
• At each wheel well, reinstall the bolts/screws and clips that secure the bumper to the fender liner using the Phillips #2 screwdriver and trim tool.
• Make sure the liner sits over the bumper lip correctly to prevent rubbing noises.

Step 11: Reinstall the upper radiator cover

• Place the plastic radiator cover back over the top of the grille and radiator support.
• Align the holes, then push in the plastic clips by hand; if needed, use the plastic trim tool gently to seat them fully.

Step 12: Reconnect the battery and test

• Reconnect the negative battery cable onto the battery post.
• Use the 10mm socket and ratchet to snug the clamp. Do not overtighten, just firm.
• Start the Rogue and turn the headlight switch to ON.
• Check low beams, high beams (flash and steady), turn signals, and any DRLs to confirm both new headlights function correctly.
• Turn the steering fully left and right to confirm nothing rubs inside the wheel wells.

---

✅ After Repair

• Verify the headlight beams are aimed correctly by parking about 7.5 m (25 ft) from a wall at night and checking that both beams are even and not pointing too high.
• If the beams look off, the headlight assemblies have manual adjusters; small adjustments can be made with a screwdriver, but major aiming is best done at a shop with proper equipment.
• Confirm all bumper gaps are even and the bumper is fully clipped into the fenders and underbody.
• Take a short night drive to confirm visibility and ensure no warning lights appear on the dash.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000–$1,600 (parts + labor for both sides)

DIY Cost: $600–$1,200 (parts only, both assemblies)

You Save: $400–$500+ by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop about 2–3 hours.

---
