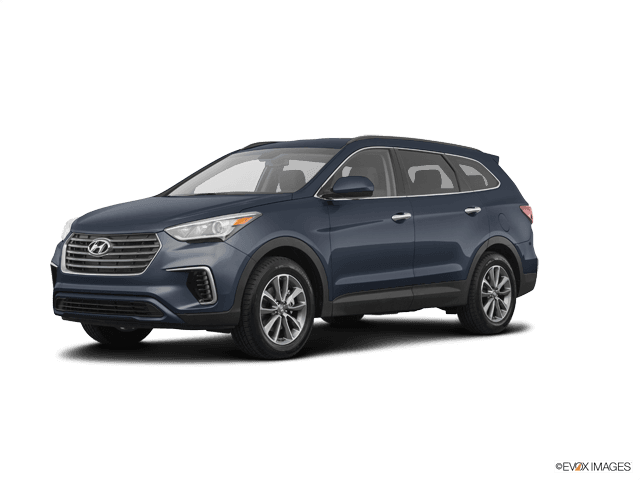

🔧 Santa Fe XL - Headlight Bulb Replacement

On your Santa Fe XL, the bulb replacement steps depend on which headlight function you’re changing (low beam vs high beam) and whether you have halogen bulbs or HID (xenon) bulbs. I’ll show you how to confirm what you have, then swap both sides the same way.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Quick question (pick one): Are you replacing the low beams (normal night driving) or the high beams (brights)? If you’re not sure, tell me what the bulb is labeled when you remove it (example: H11, 9005, D3S, etc.).

---

⚠️ Safety & Precautions

• ⚠️ Turn the headlight switch OFF and remove the key before starting.
• ⚠️ Let the headlights cool down for 10+ minutes; bulbs get very hot.
• ⚠️ Do not touch the new bulb glass with bare fingers; skin oil shortens bulb life.
• ⚠️ If your bulbs are HID (xenon), disconnect the battery negative terminal first; HID systems can generate high voltage.
• ⚠️ Support the hood securely and keep tools away from the radiator fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip remover
• Small flathead screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Headlight bulb (match the type printed on your old bulb) - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and use a flashlight to locate the rear of each headlight housing.
• If you confirm you have HID (xenon): disconnect the negative battery terminal using a 10mm socket; when reinstalling, Torque to 5 Nm (44 in-lbs).
• Tip: Take a photo before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which bulb you’re replacing

• Use a flashlight and look behind the headlight housing for the bulb access area.
• Identify whether there’s a round dust cover (common with halogen) or a larger module/igniter area (common with HID).
• If needed, remove the bulb first and read the bulb code printed on it (example: H11 / 9005 / D3S) so you buy the exact match.

Step 2: Make room to reach the bulb (if needed)

• If access is tight, remove any nearby intake snorkel/upper covers using a trim clip remover and/or 10mm socket.
• Use a small flathead screwdriver only to gently pop plastic clips if they’re stubborn.
• Tip: Don’t force clips; they break easily.

Step 3: Open the bulb access (rear of headlight)

• If equipped, remove the rear dust cover by turning it counterclockwise by hand (use nitrile gloves for grip).
• Set the cover aside where it won’t get dirty.

Step 4: Disconnect the electrical connector

• Press the connector lock tab and pull the connector straight off the bulb.
• If it’s stuck, gently help the tab with a small flathead screwdriver while pulling.

Step 5: Remove the old bulb

• For most twist-lock bulbs: rotate the bulb counterclockwise about 1/8 turn, then pull it straight out.
• For bulbs with a retaining clip (less common): release the clip and swing it away, then remove the bulb.
• Use a flashlight to confirm the bulb’s alignment tabs before pulling.

Step 6: Install the new bulb (do not touch the glass)

• Put on nitrile gloves before handling the new bulb.
• Align the bulb’s tabs with the housing slots, then insert fully and rotate clockwise to lock.
• Apply a very thin film of dielectric grease to the connector seal (not on the bulb glass or terminals).

Step 7: Reconnect and re-seal the headlight

• Push the connector on until it clicks/locks.
• Reinstall the dust cover by turning clockwise until fully seated.
• Reinstall any covers/ducting you removed using the 10mm socket, 1/4" drive ratchet, and 6" extension.

Step 8: Repeat on the other side

• Repeat Steps 2-7 for the second headlight so both sides match brightness and color.

---

✅ After Repair

• Turn the headlights ON and confirm the replaced bulbs light up on both sides.
• Test high beams and low beams (even if you replaced only one type) to confirm nothing else was unplugged.
• If you disconnected the battery for HID: tighten the negative terminal and confirm no warning lights remain.
• At night, check aim on a flat wall; if the beam looks uneven, tell me and I’ll walk you through aiming checks for your Santa Fe XL.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$300 (parts + labor)

DIY Cost: $30-$180 (parts only)

You Save: $90-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
