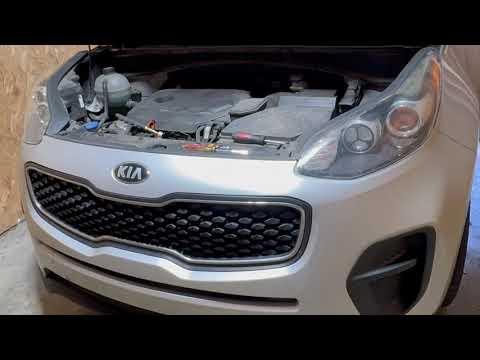

🔧 Sportage - Headlight Bulb Replacement

On your Sportage, the bulb replacement procedure depends on which headlamp system you have (halogen vs HID/LED) and which bulb you’re replacing (low beam vs high beam). Some Sportage headlamps use LED modules that are not serviced as a “bulb” and require headlamp assembly replacement.

Difficulty Level: Beginner–Intermediate | Estimated Time: 0.5–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn lights OFF and let the headlamp cool before touching anything.
• ⚠️ Do not touch the glass of a halogen bulb with bare fingers (oil can shorten bulb life). Use clean gloves.
• ⚠️ If your Sportage has HID (xenon): high voltage is present; keep ignition OFF and do not unplug the ballast with power on.
• ⚠️ If you must raise the vehicle or remove parts for access, support it with jack stands on level ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip removal tool
• Ratchet
• 10mm socket
• Short Phillips screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Headlight bulb(s) - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the headlight switch to OFF and remove the key/fob from the vehicle.
• Open the hood and locate the rear of each headlamp housing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which bulb you’re replacing

• Turn the lights on briefly to verify what’s out: low beam vs high beam vs turn signal/parking light, then turn them back OFF.
• Use a flashlight to look behind the headlamp for a bulb label/marking on the housing or dust cap.

Step 2: Check if your headlamp is bulb-serviceable

• At the rear of the headlamp, look for a round removable dust cap and a plug going into it.
• If there is no removable cap and you see a sealed LED module/heat sink, your Sportage likely uses a non-serviceable LED unit (assembly-level repair).

Step 3: Create access (if needed)

• If your hands don’t fit, remove the intake duct / nearby covers using a 10mm socket and ratchet, and any push-clips using a trim clip removal tool.
• If access is still blocked, you may need to loosen the front portion of the wheel-liner: chock wheels with wheel chocks, raise one front corner with a floor jack (rated 3-ton minimum), support with jack stands (rated 3-ton minimum), then remove liner clips/screws with a trim clip removal tool and short Phillips screwdriver.

Step 4: Remove the bulb connector and dust cap

• Put on nitrile gloves and safety glasses.
• Disconnect the electrical connector by pressing the lock tab and pulling straight back (use a flashlight to see the tab).
• Remove the rear dust cap by twisting it counterclockwise by hand.

Step 5: Remove the old bulb

• Depending on your headlamp, the bulb may be held by a twist-lock base or a spring clip.
• If it’s twist-lock: rotate the bulb base counterclockwise by hand and pull it out.
• If it’s spring-clip: release the clip and swing it away, then remove the bulb.
• Take a quick photo for orientation.

Step 6: Install the new bulb

• Match the new bulb to the old bulb’s type/markings before installing.
• Install the new bulb in the same orientation as the old one (do not force it).
• Lock it in place (twist-lock clockwise or re-secure the spring clip).
• Reinstall the dust cap (hand-tight) and reconnect the electrical connector until it clicks.

Step 7: Repeat on the other side

• Repeat Steps 3–6 for the other headlamp.
• Reinstall any ducts, covers, and clips using a 10mm socket and ratchet.

---

✅ After Repair

• Turn headlights ON and verify both sides work in the correct mode (low/high).
• Check that dust caps are fully seated to prevent moisture inside the headlamp.
• If a bulb still doesn’t work, recheck the connector seating and confirm the bulb type matches the housing.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$300 (parts + labor)

DIY Cost: $30-$180 (parts only)

You Save: $90-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
