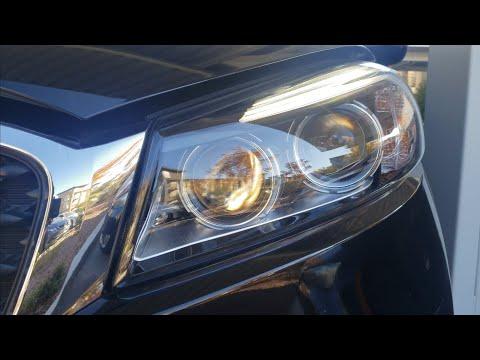

🔧 Sorento - Headlight Bulb Replacement

Replacing the headlight bulbs on your Sorento is usually done from inside the engine bay (or sometimes through the front wheel-well). The key is using the correct bulb type and not touching the bulb glass with your fingers.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

Assumption: “Headlight bulbs” = low-beam bulbs on both left and right sides; I also included the common high-beam path in case that’s what you meant.

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and let the headlamp area cool before touching anything.
• ⚠️ If equipped with HID (xenon) low beams, the system can generate high voltage—disconnect the battery negative cable before opening the dust cover.
• ⚠️ Do not touch halogen/HID bulb glass with bare fingers; skin oil can shorten bulb life.
• ⚠️ Support the vehicle safely if you access bulbs through the wheel-well (use jack stands).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" drive ratchet
• Phillips #2 screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Flashlight
• Nitrile gloves
• Safety glasses
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low-beam headlight bulbs - Replace in pairs - Qty: 2
• High-beam headlight bulbs - Replace in pairs - Qty: 2
• Plastic push clips (wheel liner) - Qty: 2-6

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔦 Open the hood and use a flashlight to locate the rear of each headlamp housing.
• 🔋 If your Sorento has HID low beams, disconnect the battery negative cable using a 10mm socket.
• 🧤 Put on nitrile gloves to keep oils off the bulbs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which bulb you’re replacing (low vs high beam)

• Use a flashlight to look behind the headlamp for two rear access areas (often one for low beam and one for high beam).
• If access is too tight from the engine bay, you’ll use the wheel-well access method in Step 5.

Step 2: Remove the rear dust cover (if equipped)

• Reach behind the headlamp and twist the round plastic dust cover counterclockwise by hand.
• If it’s stuck, use nitrile gloves for more grip and turn steadily. Don’t pry on the lens.

Step 3: Disconnect the bulb electrical connector

• Press the connector tab and pull straight back by hand.
• If the tab is hard to press, use needle-nose pliers gently on the tab only (do not crush the connector body).

Step 4A: Replace LOW BEAM bulb (common on SX: HID xenon)

• If you see a metal retaining ring or twist-lock base, unlock it by turning counterclockwise by hand.
• Carefully remove the old HID bulb straight out.
• Install the new HID bulb in the same orientation (it only seats one way). Do not touch the glass.
• Lock the retaining ring by turning clockwise by hand until fully seated.
• Reconnect the electrical connector by pushing it on until it clicks.

Step 4B: Replace LOW BEAM bulb (if your Sorento uses halogen)

• Twist the bulb base counterclockwise by hand and pull the bulb out.
• Install the new halogen bulb (same orientation), then twist clockwise to lock.
• Reconnect the electrical connector by pushing it on until it clicks.

Step 4C: Replace HIGH BEAM bulb (typical halogen)

• Twist the high-beam bulb base counterclockwise by hand and remove it.
• Install the new halogen bulb and twist clockwise to lock.
• Reconnect the electrical connector until it clicks.

Step 5: Wheel-well access method (only if you can’t reach from above)

• Place wheel chocks behind the rear wheels.
• Lift the front corner with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Turn the steering wheel away from the side you’re working on to create more space.
• Remove the wheel-liner fasteners using a Phillips #2 screwdriver, 10mm socket, and trim clip removal tool.
• Pull the liner back just enough to reach the rear of the headlamp. (The “wheel liner” is the plastic inner fender panel.)
• Repeat Steps 2–4 to replace the bulb, then reinstall all fasteners.

Step 6: Reinstall dust covers and reassemble

• Reinstall the dust cover by turning clockwise by hand until fully seated (keeps moisture out).
• If removed, reinstall any air ducting/covers using a 10mm socket and 1/4" drive ratchet.

Step 7: Repeat on the other headlight

• Replace the bulb on the opposite side using the same method.
• Always replace bulbs in pairs for matching color.

---

✅ After Repair

• 🔋 If disconnected, reconnect the battery negative cable using a 10mm socket (snug—do not overtighten).
• 💡 Turn the headlights ON and verify low beams and high beams work on both sides.
• 🔎 Check that dust covers are fully seated to prevent fogging/condensation inside the headlamp.
• 🚗 At night, confirm beam pattern looks even; if one side looks off, the bulb may not be fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$350 (parts + labor)

DIY Cost: $30-$240 (parts only, depends on halogen vs HID)

You Save: $90-$110+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
