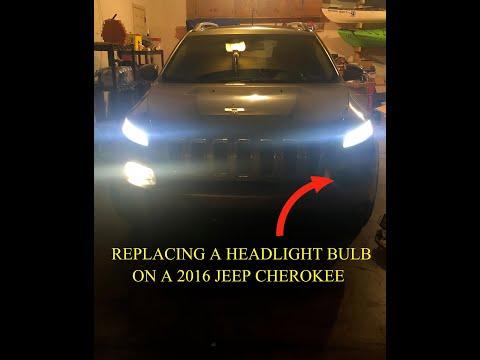

🔧 Cherokee - Headlight Bulb Replacement

You’ll replace the left and right headlight bulbs by accessing the back of each headlamp through the front wheel-well liner. This is common on your Cherokee because the bulbs sit behind the headlamp housing with limited under-hood access.

Assumption: Your Cherokee uses halogen low-beam bulbs (common on this trim). If yours has factory HID/LED, the access is similar but the bulb/module style differs.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the headlight switch OFF and remove the key before starting.
• ⚠️ Let the bulbs cool for at least 10 minutes; hot bulbs can burn you.
• ⚠️ Do not touch the new bulb glass with bare fingers; skin oil can shorten bulb life.
• ⚠️ If you raise the vehicle, support it with jack stands; never rely on a jack alone.
• ⚠️ Battery disconnect is not required for standard halogen bulb replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim clip removal tool
• 7mm socket
• 1/4" drive ratchet
• 6" socket extension
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low beam headlight bulb - Qty: 2
• Front fender liner push clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Turn the steering wheel to give access: full left for the right bulb, full right for the left bulb.
• Tip: Do one side at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open up wheel-well access

• Turn the steering wheel to create space at the front of the wheel well.
• Use a trim clip removal tool to pop out the plastic push clips along the front edge of the fender liner.
• Use a 7mm socket with a 1/4" drive ratchet and 6" socket extension to remove the small liner screws (if equipped).
• Pull the front portion of the liner back enough to reach the rear of the headlamp.
• Torque to 2 Nm (18 in-lbs) for the small liner screws during reassembly.
• Tip: A flashlight makes this much easier.

Step 2: Remove the dust cap (if equipped)

• Behind the headlamp, locate the round plastic dust cap on the low-beam bulb area.
• Remove it by turning it counterclockwise by hand (use nitrile gloves for grip).

Step 3: Remove the old bulb

• Find the bulb base and wiring connector.
• Press the connector tab and pull the connector straight off the bulb (use nitrile gloves).
• Rotate the bulb counterclockwise about a quarter turn and pull it straight out.
• Tip: Don’t force it; it should unlock smoothly.

Step 4: Install the new bulb

• Put on nitrile gloves so you don’t touch the glass.
• Line up the bulb tabs with the housing slots and insert the bulb fully.
• Rotate the bulb clockwise to lock it in place.
• Reconnect the wiring connector until it clicks.
• If you accidentally touch the glass, wipe it with a clean alcohol wipe and let it dry.

Step 5: Reinstall the dust cap and fender liner

• Reinstall the dust cap (turn clockwise by hand until snug).
• Push the fender liner back into position.
• Reinstall liner screws using a 7mm socket, 1/4" drive ratchet, and 6" socket extension.
• Reinstall the push clips with the trim clip removal tool (use it to press them in squarely).
• Torque to 2 Nm (18 in-lbs) for the small liner screws.

Step 6: Repeat on the other side

• Turn the steering wheel the opposite direction and repeat Steps 1-5 for the other headlight bulb.

---

✅ After Repair

• Turn the headlights on and verify both low beams work.
• Check that the dust caps are fully seated to keep moisture out of the headlamp.
• At night, confirm both beams look even on a wall; if one looks off, the bulb may not be fully locked.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$260 (parts + labor)

DIY Cost: $30-$120 (parts only)

You Save: $90-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
