🔧 Soul - Headlight Bulb Replacement

You’ll replace the left and right headlight bulbs from under the hood. On your Soul, the bulbs lock into the back of the headlight housing with a twist-lock, so no bumper removal is normally needed.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: your Soul uses halogen dual-beam H13/9008 bulbs (most Base models).

---

⚠️ Safety & Precautions

• ⚠️ Let headlights cool fully before touching the housing or bulb.
• ⚠️ Turn the ignition OFF and remove the key before starting.
• ⚠️ Do not touch the bulb glass with bare fingers; skin oils can shorten bulb life.
• ⚠️ If you disconnect the battery, you may lose radio presets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• 10mm socket
• 1/4" drive ratchet
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Headlight bulb (halogen H13/9008) - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift into 1st gear, and set the parking brake.
• Open the hood and support it securely.
• If you need extra hand room, remove the negative battery terminal using a 10mm socket and 1/4" drive ratchet.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the back of the headlight housing

• Open the hood and locate the back of each headlight assembly (left and right).
• Use a flashlight to spot the bulb connector and the round rear dust cap (if equipped).

Step 2: Remove the dust cap (if equipped)

• Put on nitrile gloves and safety glasses.
• Twist the cap counterclockwise by hand and pull it off.
• Tip: Set the cap where it stays clean.

Step 3: Unplug the electrical connector

• Press the locking tab on the connector and pull it straight rearward.
• If it’s tight, wiggle gently—don’t pull on the wires.
• Apply a tiny amount of dielectric grease inside the connector (a thin smear only).

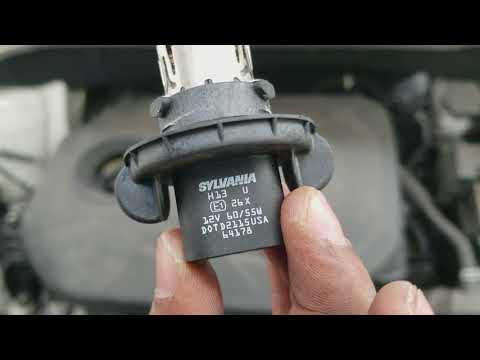

Step 4: Remove the old bulb

• Grip the bulb base and rotate it counterclockwise about a quarter-turn to unlock it.
• Pull the bulb straight out of the housing.
• Tip: Note the bulb’s tab positions for reinstall.

Step 5: Install the new bulb

• Still wearing nitrile gloves, insert the new bulb into the housing with the tabs aligned.
• Rotate the bulb clockwise until it locks fully in place.
• If you accidentally touch the glass, clean it with alcohol and a lint-free towel before installing.

Step 6: Reconnect and reseal

• Push the electrical connector on until it clicks.
• Reinstall the dust cap by twisting it clockwise until snug.
• If you removed the battery cable, reconnect it using a 10mm socket and 1/4" drive ratchet (snug, do not over-tighten).

Step 7: Repeat on the other side

• Repeat Steps 1–6 for the other headlight.
• Tip: Replace bulbs in pairs for equal brightness.

Step 8: If access is tight (optional clearance move)

• If your hands don’t fit well, remove nearby plastic clips/ducting using a trim clip removal tool.
• Reinstall all clips fully after the bulbs are replaced.

---

✅ After Repair

• Start the car and switch headlights ON to confirm both sides work on low and high beam.
• Walk in front of the car and verify both beams match in color and brightness.
• If one doesn’t light, turn lights OFF and recheck the connector is fully clicked in.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $20-$60 (parts only)

You Save: $60-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
