🔧 Headlight Bulb - Bulb Replacement

Replacing both headlight bulbs on your Yaris is a straightforward job. You’ll access each bulb from behind the headlamp assembly, swap the bulbs one side at a time, and then verify both lights work correctly.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Let the headlights cool completely before touching them.
• Turn the ignition off and remove the key before starting.
• Do not touch the glass on halogen bulbs with bare fingers; skin oil can shorten bulb life.
• If space is tight, move wiring and nearby covers gently so you do not crack the bulb base.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim panel tool
• 10mm socket
• Ratchet
• Extension bar
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Headlight bulb set - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the headlight switch off.
• Open the hood and support it securely.
• Work on one side at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the rear of the headlight housing

• Open the hood and locate the back side of the headlamp assembly.
• If the access area is tight, use the trim panel tool to gently move any plastic retainers or covers blocking access.
• If a nearby air duct or cover is in the way, remove it with the 10mm socket, ratchet, and extension bar.
• Take a photo before removing anything.

Step 2: Remove the old bulb

• Reach behind the headlight and unplug the bulb connector by hand.
• Rotate the bulb socket counterclockwise using your hand, then pull the bulb straight out.
• Do not force it; if it sticks, wiggle gently while turning.

Step 3: Install the new bulb

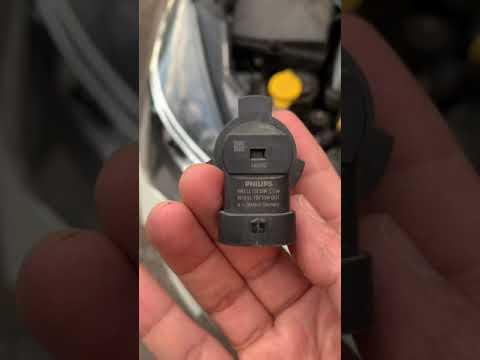

• Compare the old bulb and new bulb to make sure they match.
• Insert the new bulb into the housing in the same position as the old one.
• Rotate the bulb clockwise by hand until it locks in place.
• Reconnect the electrical connector firmly.
• Keep the bulb glass clean.

Step 4: Repeat on the other side

• Use the same process to replace the bulb on the other headlight.
• Make sure both bulbs are seated fully and both connectors are locked in.

Step 5: Test the headlights

• Turn the ignition on and switch on the headlights.
• Check low beam and high beam operation if your repair included both bulbs.
• Make sure both lights are bright and even.

---

✅ After Repair

• Close the hood and verify both headlights stay on while the engine is running.
• If one bulb does not work, recheck the connector and bulb seating.
• If the beam pattern looks uneven, make sure the bulb is fully locked into place.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$240 (parts + labor)

DIY Cost: $20-$60 (parts only)

You Save: $100-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
