🔧 Headlight Bulb Replacement - Bulb Replacement

Assumption: this is for both low-beam headlight bulbs on your Sienna with factory HID headlamps. The HID bulb is a high-voltage component, so the system must be powered down before you touch anything. Replacing both bulbs together keeps brightness matched side to side.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Turn the headlight switch off and let the lamps cool before starting.
• HID bulbs can carry high voltage. Do not touch the bulb connectors with the system powered.
• Disconnect the negative battery cable before unplugging any HID bulb connectors.
• Do not touch the glass part of a new bulb with bare fingers.
• Use eye protection and gloves. The bulb can shatter if dropped.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• Flat trim tool
• Safety glasses
• Nitrile gloves

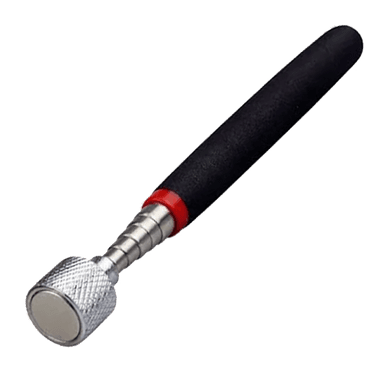

• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low-beam headlight bulb - Qty: 2
• Bulb dust cover O-ring - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the lights off and remove the key/fob from the vehicle.
• Open the hood.
• Disconnect the negative battery cable using a 10mm wrench.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power

• Use a 10mm wrench to remove the negative battery cable from the battery terminal.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 2: Access the first headlight bulb

• Open the hood fully.
• Reach behind the headlamp housing from the engine bay.
• If needed, use a flat trim tool to move any plastic covers or clips out of the way.
• Work gently around the wiring.

Step 3: Remove the bulb cover

• Twist the rear dust cover counterclockwise by hand and remove it.
• If the cover is tight, use a flat trim tool carefully at the edge.

Step 4: Remove the old bulb

• Disconnect the bulb connector by hand.
• Release the bulb retainer and pull the old bulb straight out.
• Use a magnetic pickup tool if a clip or fastener drops.

Step 5: Install the new bulb

• Install the new bulb in the same position as the old one.
• Lock the retainer back into place.
• Reconnect the bulb connector firmly.
• Do not touch the glass surface of the bulb.

Step 6: Reinstall the dust cover

• Check the O-ring on the cover for damage.
• Install the dust cover and twist it clockwise until snug.
• A bad seal can let moisture in.

Step 7: Repeat on the other side

• Repeat Steps 2 through 6 for the second headlight bulb.

Step 8: Restore power and test

• Reconnect the negative battery cable with a 10mm wrench.
• Start the vehicle and turn the headlights on.
• Verify both low beams come on and aim correctly.

---

✅ After Repair

• Check for a message on the dash about the headlamps.
• Make sure both sides are the same color and brightness.
• If one side does not light, recheck the connector and bulb lock.
• Inspect the rear covers for a tight seal.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $120-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
