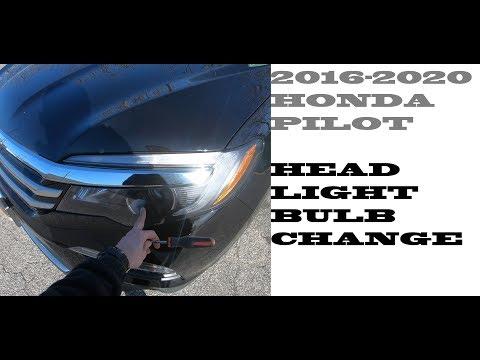

🔧 Pilot - Headlight Bulb Replacement

On your Pilot, “headlight bulbs” can mean different things depending on whether you have a halogen bulb (twist-out bulb you can replace) or an LED headlight (an LED module that typically isn’t a replaceable bulb). We’ll confirm which type you have, then replace the left and right side bulbs the safe way.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn headlights OFF and let them cool before touching anything.
• ⚠️ Do not touch halogen bulb glass with bare fingers; skin oil can shorten bulb life.
• ⚠️ If you must unplug any large headlamp connector, turn ignition OFF first.
• ⚠️ If your Pilot has LED low beams, the “bulb” usually isn’t serviceable; replacing the wrong part wastes money.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip remover
• Phillips screwdriver
• 10mm socket
• 1/4" ratchet
• 6" extension for 1/4" ratchet
• Needle-nose pliers
• Torque wrench (inch-pound or small ft-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low beam headlight bulb - Replace in pairs (Left + Right) - Qty: 2
• High beam headlight bulb - Replace in pairs (Left + Right) - Qty: 2
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and use a flashlight to look behind each headlamp for a round dust cap and a twist-lock bulb socket.
• Quick check (important): If there is no replaceable bulb/socket for the low beam (often LED), stop and tell me which light is out (low beam or high beam). LED low beam assemblies typically require headlamp assembly/module repair, not a bulb.
• If access is tight, be ready to move small items like the intake snorkel or washer filler neck using a 10mm socket and trim clip remover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which “bulb” you’re replacing (low beam vs high beam)

• Turn the headlight switch ON (engine can stay OFF) and verify what’s out: low beam or high beam.
• Turn all lights OFF.
• Behind the headlamp, remove the rubber/plastic dust cap by hand (if equipped).
• Read the bulb type printed on the bulb base or socket label using a flashlight.
• Match the new bulb type exactly.

Step 2: Create working room (only if needed)

• If the washer filler neck blocks access, gently pull it upward to unclip it (use needle-nose pliers only if a clip is stubborn).
• If the air intake duct/snorkel blocks access, loosen clamps/bolts with a 10mm socket and 1/4" ratchet, then move it aside.
• If you removed any 10mm bolts, reinstall them later to Torque to 9 Nm (80 in-lbs).

Step 3: Remove the electrical connector

• Press the connector tab with your thumb and pull straight back.
• If it’s stuck, gently wiggle while pulling—do not yank the wires.

Step 4: Remove the halogen bulb (twist-lock style)

• Put on nitrile gloves.
• Rotate the bulb counterclockwise (usually about 1/8 to 1/4 turn) by hand and pull it straight out.
• Keep the old bulb as a reference for the locking tabs.

Step 5: Install the new halogen bulb

• Without touching the glass, align the bulb tabs with the housing slots and insert fully.
• Twist clockwise by hand until it locks.
• Apply a tiny smear of dielectric grease to the connector seal (not on the bulb glass).
• Reconnect the electrical connector until it clicks.

Step 6: Reinstall dust cap and any moved components

• Reinstall the dust cap by hand, making sure it’s fully seated to keep moisture out.
• Reinstall intake duct/fasteners using a 10mm socket, then Torque to 9 Nm (80 in-lbs).
• Re-clip the washer filler neck back into place.

Step 7: Repeat on the other side

• Repeat Steps 2–6 for the other headlight.
• Replace bulbs in pairs for color match.

Step 8: If your low beam is LED (no replaceable bulb)

• If you cannot find a twist-out bulb/socket for the low beam, stop here.
• Tell me: (1) which function is out (low or high), and (2) what the back of the headlamp shows (a removable bulb socket or a sealed LED module/large connector).
• LED low-beam repairs typically involve the headlamp assembly or LED driver/module, not a bulb swap.

---

✅ After Repair

• Turn headlights ON and verify both left and right lights work on low beam and high beam.
• Check that dust caps are fully seated (prevents fogging/condensation).
• At night, confirm the beam pattern looks even; if it’s wildly off, a bulb may not be seated/locked.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$300 (parts + labor)

DIY Cost: $30-$120 (parts only)

You Save: $90-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
