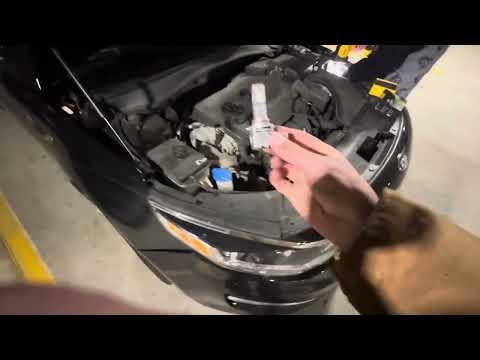

🔧 Optima - Headlight Bulb Replacement (Both Sides)

Replacing the headlight bulbs is usually done from under the hood by removing a dust cover behind each headlamp, unplugging the bulb, and installing a new one. Bulb type can vary by headlamp package on your Optima, so match the new bulb to the old one before installing.

Difficulty Level: Beginner | Estimated Time: 0.5–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn headlights OFF and let the bulbs cool (they get very hot).
• ⚠️ Do not touch the glass on halogen bulbs—skin oils can shorten bulb life.
• ⚠️ If your Optima has HID/Xenon headlights: treat them as high-voltage and disconnect the 12V battery negative terminal first.
• ⚠️ Support the hood securely and keep tools away from the hybrid orange cables.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" drive ratchet
• Flat trim tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Headlight low-beam bulb(s) - Replace in pairs - Qty: 2
• Headlight dust cover seal (if damaged) - Qty: 0–2

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the car OFF.
• Open the hood and set your flashlight so you can see behind the headlamp.
• If equipped with HID/Xenon headlights: use a 10mm socket to disconnect the 12V battery negative terminal and wait 5 minutes. Negative terminal is the “-” post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what bulb type you have

• Use a flashlight to look at the back of the headlamp for a bulb label, or remove one bulb first and match it at the parts counter.
• Common setups vary by headlamp package, so matching the old bulb is the safest way to get the correct part.

Step 2: Create access (if needed)

• If your hands don’t fit behind the passenger-side headlamp, remove the intake snorkel/clips using a flat trim tool.
• If the driver-side is tight, you may need to loosen a nearby cover/bracket using a 10mm socket and 1/4" drive ratchet.
• Reinstall any 10mm bolts later and Torque to 7–9 Nm (62–80 in-lbs).

Step 3: Remove the rear dust cover

• Reach behind the headlamp and remove the round dust cap/cover by turning it counterclockwise by hand.
• If it’s stuck, use nitrile gloves for extra grip. Don’t pry on the housing.

Step 4: Disconnect the bulb electrical connector

• Press the connector tab and pull the connector straight off the bulb.
• If there’s a locking tab, press it with your thumb—don’t pull on the wires.

Step 5: Remove the old bulb

• Halogen-style (most common): twist the bulb counterclockwise and pull it out.
• HID/Xenon-style (if equipped): turn the bulb/igniter assembly counterclockwise to unlock, then pull straight out carefully.
• Use a flashlight to confirm how it unlocks before forcing it.

Step 6: Install the new bulb

• Put on nitrile gloves and install the new bulb in the same orientation as the old one.
• Lock it in place by turning clockwise until it fully seats.
• If you accidentally touch halogen bulb glass, clean it with rubbing alcohol and let it dry fully before installing.

Step 7: Reconnect the connector and reinstall the dust cover

• Push the connector onto the bulb until it clicks/feels fully seated.
• Reinstall the dust cover and hand-tighten it snugly to keep moisture out.

Step 8: Repeat on the other side

• Repeat Steps 2–7 for the other headlamp.

Step 9: If you disconnected the 12V battery (HID/Xenon)

• Reconnect the negative terminal using a 10mm socket.
• Torque to 5–6 Nm (44–53 in-lbs).

---

✅ After Repair

• Turn the headlights ON and confirm both low beams work.
• Check that the dust covers are fully seated (prevents fogging/condensation).
• If one side looks dimmer or the beam pattern is odd, the bulb may not be fully locked in—turn lights OFF and re-seat it.

---

💰 DIY vs Shop Cost

Shop Cost: $120–$250 (halogen) / $300–$700 (HID) (parts + labor)

DIY Cost: $20–$60 (halogen pair) / $120–$250 (HID pair) (parts only)

You Save: $100–$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
