🔧 Ridgeline - Front Window Regulator Replacement

You’ll remove each front door panel, support the glass, unbolt the regulator/motor assembly, and install the new regulator so the window moves smoothly again. Do one door at a time to avoid mixing hardware and to keep the other window usable.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator tracks and scissor/cable path while testing.
• ⚠️ Support the glass at all times; an unsupported glass can drop and shatter.
• ⚠️ Your Ridgeline has side-impact airbags in the front doors—do not probe connectors with power on.
• ⚠️ Disconnect the negative battery cable before unplugging door/airbag-related connectors.
• ⚠️ Use plastic trim tools to avoid cracking clips and scratching the panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" drive ratchet
• 3" extension for 1/4" ratchet
• Phillips #2 screwdriver
• Flat plastic trim removal tool
• Pick tool
• Torx T30 driver
• Painters tape 1.5"
• Panel clip pliers
• Magnetic parts tray
• Torque wrench 3/8" drive (10–60 Nm range)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (driver/left) - Qty: 1
• Front window regulator assembly (passenger/right) - Qty: 1
• Front door panel trim clips - Qty: 10
• Butyl tape (door vapor barrier seal) - Qty: 1

---

📋 Before You Begin

• Park your Ridgeline on level ground and open the window you’re working on to about halfway (if it still moves).
• Turn ignition OFF, remove the key/fob from the cabin area, and wait 3 minutes before unplugging door connectors.
• Disconnect the battery negative cable using a 10mm socket and 1/4" drive ratchet.
• Prepare painters tape 1.5" to hold the glass up later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the driver front door trim pieces

• Use a flat plastic trim removal tool to pry up the window switch panel (start at the rear edge).
• Unplug the switch connector(s) using a pick tool to lift the lock tab gently.
• Use a pick tool to pop the small screw cover behind the inner door handle (if equipped), then remove the screw with a Phillips #2 screwdriver.
• Pry off the armrest/handle trim cover with a flat plastic trim removal tool, then remove the bolts underneath using a 10mm socket, 3" extension, and 1/4" drive ratchet.

Step 2: Remove the driver door panel

• Starting at the bottom edge, use panel clip pliers to pop the door panel clips free.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug remaining connectors (speaker/courtesy) using a pick tool.
• Disconnect the inner handle cable(s) from the handle by rotating the cable end out of its slot. Take a photo before removal.

Step 3: Remove and preserve the vapor barrier

• Carefully peel back the plastic vapor barrier (water shield) by hand.
• Use a pick tool only if needed to start an edge.
• If the adhesive tears, plan to reseal it later using butyl tape.

Step 4: Secure the window glass in the “up” position

• If the glass is down, temporarily reconnect the window switch connector and reconnect the battery negative cable with a 10mm socket to move the glass until you can access the glass-to-regulator bolts through the service holes.
• Disconnect the battery negative cable again with a 10mm socket.
• Use painters tape 1.5" to tape the glass to the door frame (run multiple strips over the top of the door and onto the glass).

Step 5: Unbolt the glass from the regulator

• Through the access holes, remove the glass clamp/bolts using a 10mm socket, 3" extension, and 1/4" drive ratchet.
• Confirm the glass is fully supported by tape before moving on.

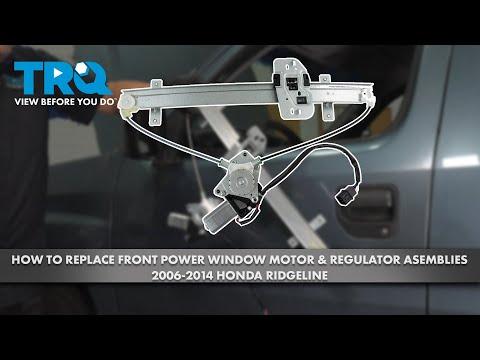

Step 6: Remove the window regulator/motor assembly (driver)

• Unplug the window motor connector using a pick tool.
• Remove the regulator mounting bolts using a 10mm socket, 3" extension, and 1/4" drive ratchet.
• If your regulator uses a separate motor fastened with Torx screws, remove them using a Torx T30 driver.
• Carefully snake the regulator assembly out through the largest service opening. Rotate it slowly; don’t force it.

Step 7: Install the new regulator (driver)

• Insert the new regulator into the door cavity in the same orientation as the old one.
• Start all regulator bolts by hand to avoid cross-threading.
• Tighten the regulator bolts with a 10mm socket and torque wrench 3/8" drive (10–60 Nm range) to Torque to 10 Nm (7 ft-lbs).
• If transferring the motor, install motor fasteners with a Torx T30 driver and tighten evenly.

Step 8: Reattach the glass to the regulator (driver)

• Lower the taped glass slightly by hand until it aligns with the regulator clamps (do not remove all tape yet).
• Install the glass bolts using a 10mm socket and snug them evenly.
• Tighten to Torque to 10 Nm (7 ft-lbs) using a torque wrench 3/8" drive (10–60 Nm range).

Step 9: Functional test (driver) before reassembly

• Reconnect the motor connector and reconnect the battery negative cable using a 10mm socket.
• Reconnect the window switch connector and run the window up/down while watching the regulator through the access hole using a work light.
• Disconnect the battery negative cable again with a 10mm socket after confirming smooth operation.
• Remove the painters tape from the glass.

Step 10: Reseal the vapor barrier and reinstall the driver door panel

• Press the vapor barrier back into place; add butyl tape where needed to fully seal.
• Reconnect handle cable(s) and all electrical connectors.
• Hook the panel onto the top window ledge, then press clips in place (use panel clip pliers if needed).
• Reinstall screws/bolts using a Phillips #2 screwdriver and 10mm socket.
• Snap trim covers back on using a flat plastic trim removal tool to align without marring.

Step 11: Repeat Steps 1–10 for the passenger front door

• Use the same tools and sequence on the passenger side.
• Keep the hardware separate in a magnetic parts tray to avoid mixing fasteners.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Initialize the front windows (auto-up/down) on each side:

• Turn ignition ON.
• Hold the window switch to fully lower the window, then keep holding for 2 seconds.
• Hold the switch to fully raise the window, then keep holding for 2 seconds.
• Confirm auto-up/down works from each door switch.

• Test door locks, handle operation, and mirror/switch functions.
• Check that the vapor barrier is sealed to help prevent water leaks and wind noise.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,300 (parts + labor)

DIY Cost: $200-$600 (parts only)

You Save: $500-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
