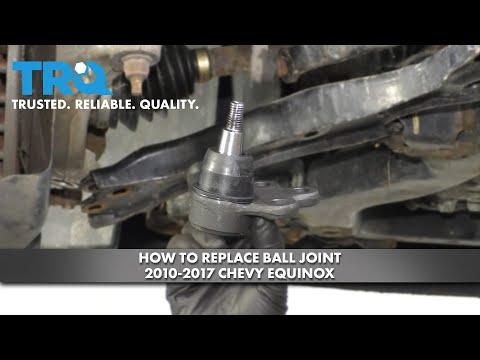

🔧 Front Lower Ball Joints - Replacement

Assumption: both front lower ball joints, one on each side. On your Equinox, the lower ball joint is commonly serviced with the lower control arm depending on how the original part is built. If your joint is riveted or not removable, replace the complete lower control arm assembly instead.

This job involves separating the front suspension, removing the steering knuckle connection, and swapping the worn joints. Because the front end supports the wheel and axle, take your time and keep the vehicle securely supported.

Difficulty Level: Intermediate | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Support the vehicle with jack stands; never work under a vehicle held up only by a jack.
• Use wheel chocks on the rear wheels before lifting the front.
• If equipped with ABS wiring at the knuckle, disconnect clips carefully so the harness is not stretched or damaged.
• Do not let the brake caliper hang by the hose.
• After suspension work, an alignment is strongly recommended.
• If the ball joint is pressed into the arm or riveted in place, replace the complete lower control arm instead of forcing the joint out.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar
• Torque wrench
• Socket set
• Metric wrench set
• Ball joint separator (specialty)
• Hammer
• Pry bar
• Pickle fork (specialty)
• Ball joint press kit (specialty)
• Needle-nose pliers
• Penetrating oil
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint hardware kit - Qty: 2
• New cotter pins - Qty: 2
• Front lower control arm assembly - Qty: 2 if your ball joints are not serviceable

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front wheel lug nuts before lifting the vehicle.
• Raise the front and support it securely on jack stands.
• If the vehicle has stability control or steering angle calibration concerns after the repair, plan for an alignment and a short drive to verify no warning lights stay on.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheels

• Use a breaker bar and the correct socket to loosen the lug nuts, then remove the wheels.
• Set the wheels aside flat so they cannot roll away.

Step 2: Prepare the suspension

• Spray penetrating oil on the ball joint nut, pinch area, and any fasteners that look rusty.
• Use a paint marker to mark the position of parts if needed.
• Support the lower control arm with a floor jack so the knuckle does not drop suddenly.

Step 3: Separate the ball joint from the knuckle

• Use the correct socket or wrench to remove the ball joint nut.
• Use a ball joint separator to break the taper free from the steering knuckle.
• Do not hit the stud directly.

Step 4: Remove the ball joint from the control arm

• If the joint is bolted in, use the correct socket and wrench to remove the fasteners.
• If the joint is pressed in, use the ball joint press kit to press it out.
• If the joint is riveted, drill or grind the rivets and remove the joint, or replace the complete lower control arm assembly.

Step 5: Install the new ball joint

• Position the new joint in the control arm using the ball joint press kit if required.
• Install the new hardware and tighten it to factory specification.
• Insert the stud into the knuckle and install the new nut.
• Tighten the nut to factory specification, then install a new cotter pin if the design uses one.

Step 6: Reassemble the suspension

• Make sure the knuckle, axle, and brake parts are seated correctly.
• Remove the jack support from under the control arm.
• Reinstall the wheel and hand-tighten the lug nuts.

Step 7: Repeat on the other side

• Perform the same steps on the opposite front side.
• Replace both sides together so the front end stays even.

Step 8: Final torque and check

• Lower the vehicle so the suspension sits at normal ride height.
• Use a torque wrench to tighten the wheel lug nuts to factory specification.
• Recheck the ball joint fasteners if the service procedure requires final torque at ride height.

---

✅ After Repair

• Start the vehicle and turn the steering wheel lock-to-lock to check for clunks or binding.
• Drive slowly at first and listen for suspension noise.
• Schedule a professional wheel alignment as soon as possible.
• Recheck lug nut torque after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,000 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $380-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
