🔧 Ridgeline - Front Door Lock Actuator Replacement

You’ll remove each front door panel, unplug the actuator wiring, then unbolt and swap the door lock actuator inside the latch assembly. This fixes issues like power locks that don’t lock/unlock, make noise, or work only sometimes.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Side airbag is in the door; handle the panel gently and avoid probing yellow connectors.
• ⚠️ Turn ignition OFF and disconnect the battery before unplugging door wiring.
• ⚠️ Support the door panel so it doesn’t hang by the wiring.
• ⚠️ Wear gloves; the inner door metal edges are sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm ratchet
• 6-inch extension for 1/4-inch drive ratchet
• Phillips #2 screwdriver
• Trim removal tool set (plastic)
• Pick tool
• Needle-nose pliers
• Magnetic pickup tool
• Painter’s tape
• Work light
• Torque wrench (inch-pound/low-range)
• Safety glasses
• Mechanic gloves
• Memory saver (12V OBD-II style)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front left (driver) door lock actuator - Qty: 1
• Front right (passenger) door lock actuator - Qty: 1
• Door panel trim clips - Qty: 10-20
• Butyl tape for vapor barrier - Qty: 1

---

📋 Before You Begin

• Park on level ground, windows up, ignition OFF, key away from the truck.
• Apply painter’s tape along the painted door edge and around the interior handle area to prevent scratches.
• If you have a memory saver, plug it in before disconnecting the battery to keep radio settings.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it.
• Know this term: the vapor barrier is the plastic sheet inside the door that keeps water off the cabin side; it must be resealed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel

• Use a trim removal tool set (plastic) to pry up the window/lock switch panel from the armrest.
• Unplug the electrical connectors using a pick tool to lift the locking tabs if needed.
• Pry slowly to avoid cracking the trim.

Step 2: Remove hidden screws in the pull handle and handle bezel

• Use a pick tool to pop off the small covers in the door pull/armrest area.
• Remove screws with a Phillips #2 screwdriver.
• If equipped with a small screw behind the inner handle bezel, pry the bezel carefully with a trim removal tool set (plastic) and remove the screw with a Phillips #2 screwdriver.

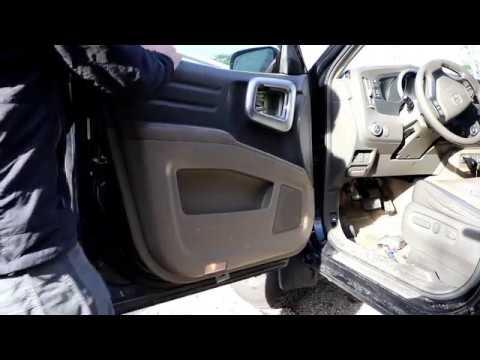

Step 3: Release the door panel clips and lift the panel off

• Start at the lower edge. Use a trim removal tool set (plastic) to pop the panel clips free around the perimeter.
• Lift the whole panel straight upward to unhook it from the top window channel.
• Support the panel and unplug any remaining connectors using the pick tool if needed.

Step 4: Remove the vapor barrier (plastic sheet)

• Peel the vapor barrier back slowly by hand.
• If the sticky sealer won’t let go, use the trim removal tool set (plastic) to help separate it without tearing.
• Set it aside clean so it can be reused.

Step 5: Disconnect the outside handle and lock rods (linkages)

• Locate the metal rods going to the latch/actuator. Use a work light to see clearly.
• Each rod is held by a colored plastic “clip.” Use a pick tool to rotate the clip open, then lift the rod out.
• Use needle-nose pliers only if your fingers can’t reach.
• Take a photo before removing rods.

Step 6: Unplug the actuator/latch electrical connector

• Find the latch/actuator connector on the rear edge area inside the door.
• Press the tab and unplug it by hand; use a pick tool gently if the tab is stuck.
• Do not pull on the wires—pull on the connector body.

Step 7: Remove the latch/actuator assembly from the door

• At the door’s rear edge, remove the latch mounting bolts using a 10mm socket, 10mm ratchet, and 6-inch extension for 1/4-inch drive ratchet.
• Carefully wiggle the latch/actuator assembly out through the access opening.
• If you drop hardware inside the door, retrieve it with a magnetic pickup tool.

Step 8: Swap the actuator (if serviced separately) or replace the whole latch/actuator

• If your replacement is the actuator motor/module only, remove its screws from the latch using a Phillips #2 screwdriver and transfer it to the new unit in the same position.
• If your replacement is a complete latch/actuator assembly, skip the transfer and install the new assembly as-is.
• Reconnect any small internal linkage exactly as it was.

Step 9: Reinstall the latch/actuator and reconnect rods

• Position the assembly back into the door and start the bolts by hand.
• Tighten bolts with a 10mm socket and 10mm ratchet.
• Torque to 9 Nm (80 in-lbs) using a torque wrench (inch-pound/low-range).
• Reconnect all rods: insert the rod, then rotate the plastic clip closed until it locks.
• Plug the electrical connector back in until it clicks.

Step 10: Reseal the vapor barrier

• Press the vapor barrier back into place by hand.
• If the adhesive no longer sticks, apply butyl tape for vapor barrier around the perimeter and press firmly.

Step 11: Reinstall the door panel

• Reconnect all door panel electrical connectors by hand.
• Hang the panel on the top lip (window channel), then press around the edges to snap clips in.
• Reinstall screws with a Phillips #2 screwdriver and snap the covers back on.
• Reinstall the switch panel and press it down until it seats.

Step 12: Repeat on the other front door

• Repeat Steps 1–11 for the other front door using the same tools.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Function test: lock/unlock with the key fob, door switch, and key in the door (if equipped).
• Verify the inside handle opens the door and the outside handle works normally.
• Check the window and mirror controls work on both doors.
• If the door panel rattles, a clip may be broken—replace with door panel trim clips.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$950 (parts + labor)

DIY Cost: $160-$520 (parts only)

You Save: $290-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
