🔧 GX460 - Oxygen Sensor Replacement

Your GX460 uses oxygen-sensing devices in the exhaust to help the engine computer control fuel mixture and check catalytic converter efficiency. Replacing a failed sensor is mostly about safe access, unplugging the connector, and swapping the sensor without damaging the threads or wiring.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool completely before touching it (burn risk).
• ⚠️ Support the truck with jack stands on the frame; never rely on a floor jack.
• ⚠️ Keep wiring away from the exhaust when reinstalling (melt risk).
• ⚠️ If you disconnect the sensor connector near the starter/engine harness, disconnect the battery negative cable first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm oxygen sensor socket (specialty)
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive torque wrench (10-100 ft-lbs range)
• 3/8" drive extension set
• Trim clip remover
• Flat-blade screwdriver
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor - Qty: 1
• Anti-seize compound (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and chock the rear wheels.
• Let the exhaust cool for at least 60 minutes.
• If working near the engine harness, disconnect the battery negative cable using a 10mm wrench (not required for every sensor, but safest).
• Assumption: Procedure applies to any of the GX460’s exhaust sensors (upstream Air/Fuel sensor or downstream Oxygen sensor); the access point changes, but the swap steps are the same.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the truck

• Place wheel chocks behind the rear tires.
• Lift the front with a floor jack (rated 3-ton minimum) at the front jacking point, then set it on jack stands (rated 3-ton minimum) at the frame.

Step 2: Locate the sensor you’re replacing

• Follow the exhaust pipe from the engine toward the rear.
• Upstream sensors are in/near the exhaust manifolds (before the catalytic converters). Downstream sensors are after the catalytic converters.
• Identify the sensor’s electrical connector and make sure you can reach it before trying to loosen the sensor.

Step 3: Unplug the sensor connector

• Release any wire clips using a trim clip remover or flat-blade screwdriver.
• Press the connector lock tab and separate the connector by hand.
• Don’t pull on the wires. Pull on the connector body only.

Step 4: Pre-soak the threads

• Spray penetrating oil at the sensor’s threaded base where it enters the exhaust pipe.
• Wait 5–10 minutes. Re-spray if it looks dry.

Step 5: Remove the old sensor

• Slide the harness through the slot in the 22mm oxygen sensor socket (specialty). (This is a deep socket with a side cutout so the wire can pass through.)
• Use a 3/8" drive ratchet or 3/8" drive breaker bar with a 3/8" drive extension (as needed) to turn the sensor counterclockwise.
• If it’s very tight, use the 3/8" drive breaker bar for controlled force.

Step 6: Install the new sensor

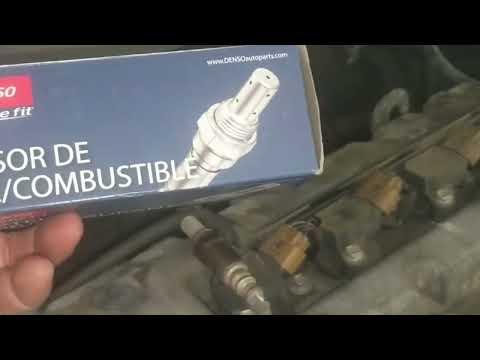

• Compare the new sensor to the old one (connector shape and length should match).
• If the new sensor threads are not pre-coated, apply a very light amount of anti-seize compound (sensor-safe) to the threads only.
• Start the sensor by hand 3–5 turns to avoid cross-threading.
• Tighten with the 22mm oxygen sensor socket (specialty).
• Torque to 44 Nm (33 ft-lbs) using a 3/8" drive torque wrench (10-100 ft-lbs range).

Step 7: Reconnect and re-clip the harness

• Plug the connector in until it clicks.
• Reinstall all harness clips using a trim clip remover as needed.
• Confirm the harness is routed away from the exhaust and any moving parts.

Step 8: Lower the truck

• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), and lower to the ground.

Step 9: Clear codes (if present)

• Use an OBD2 scan tool to clear stored fault codes after the repair.

---

✅ After Repair

• Start the engine and listen for exhaust leaks near the sensor (ticking/hissing).
• Verify the check engine light stays off after a short drive.
• If you cleared codes, drive normally for 10–20 minutes and re-scan with the OBD2 scan tool to confirm the fix.
• Recheck harness clearance after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $80-$280 (parts only)

You Save: $170-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
