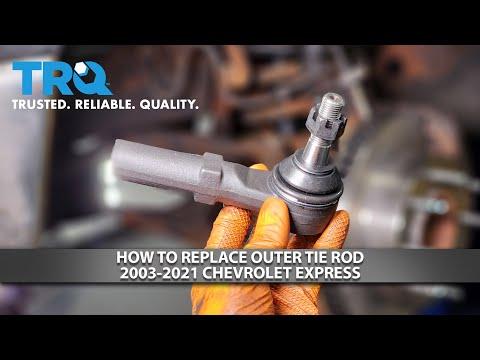

🔧 Express - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack/center link to the front steering knuckle. Replacing a worn tie rod end restores safe steering and prevents uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: “Tie rod end” = outer tie rod end at the wheel.

---

⚠️ Safety & Precautions

• 🛑 Support the van with jack stands; never rely on a jack.
• 🛑 Chock the rear wheels and keep the steering wheel centered.
• 🛑 Wear eye protection when removing cotter pins and using a puller.
• 🛑 After replacement, get a front-end alignment ASAP (toe will change).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-200 ft-lbs)
• Combination wrench set (15mm-24mm)
• Adjustable wrench (12")
• Pliers
• Side cutters
• Hammer (16-24 oz)
• Tie rod end puller (specialty)
• Penetrating oil
• Paint marker
• Tape measure
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end castle nut) - Qty: 1
• Chassis grease (if new tie rod end has a grease fitting) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• 🧭 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧭 Keep the steering wheel straight and the front wheels pointed forward.
• 🧭 Loosen the front wheel lug nuts 1/2 turn before lifting.
• 🧭 Spray penetrating oil on the tie-rod jam nut and the stud nut threads.
• 🧭 A “jam nut” is the nut that locks the tie rod end’s position on the threaded rod.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a 22mm socket and breaker bar to loosen lug nuts (do not remove yet).
• Use a floor jack (rated 3-ton minimum) to lift the front corner at a solid frame point.
• Set the van onto jack stands (rated 3-ton minimum).
• Remove the wheel using a 22mm socket.

Step 2: Mark the current toe setting (so you can “match it”)

• Use a paint marker to mark the tie rod threads and the jam nut position.
• Use a tape measure to measure from a fixed point (like the end of threads) to the tie rod end body, and write it down.
• This helps you drive to alignment safely.

Step 3: Loosen the jam nut

• Hold the tie rod (or flats on the tie rod end if present) with a adjustable wrench (12").
• Use a combination wrench set (15mm-24mm) to loosen the jam nut (do not fully remove it).
• Back the jam nut away 1-2 turns to create space.

Step 4: Remove the cotter pin and loosen the castle nut

• Use pliers or side cutters to straighten and remove the cotter pin from the tie rod end stud.
• Use a correctly sized wrench from your combination wrench set (15mm-24mm) to loosen and remove the castle nut.

Step 5: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) over the joint and tighten it until the stud “pops” free.
• If needed, tap the knuckle boss lightly with a hammer (16-24 oz) while the puller is loaded.
• A puller is a tool that presses the tapered stud out without damaging boots.

Step 6: Remove the old tie rod end (count the turns)

• Spin the tie rod end off the threaded rod by hand.
• Count the exact number of turns it takes to come off (example: 17.5 turns). Write it down.
• Use a wire brush if needed to clean threads (if you have one); otherwise wipe clean.

Step 7: Install the new tie rod end

• Apply a light coat of anti-seize compound to the threads.
• Thread the new tie rod end on the same number of turns you counted.
• Rotate the tie rod end so the stud lines up with the steering knuckle hole.

Step 8: Tighten the stud nut and install a new cotter pin

• Install the castle nut by hand, then tighten using a wrench from the combination wrench set (15mm-24mm).
• Torque the tie rod end castle nut using a torque wrench (30-200 ft-lbs): Torque to 100 Nm (74 ft-lbs), then tighten further only as needed to align the cotter pin hole.
• Install a new cotter pin and bend the ends over using pliers.

Step 9: Lock the adjustment (tighten the jam nut)

• Hold the tie rod end with an adjustable wrench (12") so it doesn’t rotate.
• Tighten the jam nut with a wrench from the combination wrench set (15mm-24mm).
• Torque the jam nut using a torque wrench (30-200 ft-lbs): Torque to 60 Nm (44 ft-lbs).

Step 10: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the van using the floor jack (rated 3-ton minimum) and remove the jack stands (rated 3-ton minimum).
• Torque the lug nuts in a star pattern using a torque wrench (30-200 ft-lbs): Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• 🧪 Turn the steering wheel lock-to-lock while parked and listen for clunks.
• 🧪 Road test at low speed first; confirm it tracks straight and the steering wheel is close to centered.
• 🧪 Get a professional alignment immediately (especially toe setting).
• 🧪 Recheck the cotter pin and lug torque after a short drive.
• 🧪 If the new tie rod end has a grease fitting, add grease until the boot just begins to swell (use chassis grease).

---
