🔧 Highlander - Side View Mirror Replacement

On your Highlander, the “side view mirror” can mean either the complete mirror assembly (housing + motor + glass) or just the mirror glass. The steps are different, so we’ll confirm that first to avoid breaking clips or ordering the wrong part.

Difficulty Level: Intermediate | Estimated Time: 0.5-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and keep the key fob away from the vehicle.
• ⚠️ If you’ll remove the door panel and unplug connectors, disconnect the battery negative terminal to prevent accidental shorting.
• ⚠️ Use plastic trim tools to avoid cracking the sail panel (the small triangle trim by the mirror).
• ⚠️ Support the mirror as you remove the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torque wrench (in-lb)
• Phillips screwdriver #2
• Plastic trim removal tool set
• Panel clip pliers
• Pick tool
• Painter’s tape
• Magnetic pickup tool
• Shop light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Qty: 1
• Door trim panel clips - Qty: 5-10
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition OFF.
• Apply painter’s tape along the mirror base and door edge to protect paint.
• If replacing the complete assembly: plan on removing the inner sail panel and usually the door panel to access the mirror connector.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re replacing

• Are you replacing the complete mirror assembly (housing) or just the mirror glass?
• Also confirm which side: driver or passenger.
• If you reply, I’ll tailor steps exactly.

Step 2: Remove the inner sail panel (triangle trim)

• Use a plastic trim removal tool to pry the sail panel straight outward from the top edge.
• If it has a small clip/cover, use a pick tool carefully to start an edge, then continue with the trim tool.
• Set the panel aside.

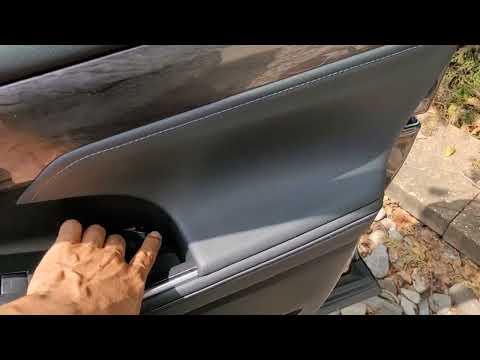

Step 3: If needed, remove the front door trim panel

• Remove the screw(s) in the interior pull handle/armrest area using a Phillips screwdriver #2.
• Use a plastic trim removal tool to pop the door panel clips around the perimeter.
• Lift the door panel upward to unhook it from the window ledge.
• Unplug electrical connectors by releasing tabs with a pick tool (do not pull on wires).
• Trim clips often break—having spares helps.

Step 4: Peel back the water shield enough to reach the mirror connector

• Carefully peel the plastic water shield back by hand.
• If the adhesive stretches or won’t re-stick, plan to use butyl tape during reassembly.

Step 5: Unplug the mirror connector

• Locate the mirror wiring connector near the mirror mounting area inside the door.
• Press the lock tab and pull the connector apart (use a pick tool if the tab is stubborn).

Step 6: Remove the mirror mounting nuts

• Support the mirror from the outside with one hand.
• Use a 10mm socket, 3" extension, and 1/4" drive ratchet to remove the mounting nuts.
• Use a magnetic pickup tool if a nut drops inside the door.

Step 7: Remove the mirror assembly

• Feed the wiring and grommet out through the hole and remove the mirror from the door.
• Inspect the mirror gasket; replace if torn or flattened (to prevent wind noise and water leaks).

Step 8: Install the new mirror assembly

• Feed the wiring through the door and seat the mirror on the door.
• Hand-start all mounting nuts to avoid cross-threading.
• Use a torque wrench (in-lb) and 10mm socket: Torque to 62 in-lb (7 N·m).

Step 9: Reconnect wiring and reassemble the door

• Reconnect the mirror connector until it clicks.
• Re-stick the water shield; add butyl tape if needed.
• Reconnect door electrical connectors.
• Hang the door panel on the top ledge, then press clips in place by hand.
• Reinstall screws using a Phillips screwdriver #2.
• Reinstall the sail panel by lining up clips and pressing it straight in.

Step 10: If you disconnected the battery, reconnect it

• Use a 10mm socket to tighten the negative terminal snugly.

---

✅ After Repair

• Test mirror movement with the mirror switch (up/down/left/right).
• If equipped, verify heating works (rear defogger on) and any mirror turn signal works.
• Check for wind noise on a short drive; re-seat the mirror gasket if needed.
• Make sure the window operates normally and the door locks/unlocks.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$900 (parts + labor, varies by options like BSM/heated)

DIY Cost: $120-$650 (parts only)

You Save: $180-$250+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.5 hours.

---
