🔧 Sorento - Side View Mirror Replacement

Replacing the side view mirror usually means removing the interior door trim, unplugging the mirror wiring, and unbolting the mirror from the door. On your Sorento, mirrors may include options like heating, turn-signal, puddle light, power-fold, and blind-spot hardware—so the wiring connectors can vary.

Assumption: This covers the complete mirror assembly replacement (not just the glass).

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before working in the door to reduce airbag/short-risk.
• ⚠️ Do not turn the ignition on with door connectors unplugged; it can set fault codes.
• ⚠️ Support the door panel so it doesn’t hang by the wiring harness.
• ⚠️ Wear eye protection; door clips can pop free suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" ratchet
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Pick tool
• Needle-nose pliers
• Torque wrench (in-lb or low-range ft-lb)
• Painter’s tape
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left or right, option-matched) - Qty: 1
• Door trim panel retainer clips - Qty: 5-10
• Butyl sealing strip (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition OFF.
• Lower the window on the side you’re working on; it makes handling the door panel easier.
• Disconnect the battery negative terminal using a 10mm socket, then wait 3 minutes.
• Put painter’s tape along the door edge/paint near the mirror to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel (mirror triangle cover)

• Use a plastic trim removal tool set to gently pry off the small triangular cover at the top-front of the door (inside, by the mirror).
• If it has a tweeter speaker, unplug the connector using the pick tool to lift the lock tab. Pry close to clips to avoid bending.

Step 2: Remove the door handle/armrest trim and hidden screws

• Use a plastic trim removal tool set to pop up the trim in/around the interior door handle and armrest area.
• Remove exposed screws using a Phillips #2 screwdriver.

Step 3: Remove the door panel

• Starting at the lower edge, use a plastic trim removal tool set to pop the door panel clips free.
• Lift the door panel upward to unhook it from the window ledge.
• Unplug all electrical connectors (window/lock switch, courtesy light, etc.). Use a pick tool to release connector locks if needed.
• If equipped with a mechanical door-handle cable, unclip it using needle-nose pliers (a cable is a steel wire inside a sheath that mechanically opens the latch).

Step 4: Peel back the water shield (vapor barrier)

• Carefully peel back the plastic water shield near the mirror area.
• Use the pick tool to separate sticky butyl without tearing the plastic. Keep the shield clean for reseal.

Step 5: Disconnect the mirror electrical connector

• Locate the mirror harness connector near the front upper door area.
• Release the lock and unplug it using the pick tool (don’t pull on the wires).

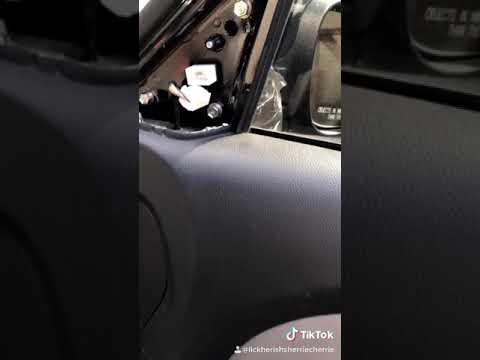

Step 6: Unbolt and remove the mirror assembly

• Support the mirror from the outside with one hand.
• Remove the mirror mounting nuts using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Remove the mirror from the outside and guide the wiring through the door opening.
• Torque note: Mirror fastener torque depends on mirror option; torque to Kia factory specification for your mirror type using a torque wrench (in-lb or low-range ft-lb). Overtightening can crack the mirror base.

Step 7: Install the new mirror

• Feed the mirror wiring through the door opening and seat the mirror base flat against the door.
• Thread the mounting nuts by hand first to avoid cross-threading.
• Tighten the nuts evenly using a 10mm socket and 1/4" drive ratchet, then finish with the torque wrench (in-lb or low-range ft-lb) to Kia factory specification.
• Reconnect the mirror electrical connector; confirm it clicks/locks.

Step 8: Reseal the water shield

• Press the water shield back into place.
• If the butyl won’t stick well, apply butyl sealing strip (water shield adhesive) to reseal the edge.

Step 9: Reinstall the door panel and trim

• Reconnect all electrical connectors and the handle cable (if equipped).
• Hook the top of the panel onto the window ledge, then press clips in around the perimeter with firm, even pressure.
• Reinstall screws using a Phillips #2 screwdriver.
• Reinstall the sail panel using hand pressure; it should snap into place.

Step 10: Reconnect battery

• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Test mirror adjust (up/down/left/right) and mirror select switch.
• If equipped, test heating, turn-signal indicator, puddle lamp, and power-fold.
• Check that the window and door locks work from the driver switch.
• Drive and check for wind noise; if present, confirm the mirror base sits flat and the seal is intact.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$850 (parts + labor, varies a lot by options/paint)

DIY Cost: $120-$600 (parts only)

You Save: $130-$250+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
