🔧 Camry - Side View Mirror Replacement

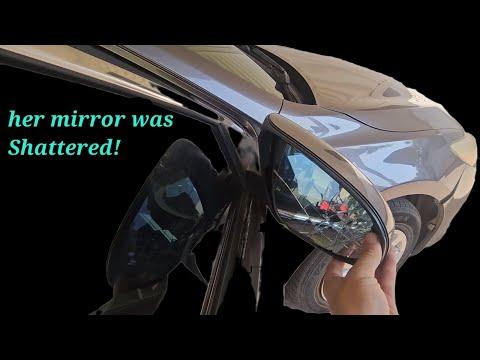

Replacing a side view mirror means removing the inner door trim, unplugging the mirror wiring, and swapping the mirror assembly. This is usually needed after the mirror is broken, loose, or the glass/motor is damaged.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: Your Camry has a power mirror (may include heat/turn signal).

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and keep the key away from the car.
• ⚠️ Disconnect the 12V battery negative terminal to prevent accidental electrical shorts while unplugging door connectors.
• ⚠️ Use plastic trim tools to avoid cracking trim or scratching paint.
• ⚠️ Support the mirror when removing the last nut so it doesn’t fall and chip the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension for 1/4" ratchet
• Torque wrench (in-lb or low Nm)
• Phillips screwdriver #2
• Plastic trim removal tool set
• Needle-nose pliers
• Pick tool
• Painter’s tape
• Magnetic pickup tool
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left or right, paint-to-match if needed) - Qty: 1
• Mirror-to-door gasket/seal - Qty: 1
• Door trim panel clips - Qty: 3-10

---

📋 Before You Begin

• 🅿️ Park on level ground and shift to Park.
• 🪟 Lower the window on the side you’re working on (gives you a safe handhold).
• 🔌 Disconnect the 12V battery negative terminal using a 10mm socket.
• 🧰 Set out a small tray for screws and clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the paint and prep the mirror

• Apply painter’s tape around the mirror base on the outside of the door to prevent scratches.
• Put on gloves and safety glasses.

Step 2: Remove the small inner “sail panel” cover

• Use a plastic trim removal tool set to gently pry off the small triangular cover at the top front corner of the door (inside, by the mirror).
• Trim tool = plastic pry tool for interior panels.

Step 3: Remove the door handle/armrest screws

• Use a pick tool to lift the small plastic caps hiding screws (if equipped).
• Remove screws using a Phillips screwdriver #2.

Step 4: Remove the door panel (trim panel)

• Starting at the bottom edge, use a plastic trim removal tool set to pop the panel clips loose.
• Panel clips = push-in fasteners that “snap” out.
• Lift the door panel straight upward to unhook it from the window ledge.
• If a clip stays in the door, pull it out using needle-nose pliers and reinstall it onto the panel.

Step 5: Disconnect electrical connectors

• Unplug the window/lock switch connector(s) by pressing the tab and pulling the connector apart by hand.
• If the door handle cable is attached, unhook it carefully (use the pick tool if needed).

Step 6: Peel back the moisture barrier (water shield)

• Gently peel back the plastic moisture barrier near the mirror area.
• Try not to tear the sticky butyl seal.

Step 7: Unplug the mirror connector

• Locate the mirror wiring connector near the top front of the door.
• Press the lock tab and unplug it by hand (use a pick tool only if necessary).

Step 8: Remove the mirror mounting nuts

• Support the mirror from the outside with one hand.
• Use a 10mm socket, 1/4" drive ratchet, and 3" extension to remove the three mirror mounting nuts.
• Use a magnetic pickup tool if a nut tries to fall into the door.

Step 9: Remove the mirror and transfer any needed pieces

• Pull the mirror straight away from the door and guide the wiring through the hole.
• Replace the mirror-to-door gasket/seal if it’s torn, flattened, or missing.

Step 10: Install the new mirror

• Feed the mirror wiring through the door opening and set the mirror in place.
• Thread the three nuts on by hand first to avoid cross-threading.
• Tighten the nuts evenly using a 10mm socket.
• Final tighten using a torque wrench (in-lb or low Nm): Torque to 8 Nm (71 in-lbs).

Step 11: Reconnect wiring and reassemble the door

• Plug the mirror connector back in by hand until it clicks.
• Re-stick the moisture barrier firmly (press around the edges).
• Reconnect door switch connectors by hand until they click.
• Hang the door panel on the top ledge first, then press clips in around the edges using your palm.
• Reinstall screws using a Phillips screwdriver #2, then snap the small caps back on.
• Reinstall the sail panel by pressing it into place by hand.

---

✅ After Repair

• 🔋 Reconnect the 12V battery negative terminal using a 10mm socket.
• 🪞 Turn ignition ON and test mirror adjust in all directions.
• 🌡️ If equipped, confirm mirror heat works (rear defogger often powers it).
• 💡 If equipped, confirm turn signal/puddle light functions.
• 🚿 After your next wash/rain, check for water leaks around the mirror area.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $90-$450 (parts only)

You Save: $160-$200+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
