🔧 Sentra - Side View Mirror Replacement

Replacing a side view mirror means removing the interior trim at the front of the door, unplugging (if equipped) the mirror wiring, and swapping the mirror assembly onto the door. This is usually straightforward, but the key is avoiding broken plastic clips and not scratching the paint.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours (per side)

---

⚠️ Safety & Precautions

• Work on level ground and keep fingers clear of sharp door-sheetmetal edges.
• If your mirror has power/heat/turn signal, disconnect the negative battery cable before unplugging connectors.
• Use plastic trim tools (not a screwdriver) on interior panels to prevent cracks and dents.
• Support the mirror with one hand when removing the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Plastic trim panel removal tool set
• 10mm socket
• 1/4-inch drive ratchet
• 6-inch extension for 1/4-inch ratchet
• Phillips #2 screwdriver
• Small flat trim pick
• Torque wrench (inch-pound)
• Needle-nose pliers
• Painter’s tape (1-inch)
• Shop towels
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (Left/Driver or Right/Passenger, correct color/options) - Qty: 1
• Door trim panel clips - Qty: 5-10
• Mirror mounting nuts - Qty: 3
• Foam mirror-to-door gasket - Qty: 1

---

📋 Before You Begin

• Lower the window fully so you can grab the door more easily and avoid glass damage.
• Apply painter’s tape along the door edge near the mirror area to protect paint.
• If equipped with power mirror features, use a 10mm socket to disconnect the negative battery cable and set it aside so it can’t spring back.
• Lay parts out in order to avoid missing clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior mirror sail panel

• Use a plastic trim panel removal tool set (a non-marring pry tool) to gently pop off the small triangular cover at the front upper corner of the door (inside, by the mirror).
• If there’s a small clip tether or speaker wire, disconnect it using a small flat trim pick and your fingers.

Step 2: Access the mirror electrical connector (power mirrors)

• Look behind the sail panel opening for the mirror connector.
• If you can reach it, press the lock tab and unplug it by hand; use a small flat trim pick only to help release the tab (don’t stab the wire).
• If you cannot reach the connector, continue to Step 3 to loosen/remove the door panel for access.

Step 3: Remove the front door trim panel (only if needed for connector access)

• Use a Phillips #2 screwdriver to remove any visible screws in the armrest/handle area (some are behind small caps; pry caps gently with the plastic trim panel removal tool set).
• Use the plastic trim panel removal tool set to pop the door panel clips around the perimeter.
• Lift the door panel upward to unhook it from the window ledge.
• Disconnect electrical connectors (window switch, etc.) by pressing the lock tabs; use needle-nose pliers only if needed for stubborn connectors.
• Peel back the water shield carefully; use shop towels to keep adhesive clean.

Step 4: Remove the mirror mounting nuts

• Support the mirror from the outside with one hand.
• Use a 10mm socket, 6-inch extension for 1/4-inch ratchet, and 1/4-inch drive ratchet to remove the three mirror mounting nuts.
• Keep the nuts if your replacement mirror did not come with new ones.

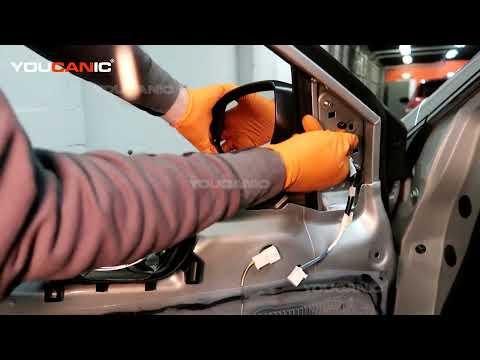

Step 5: Remove the mirror assembly

• Feed the wiring grommet and connector (if equipped) through the door opening.
• Remove the mirror and gasket from the door.
• Wipe the mounting surface with shop towels so the new gasket seals well.

Step 6: Install the new mirror

• Place the foam mirror-to-door gasket correctly (no wrinkles) and set the new mirror onto the door.
• Hand-start all three mounting nuts to avoid cross-threading.
• Use a torque wrench (inch-pound) with a 10mm socket to tighten evenly: Torque to 7.2 Nm (64 in-lbs).
• Tighten evenly to avoid cracking the mirror base.

Step 7: Reconnect wiring and reassemble trim

• Reconnect the mirror electrical connector until it clicks (if equipped).
• If you removed the door panel, re-stick the water shield, reconnect all connectors, hang the panel on the window ledge, and press clips back in by hand.
• Replace any removed screws using a Phillips #2 screwdriver.
• Snap the sail panel back on using your hands; do not hammer it.
• Replace any broken clips with door trim panel clips as needed.

Step 8: Reconnect battery (if disconnected)

• Use a 10mm socket to reconnect the negative battery cable snugly.

---

✅ After Repair

• Test mirror functions: adjust up/down/left/right; verify heat and turn signal if equipped.
• Check mirror stability by gently pushing the housing—no looseness or rattles.
• Close the door and confirm the sail panel sits flush with no gaps.
• If you removed the door panel, verify window and door lock switches work normally.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $80-$450 (parts only)

You Save: $170-$200+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
