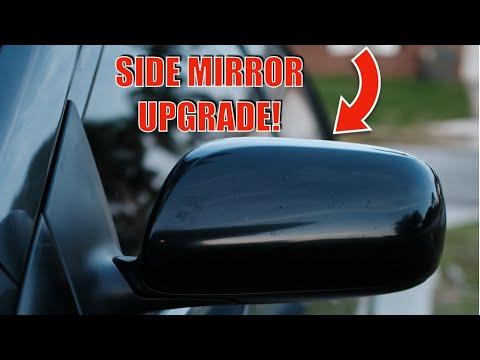

🔧 Corolla - Side View Mirror Replacement

Replacing a side view mirror on your Corolla usually means removing the small interior trim at the front-top of the door, then unbolting the mirror from inside the door. If your mirror is power-adjustable, you’ll also unplug the wiring connector before removing it.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours (per side)

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable if your mirror is power-adjustable to prevent shorting a circuit.
• Work with the window fully down so you can grab the door panel and avoid pinching fingers.
• Use plastic trim tools to avoid cracking trim or scratching paint.
• Support the mirror with your hand when removing the last nut so it doesn’t fall and chip the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips screwdriver #2
• Trim removal tool (plastic) (specialty)
• Needle-nose pliers
• Torque wrench (in-lb)
• 10mm wrench
• Flashlight
• Painter’s tape
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (Left/Driver or Right/Passenger, correct option for your car) - Qty: 1
• Door trim panel clips (optional) - Qty: 1 set
• Mirror gasket/seal (if not included with mirror) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the window all the way.
• If your mirror is power-adjustable: use a 10mm wrench to disconnect the negative battery cable and isolate it so it can’t spring back.
• Apply painter’s tape around the outside mirror base area to protect paint while handling the mirror.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner mirror trim (“sail panel”)

• At the top-front corner of the door (inside), pull off the small triangular trim piece using a trim removal tool (plastic) (specialty).
• Pull straight outward to avoid breaking clips.

Step 2: Remove the door panel (to access wiring and nuts easily)

• Remove the screw(s) in the inner door handle area using a Phillips screwdriver #2.
• Remove the screw(s) in the armrest/pull handle area using a Phillips screwdriver #2.
• Pop the door panel clips loose around the edges using a trim removal tool (plastic) (specialty).
• Lift the panel upward to unhook it from the window ledge.

Step 3: Disconnect door wiring (power options)

• If equipped, unplug the power window/lock switch connectors by pressing the tab and pulling the connector off by hand (use needle-nose pliers only if needed).
• Peel back the water shield (plastic sheet) near the mirror area carefully by hand.
• Don’t tear the water shield; it prevents leaks.

Step 4: Disconnect the mirror connector (power mirror only)

• Find the mirror electrical connector near the mirror mounting area inside the door.
• Press the lock tab and unplug it by hand (use a flashlight to see the tab clearly).

Step 5: Remove the mirror mounting nuts

• Hold the mirror from the outside with one hand.
• Remove the three mounting nuts using a 10mm socket, 6" extension (1/4" drive), and 1/4" drive ratchet.

Step 6: Remove the mirror from the door

• Pull the mirror away from the door.
• If power mirror: guide the wiring and connector through the hole as you remove it.
• Remove the old gasket/seal if it stayed on the door.

Step 7: Install the new mirror

• Place the new gasket/seal (if separate) onto the mirror or door in the same orientation as the original.
• Set the mirror in place and start all three nuts by hand to avoid cross-threading.
• Tighten the nuts evenly using a 10mm socket and 1/4" drive ratchet.
• Final tighten using a torque wrench (in-lb): Torque to 65 in-lb (7.4 N·m).

Step 8: Reconnect wiring and reassemble the door

• If power mirror: plug in the mirror connector by hand until it clicks.
• Press the water shield back into place by hand.
• Reconnect the door switch connectors by hand.
• Hang the door panel on the window ledge and press it down into place.
• Snap the clips back in by pressing around the edges with your hands.
• Reinstall screws using a Phillips screwdriver #2.
• Reinstall the sail panel by aligning clips and pressing it on by hand.

Step 9: Reconnect the battery (power mirror only)

• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• If power mirror: turn ignition ON and verify mirror up/down/left/right movement.
• Check the mirror glass is secure and the mirror housing sits flush to the door.
• Open/close the door and listen for rattles; re-seat clips if needed.
• After the first drive, recheck that the mirror doesn’t shake excessively.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $45-$220 (parts only)

You Save: $135-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
