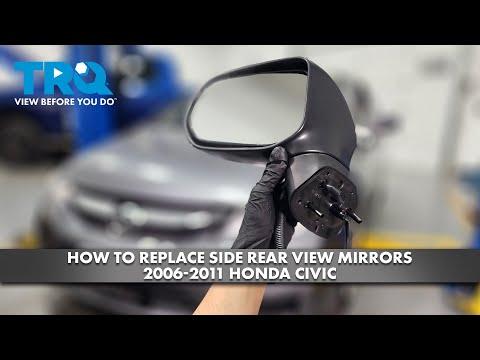

🔧 Civic - Side View Mirror Replacement

Replacing a side view mirror on your Civic usually means removing the small interior “sail” trim panel, unplugging (or unhooking) the mirror control, then swapping the mirror assembly on the door. It’s a straightforward job, but take your time so you don’t crack trim pieces or scratch paint.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours (each side)

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and keep the window fully up.
• ⚠️ If your mirror is powered, disconnect the battery negative terminal to avoid shorts while unplugging connectors.
• ⚠️ Support the mirror with one hand when removing the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool
• Phillips screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound or low-range)
• Needle-nose pliers
• Painter’s tape
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left/driver or right/passenger, matched to your features) - Qty: 1
• Mirror mounting nuts (if not included) - Qty: 3
• Interior sail panel clips (optional, in case any break) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and turn the key off.
• Put painter’s tape around the mirror base on the door to help protect the paint edge.
• If equipped with a powered mirror, use a 10mm socket to disconnect the battery negative terminal and set it aside so it can’t spring back.
• A trim removal tool is a plastic pry tool.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail trim panel

• Open the door fully for room to work.
• At the front upper corner of the door (by the mirror), use a plastic trim removal tool to gently pry off the triangular interior trim panel.
• If it resists, change angles and pry a little at a time. Slow prying prevents clip breakage.

Step 2: Identify your mirror type (powered vs manual)

• If you see an electrical connector, it’s a powered mirror (unplug it in Step 3).
• If you see a small cable/rod style control (manual remote), note how it routes so you can reinstall it the same way.

Step 3: Disconnect the mirror control

• Powered mirror: Use your fingers (or needle-nose pliers carefully) to press the lock tab and unplug the connector.
• Manual remote mirror (if equipped): Remove any small retaining clip/screw you can see using a Phillips screwdriver, then free the control/cable from the trim area.

Step 4: Remove the mirror mounting nuts

• Hold the mirror from the outside with one hand.
• Use a 10mm socket, 6" extension, and 1/4" drive ratchet to remove the three mounting nuts.
• Keep the nuts safe (or replace them if your new mirror includes new ones).

Step 5: Remove the mirror assembly

• Pull the mirror straight away from the door.
• Powered mirror: Feed the wiring and connector out through the hole in the door.
• Manual remote mirror: Carefully guide the cable/rod through without kinking it.

Step 6: Install the new mirror assembly

• Place the new mirror onto the door, aligning the studs with the holes.
• Start all three nuts by hand first (prevents cross-threading).
• Use a 10mm socket and 1/4" drive ratchet to snug them evenly.
• Use a torque wrench to finish tightening: Torque to 9 Nm (6.6 ft-lbs).

Step 7: Reconnect mirror control

• Powered mirror: Plug the connector in until it clicks.
• Manual remote mirror: Route the cable/rod the same way as before and reinstall any retainer using a Phillips screwdriver.

Step 8: Reinstall the interior sail trim panel

• Line up the trim panel clips with their holes.
• Press firmly by hand until it snaps in flush.

Step 9: Reconnect the battery (powered mirror only)

• Install the negative terminal using a 10mm socket and snug it firmly (do not over-tighten).

---

✅ After Repair

• Test mirror adjustment (up/down/left/right). Make sure it moves smoothly.
• Close the door and check the mirror sits tight with no wobble.
• Take a short drive and listen for wind noise around the mirror; re-seat the trim panel if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$500 (parts + labor, per side)

DIY Cost: $60-$200 (parts only, per side)

You Save: $140-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
