🔧 Explorer - Side View Mirror Replacement

Replacing the side view mirror on your Explorer involves removing the interior door trim to access the mirror’s electrical connector and mounting nuts. Then you swap the mirror assembly and reassemble the door panel carefully so clips and wiring don’t get damaged.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (first time)

---

⚠️ Safety & Precautions

• 🧤 Work on level ground, ignition OFF, key out.
• 🧯 Disconnect the negative battery cable before unplugging door electrical connectors to prevent shorts.
• 🪛 Use plastic trim tools (not metal) to avoid cracking the door panel and scratching trim.
• ✋ Support the mirror with one hand while removing the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Flat trim pick tool
• Phillips screwdriver
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Inch-pound torque wrench (0–200 in-lb range)
• Needle-nose pliers
• Painter’s tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left/driver or right/passenger as needed) - Qty: 1
• Door trim panel retainers/clips (recommended) - Qty: 1 set
• Mirror sail panel foam/gasket (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground and lower the window on the door you’re working on.
• Apply painter’s tape along the door edge near the mirror to protect paint.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Keep screws in a cup so none disappear.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel (mirror triangle cover)

• Use a plastic trim removal tool to pry off the small triangular trim panel at the top-front of the door (inside, by the mirror).
• If it has a tweeter speaker, unplug the connector using a flat trim pick tool to release the lock tab.

Step 2: Remove the door panel fasteners

• Use a flat trim pick tool to pop off any small trim covers hiding screws (commonly near the interior door handle area and the armrest).
• Use a 7mm socket and 1/4" ratchet to remove the door panel screws you find.
• If your door has any Phillips screws, remove them with a Phillips screwdriver.

Step 3: Release the door panel clips and lift the panel off

• Starting at the bottom edge, slide in the plastic trim removal tool and pop the panel clips loose one by one.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug the electrical connectors (window/lock switch panel, courtesy light) by pressing the tabs with a flat trim pick tool.
• If equipped, disconnect the interior door handle cable (use needle-nose pliers gently if needed). A “cable” here is a small metal wire inside a sheath that pulls the latch.

Step 4: Peel back the vapor barrier

• Carefully peel back the plastic water shield near the mirror area by hand.
• If the adhesive resists, use a plastic trim removal tool to separate it slowly so it can be reused.

Step 5: Unplug the mirror connector

• Locate the mirror wiring connector inside the door near the mirror mount.
• Release the lock tab with a flat trim pick tool and unplug the connector.

Step 6: Remove the mirror mounting nuts

• Hold the mirror on the outside with one hand.
• Use a 10mm socket, extension, and ratchet to remove the (usually) three mounting nuts.
• Remove the mirror from the outside and guide the wiring through the opening.

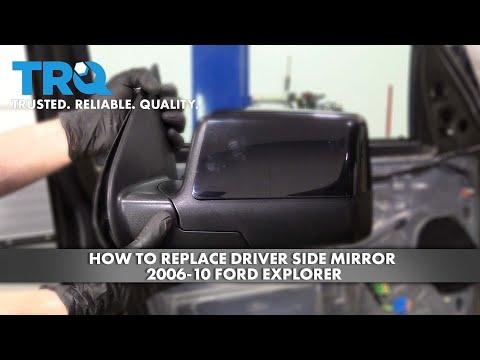

Step 7: Install the new mirror

• Feed the new mirror’s wiring through the door opening and seat the mirror against the door.
• Thread the mounting nuts on by hand first (prevents cross-threading).
• Use a 10mm socket to snug them evenly.
• Final tighten with an inch-pound torque wrench: Torque to 10 Nm (89 in-lb).

Step 8: Reconnect wiring and reassemble the door

• Plug in the mirror connector until it clicks.
• Reposition the vapor barrier and press the adhesive back into place.
• Reconnect all door panel connectors (switches/lights) and the interior handle cable.
• Hang the door panel on the top window ledge, then press around the edges to re-seat the clips.
• Reinstall screws using a 7mm socket (and Phillips screwdriver if applicable): Torque to 2.5 Nm (22 in-lb).
• Snap the sail panel back on using hand pressure; reconnect tweeter wiring first if equipped.

Step 9: Reconnect the battery

• Use a 10mm socket to reconnect the negative battery cable and tighten securely.

---

✅ After Repair

• Test mirror movement in all directions using the mirror switch.
• If equipped, verify heat (rear defrost on), puddle lamp, and turn signal on the mirror.
• Confirm the window/locks work and the interior handle opens the door normally.
• Check the mirror sits flush and doesn’t whistle at highway speeds (gasket seated correctly).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$600 (parts + labor)

DIY Cost: $90-$350 (parts only)

You Save: $160-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
