🔧 Civic - Rear Window Regulator Replacement

The rear window regulator is the mechanism that moves the glass up and down. Replacement means removing the rear door trim panel, securing the glass, swapping the regulator (and motor if included), then testing window operation before reassembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one rear door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the window tracks and scissors/cable mechanism.
• ⚠️ Support the glass with tape before unbolting it from the regulator.
• ⚠️ Disconnect the negative battery cable before unplugging the window motor.
• ⚠️ Don’t tear the vapor barrier (plastic sheet); it helps prevent water leaks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim/panel clip removal tool
• Small flat trim pick tool
• Phillips screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Torque wrench (in-lb or low-range ft-lb)
• Painter’s tape (wide)
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator (correct side) - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included)
• Rear door trim panel clips - Qty: 1 set (replace any broken)
• Butyl seal tape (for vapor barrier) - Qty: 1 (if original won’t reseal)

---

📋 Before You Begin

• Park your Civic on level ground and remove the key.
• Lower the affected rear window to about halfway if it still moves (this lines up the glass bolts in the access holes).
• Disconnect the battery negative cable: use 10mm socket and isolate the cable so it can’t spring back.
• If the window is stuck up, that’s OK—you’ll secure the glass before separating it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

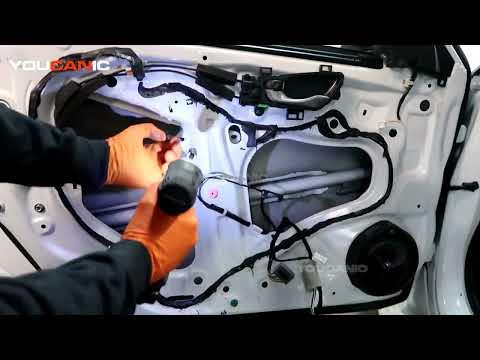

Step 1: Remove the rear door switch/trim and door panel

• Use a trim/panel clip removal tool to carefully pry up the window switch panel.
• Unplug the switch connector by pressing the tab and pulling straight out (don’t yank the wires).
• Pop off any small screw covers using a small flat trim pick tool.
• Remove the door panel screws using a Phillips screwdriver.
• Starting at the bottom edge, release the panel clips using a trim/panel clip removal tool, then lift the panel straight up to unhook it from the window ledge.
• Disconnect any remaining connectors as needed.

Step 2: Remove the vapor barrier (plastic water shield)

• Peel it back slowly by hand; if needed, help it along with a small flat trim pick tool.
• Tip: Keep the sticky butyl clean for re-use.

Step 3: Secure the window glass

• Use painter’s tape (wide) to tape the glass to the door frame (run multiple strips from outside glass over the top of the door frame to the inside).
• If the glass is down and loose, carefully slide it up by hand while supporting it with your other hand, then tape it.

Step 4: Disconnect the glass from the regulator

• Locate the glass clamp bolts through the door access holes.
• Use a 10mm socket, 1/4" drive ratchet, and 6" socket extension to loosen/remove the glass clamp bolts.
• Torque on install: Torque to 7 Nm (5 ft-lbs)

Step 5: Unplug and remove the regulator (and motor if included)

• Unplug the window motor connector by pressing the tab; use needle-nose pliers only to assist the tab if needed.
• Remove the regulator mounting bolts using a 10mm socket, 1/4" drive ratchet, and 6" socket extension.
• Torque on install: Torque to 9 Nm (7 ft-lbs)
• Carefully work the regulator assembly out through the large access opening.

Step 6: Transfer the motor (only if your new regulator doesn’t include it)

• Hold the motor/regulator firmly and remove the motor fasteners using a 10mm socket and 1/4" drive ratchet.
• Install the motor onto the new regulator and tighten evenly.
• Torque to 6 Nm (4 ft-lbs)
• Tip: Don’t force the motor gear—seat it flat.

Step 7: Install the new regulator

• Feed the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand to avoid cross-threading, then tighten using a 10mm socket and 1/4" drive ratchet.
• Torque to 9 Nm (7 ft-lbs)
• Plug in the motor connector until it clicks.

Step 8: Attach the glass to the regulator

• Lower/raise the regulator carrier as needed so the clamp holes line up with the glass bracket.
• If needed, temporarily reconnect the window switch connector to move the regulator (battery must be connected for this), then disconnect again before reassembly.
• Install/tighten the glass clamp bolts using a 10mm socket and torque wrench (in-lb or low-range ft-lb).
• Torque to 7 Nm (5 ft-lbs)
• Remove the painter’s tape (wide) after the glass is secured.

Step 9: Test the window before putting the door back together

• Reconnect the battery negative cable using a 10mm socket.
• Plug in the window switch and run the window fully down and fully up while watching for binding or popping.
• If it tilts or binds, stop and re-check regulator alignment and glass seating.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back onto the butyl; add butyl seal tape if it won’t stick.
• Hang the door panel on the top lip first, then press clips in around the edges with your hands.
• Reinstall screws using a Phillips screwdriver.
• Snap the switch panel back in place using your hands (no tools).

---

✅ After Repair

• Run the rear window through 5 up/down cycles and listen for grinding or clicking.
• Confirm the door locks and speaker (if equipped) work, and the switch illumination works.
• Check for water leaks next time it rains or after a car wash (vapor barrier seal matters).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
