🔧 Escape - Rear Window Regulator Replacement

On your Escape, the rear window regulator is the cable-and-track assembly inside the rear door that lifts and lowers the glass. Replacement usually fixes a window that’s stuck, crooked, makes grinding/clicking noises, or drops into the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

Quick questions (so I match your setup): Which rear door (left or right)? And are you replacing the regulator only or regulator + motor?

---

⚠️ Safety & Precautions

• ⚠️ Support the glass before unbolting it—untaped glass can drop suddenly and shatter.
• ⚠️ Keep fingers clear of the regulator scissor/cable paths while testing.
• ⚠️ If you disconnect the battery, wait at least 5 minutes before unplugging door wiring connectors.
• ⚠️ Wear gloves—door shell edges are sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Work gloves
• Trim removal tool set (plastic)
• Phillips screwdriver #2
• Torx T20 screwdriver
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" ratchet
• 3" extension for 1/4" ratchet
• Torque wrench (in-lb or low-range Nm)
• Painter's tape (1"-2" wide)
• Pick tool
• Magnetic pickup tool
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window regulator motor - Qty: 1 (if not included with regulator)
• Rear door trim panel clips - Qty: 4-10 (as needed)
• Butyl tape / vapor barrier adhesive - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and turn the ignition off.
• Lower the affected rear window to about halfway if it still moves (this lines up the clamp bolts).
• If the window is stuck up, plan to access the glass clamps through the door openings and tape the glass securely.
• Optional but safer: disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a trim removal tool set (plastic) to pop up the window switch panel and unplug the connector.
• Remove visible screws using a 7mm socket and/or Torx T20 screwdriver (common locations: inside the pull handle and behind small trim caps).
• Use a trim removal tool set (plastic) to pop the panel clips around the edges, then lift the panel upward off the beltline.
• Tip: Pull straight out to save clips.

Step 2: Remove the vapor barrier (moisture shield)

• Carefully peel the vapor barrier back by hand; use a pick tool to help separate sticky butyl without tearing it.
• Support the barrier so it doesn’t collect dirt; you’ll reseal it later with butyl tape / vapor barrier adhesive.

Step 3: Secure the window glass

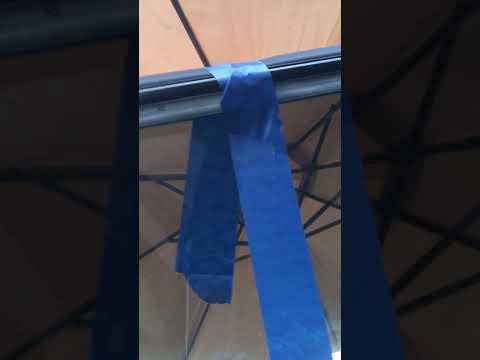

• If the glass is still attached to the regulator, place multiple strips of painter's tape (1"-2" wide) from the outside of the glass over the top of the door frame and back down (like “straps”).
• If the glass is dropped inside the door, lift it by hand to the fully up position and tape it securely.

Step 4: Separate the glass from the regulator clamps

• Through the door access holes, locate the glass-to-regulator clamp fasteners.
• Use an 8mm socket to loosen the clamp bolts and free the glass from the regulator sliders.
• Re-tape the glass firmly in the full up position.
• Torque on reassembly: Torque to 8 Nm (71 in-lb)

Step 5: Unplug the window motor and remove the regulator assembly

• Unplug the motor electrical connector (use a pick tool to lift the lock tab if needed).
• Remove the regulator mounting fasteners using an 8mm socket or 10mm socket (varies by replacement design).
• Remove the motor fasteners (if transferring the motor) using a Torx T20 screwdriver.
• Maneuver the regulator out through the large door opening.
• Torque on reassembly (regulator fasteners): Torque to 8 Nm (71 in-lb)
• Torque on reassembly (motor fasteners): Torque to 3 Nm (27 in-lb)

Step 6: Install the new regulator (and motor if applicable)

• Position the new regulator in the door and start all fasteners by hand.
• Tighten regulator fasteners using an 8mm socket/10mm socket and a torque wrench: Torque to 8 Nm (71 in-lb)
• If you’re installing/transferring the motor, tighten with a Torx T20 screwdriver: Torque to 3 Nm (27 in-lb)
• Plug in the motor connector until it clicks.

Step 7: Reattach the glass to the regulator and test

• Remove some tape so the glass can lower slightly, but keep one strip supporting it.
• Turn the ignition on and use the switch to align the regulator clamps with the glass attachment points.
• Slide the glass into the clamps, then tighten clamp bolts using an 8mm socket: Torque to 8 Nm (71 in-lb)
• Cycle the window fully down and fully up to confirm smooth movement and correct sealing.

Step 8: Reseal the vapor barrier and reinstall the door panel

• Press the vapor barrier back into place; add butyl tape / vapor barrier adhesive anywhere it won’t stick.
• Hang the door panel on the top edge first, then press clips in around the perimeter.
• Reinstall screws using a 7mm socket and/or Torx T20 screwdriver.
• Reconnect the window switch connector and snap the switch panel back in.

---

✅ After Repair

• Confirm the window goes up/down smoothly and doesn’t tilt or bind.
• Check the outside window seal sits evenly against the glass.
• If auto-up/down or pinch protection acts weird: with the door closed, run the window fully down, hold the switch 2 seconds, then run fully up and hold 2 seconds.
• Make sure the vapor barrier is fully sealed to prevent water leaks and speaker issues.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
