🔧 Highlander - Rear Window Regulator Replacement

The rear window regulator is the cable-and-track mechanism that lifts and lowers the rear door glass. When it fails, the window may move slowly, bind, drop into the door, or not move at all. This job involves removing the rear door trim panel, securing the glass, swapping the regulator, then reassembling.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before unplugging door electrical connectors to prevent accidental shorts.
• ⚠️ Support the window glass with tape before loosening the glass clamps—glass can drop suddenly.
• ⚠️ Keep hands clear of the regulator scissor/cable path while testing.
• ⚠️ Do not switch the ignition ON while the window switch or motor is unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Pick tool
• Needle-nose pliers
• Razor blade or plastic scraper
• Painters tape (1" or wider)
• Torque wrench (in-lb or low-range ft-lb)
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly - Qty: 1
• Rear window regulator motor - Qty: 1 (only if motor is not included or is bad)
• Door trim panel retainer clips - Qty: 2-6 (as needed)
• Butyl tape (moisture barrier adhesive) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park your Highlander on level ground and remove the key from the vehicle.
• Lower the affected rear window until you can see the glass clamp bolts through the access holes (if the regulator still moves).
• Disconnect the battery using a 10mm socket and isolate the negative cable so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

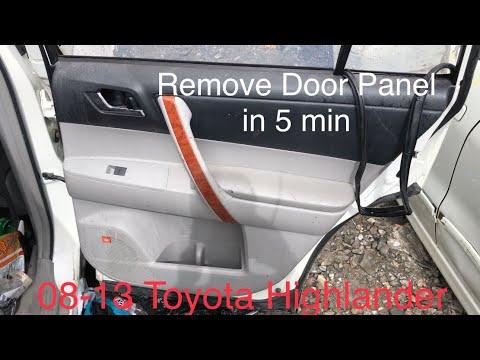

Step 1: Remove the rear door trim panel

• Use a pick tool to pop off the small trim cover(s) at the inner door handle/armrest area (they hide screws).
• Remove the exposed screw(s) with a Phillips #2 screwdriver.
• Use a plastic trim removal tool set to pry around the perimeter and release the panel clips.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug the window switch connector(s) by releasing the tab with a pick tool.
• Tip: Pull close to each clip to avoid cracking the panel.

Step 2: Remove the moisture barrier (vapor sheet)

• Carefully peel back the plastic moisture barrier using a razor blade or plastic scraper to separate the butyl adhesive.
• Do not tear it—this keeps water off the inside of the cabin.

Step 3: Secure the glass in the “up” position

• If the window still operates: temporarily reconnect the window switch, reconnect the battery, and move the glass until the clamp bolts are visible through the access holes; then disconnect the battery again using a 10mm socket.
• Apply painters tape from the outside of the glass over the top of the door frame (use 2–4 strips) to hold the glass up.
• If the regulator is broken and the glass won’t stay up: lift the glass by hand (gloves on) and tape it securely.

Step 4: Separate the glass from the regulator

• Through the access holes, remove the glass clamp bolt(s) using a 10mm socket and 1/4" drive ratchet.
• Confirm the glass is free from the regulator, then re-check your tape support.
• Torque to 66 in-lb (7.5 Nm) during reassembly.

Step 5: Remove the regulator (and motor)

• Unplug the regulator motor connector using a pick tool to release the lock tab.
• Remove the regulator mounting bolts using a 10mm socket, extension, and ratchet.
• Remove the motor bolts (if separate) using a 10mm socket.
• Carefully maneuver the regulator/motor assembly out through the large access opening.
• Torque to 66 in-lb (7.5 Nm) during reassembly for the regulator/motor mounting bolts.

Step 6: Install the new regulator (transfer motor if needed)

• If your new regulator does not include a motor: transfer the motor to the new regulator using a 10mm socket and tighten evenly.
• Feed the new regulator into the door and align all bolt holes by hand first.
• Install and tighten the regulator bolts using a 10mm socket and ratchet.
• Plug in the motor connector until it clicks.

Step 7: Reattach the glass to the regulator

• Lower the glass carefully into the clamps (remove and reapply painters tape as needed to control the glass).
• Install the clamp bolt(s) using a 10mm socket and ratchet.
• Torque to 66 in-lb (7.5 Nm).

Step 8: Function test before reassembly

• Reconnect the battery using a 10mm socket.
• Reconnect the window switch connector and run the window fully down and fully up while watching for binding.
• If it tilts forward/back or chatters, loosen the regulator bolts slightly with a 10mm socket, align, then retighten to spec.
• Disconnect the battery again using a 10mm socket before reinstalling the moisture barrier and panel.

Step 9: Reinstall the moisture barrier and door panel

• Press the moisture barrier back onto the butyl; add butyl tape where it no longer sticks.
• Reconnect the door switch connector(s).
• Hook the top of the panel onto the window ledge and press the clips in around the edges by hand.
• Reinstall the screws using a Phillips #2 screwdriver, then reinstall the trim covers.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Test the rear window from both the rear switch and the driver master switch.
• Listen for clicking/grinding; if heard, stop and re-check glass seating in the clamps.
• If the auto function behaves oddly, cycle the window fully down then fully up once to help it relearn.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $200-$760 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
