🔧 Fusion - Rear Door Lock Actuator Replacement

The rear door lock actuator is the electric motor/latch unit that locks and unlocks the rear door. On your Fusion, replacing it requires removing the rear door trim panel, disconnecting the latch/actuator wiring, and swapping the latch/actuator assembly inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep the ignition OFF and key fob away from the car to prevent modules waking up while connectors are unplugged.
• ⚠️ Support the window glass and avoid pulling on wiring; door harness connectors can be damaged easily.
• ⚠️ Use plastic trim tools; metal tools can crack the panel or scratch trim.
• ⚠️ Battery disconnect is recommended if you’ll have the door open for a long time with wiring unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Plastic trim removal tool set
• Phillips screwdriver
• Flat trim pick tool
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" ratchet
• 3" extension for 1/4" ratchet
• Torx T27 screwdriver
• Torx T30 screwdriver
• Needle-nose pliers
• Magnetic pickup tool
• Painters tape
• Shop light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel clips - Qty: 6–10
• Butyl door vapor barrier adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and power the car fully OFF.
• Lower the rear window about halfway (makes access easier).
• If you choose to disconnect the battery: use a 10mm socket to disconnect the negative cable and wait 2 minutes before unplugging door connectors.
• Place painters tape along the door edge and handle area to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which rear door you’re working on

• Decide rear left (driver side) or rear right (passenger side). The steps are the same, but parts are often side-specific.
• Reply “rear left” or “rear right” if unsure.

Step 2: Remove the rear door switch/handle trim pieces

• Use a plastic trim removal tool set to carefully pry up the window switch bezel (the trim around the switch).
• Unplug the switch connector by pressing the tab with a flat trim pick tool, then pull straight out.
• Use the plastic trim removal tool set to pop off the small trim cover behind the interior door handle (it hides a screw).

Step 3: Remove the door panel screws

• Remove the screw behind the interior handle using a 7mm socket or Phillips screwdriver (your Fusion may use either style).
• Remove the screw(s) in the armrest pull pocket using a 7mm socket.
• If equipped, remove any lower-edge screws using an 8mm socket.

Step 4: Release the door panel clips and lift the panel off

• Starting at the lower corner, slide a plastic trim removal tool set between the panel and door and pop each clip free.
• Lift the door panel straight up and off the window ledge.
• Support the panel close to the door so you don’t strain the wiring.

Step 5: Disconnect wiring and the inside handle cable

• Unplug remaining connectors (speaker/courtesy light) using a flat trim pick tool to release tabs.
• Remove the interior handle cable: rotate the cable housing out of its bracket by hand, then unhook the cable end using needle-nose pliers.
• Take a photo before unhooking—helps reassembly.

Step 6: Peel back the vapor barrier (water shield)

• Carefully peel the plastic vapor barrier back using your hands and a plastic trim removal tool set.
• If the adhesive won’t stick later, you’ll use butyl door vapor barrier adhesive during reassembly.

Step 7: Remove the rear door latch/actuator assembly fasteners

• At the rear edge of the door (near the latch), remove the latch screws using a Torx T30 screwdriver.
• Inside the door, locate the actuator/latch electrical connector and unplug it using a flat trim pick tool.
• Remove any latch carrier bolts (if present) using an 8mm socket and 1/4" ratchet.

Step 8: Disconnect the lock rods/cables from the latch

• Identify the rods/cables going to the latch (inside handle cable, lock rod depending on build).
• Use needle-nose pliers to open the retaining clip, then lift the rod out of the latch lever.
• Do one rod at a time to avoid confusion.

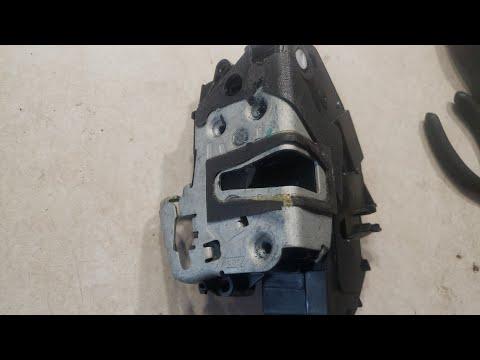

Step 9: Remove the latch/actuator and swap it

• Work the latch/actuator assembly out through the access opening while guiding cables/rods clear.
• Compare the old and new part (connector location and levers should match).
• Install the new latch/actuator by reversing removal: feed it in, align it, and start screws by hand.

Step 10: Reinstall latch screws/bolts and reconnect everything

• Reinstall the latch screws using a Torx T30 screwdriver and snug evenly.
• Reinstall any latch carrier bolts using an 8mm socket and 1/4" ratchet.
• Reconnect all rods/cables and confirm each retaining clip is fully seated.
• Plug the latch/actuator connector back in until it clicks.

Step 11: Refit the vapor barrier

• Press the vapor barrier back into the original adhesive.
• If needed, apply butyl door vapor barrier adhesive and press firmly all around the edge.

Step 12: Reinstall the door panel

• Reconnect all electrical connectors using your hands (use a shop light to confirm alignment).
• Reconnect the interior handle cable (hook end in first, then snap housing into bracket).
• Hang the panel on the window ledge and press down to seat it.
• Press around the edges to snap all clips in.
• Reinstall screws using a 7mm socket / 8mm socket as removed.
• Reinstall trim covers and the switch bezel using the plastic trim removal tool set.

---

✅ After Repair

• Test the lock/unlock using the key fob and the inside lock switch.
• Open/close the door from inside and outside to confirm the latch releases smoothly.
• Confirm the door ajar light works correctly and the window switch works.
• If the battery was disconnected, reconnect it using a 10mm socket and re-test all functions.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $220-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
