🔧 Corolla - Front Window Regulator Replacement

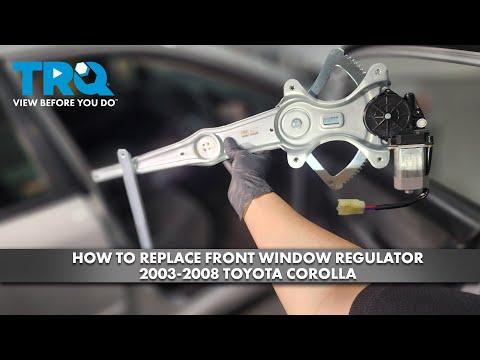

The front window regulator is the cable-and-track assembly that moves the door glass up and down. Replacing it means removing the door panel, supporting the glass, swapping the regulator (and sometimes the motor), then reassembling and testing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Quick questions (answer if you can): (1) Driver side or passenger side? (2) Are you replacing the regulator only, or regulator + motor as an assembly?

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator mechanism; it can pinch hard.
• ⚠️ Support the door glass with tape before unbolting it, or it can drop and shatter.
• ⚠️ If you see any yellow connectors in the door, do not probe them; they’re typically SRS-related wiring.
• ⚠️ Turn the key OFF and remove it before unplugging door switches.
• ⚠️ Battery disconnect is recommended if your door has SRS wiring: use a 10mm wrench to disconnect the negative terminal and wait 90 seconds.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" ratchet
• Torque wrench (in-lb)
• Needle-nose pliers
• Painter’s tape (2")
• Magnetic pickup tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window motor - Qty: 1 (only if not included with regulator)
• Door trim panel clips - Qty: 1 set (as needed)
• Butyl door vapor barrier tape - Qty: 1 (as needed)

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• 🔑 Turn the key OFF and remove it.
• 🪟 If the window still moves, run it to about halfway down so the glass-to-regulator bolts are accessible through the door access holes.
• 🔋 If you see yellow SRS-style connectors in the door, disconnect the battery negative cable using a 10mm wrench and wait 90 seconds.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel

• Use a trim removal tool to gently pry up the switch panel at the armrest.
• Unplug the electrical connectors by pressing the lock tabs; use a small flat-blade screwdriver only if needed.

Step 2: Remove screws and door panel

• Remove the screw behind the interior door handle trim using a Phillips #2 screwdriver (some panels use a 10mm head; if so use a 10mm socket).
• Remove the armrest/pull-handle screws using a Phillips #2 screwdriver or 10mm socket (varies by panel).
• Use a trim removal tool to pop the door panel clips around the edges.
• Lift the door panel straight up to unhook it from the window ledge.
• Disconnect the door handle cable(s) carefully; use needle-nose pliers if a clip is tight.

Step 3: Remove the vapor barrier

• Peel back the plastic moisture barrier slowly by hand.
• If the sticky butyl stretches, use a small flat-blade screwdriver gently to separate it.
• Keep it clean so it reseals.

Step 4: Secure the glass

• Use painter’s tape (2") to tape the window glass to the door frame from the outside (2–3 long strips).
• If the glass is down and the regulator has failed, lift the glass by hand to the top and tape it securely.

Step 5: Separate the glass from the regulator

• Locate the two glass-to-regulator fasteners through the door access openings.
• Use a 10mm socket with a 1/4" ratchet and 6" extension to remove/loosen them and free the glass from the regulator clamps/slider.
• Torque to 7.5 Nm (66 in-lbs) on reassembly (typical M6 hardware).

Step 6: Remove the window motor (if transferring)

• If your replacement is a regulator-only unit, unplug the motor connector.
• Use a 10mm socket to remove the motor bolts.
• Lift the motor straight off the regulator gear.
• Torque to 7.5 Nm (66 in-lbs) when reinstalling the motor.

Step 7: Remove the regulator assembly

• Unplug any regulator/motor connector using your fingers (use a small flat-blade screwdriver only to help the tab).
• Use a 10mm socket to remove the regulator mounting bolts.
• Carefully snake the regulator out through the large access opening.
• Move slowly to avoid bending the door skin.

Step 8: Install the new regulator

• Insert the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand first to avoid cross-threading.
• Tighten regulator mounting bolts using a 10mm socket.
• Torque to 7.5 Nm (66 in-lbs) for regulator mounting bolts (typical M6 hardware).

Step 9: Reinstall motor (if applicable)

• Set the motor onto the regulator gear and align the bolt holes.
• Install bolts using a 10mm socket.
• Torque to 7.5 Nm (66 in-lbs).
• Plug in the motor connector.

Step 10: Attach the glass to the regulator

• Lower the taped glass carefully until it lines up with the regulator clamp/slider.
• Install the glass fasteners using a 10mm socket.
• Torque to 7.5 Nm (66 in-lbs).
• Remove the painter’s tape (2") after the glass is secured.

Step 11: Test window operation before reassembly

• Reconnect the window switch temporarily and plug it in by hand.
• If you disconnected the battery, reconnect it using a 10mm wrench.
• Cycle the window up/down while watching for smooth travel and no cable popping.
• If it binds, stop and loosen regulator bolts slightly with a 10mm socket, align, then re-torque.

Step 12: Reinstall vapor barrier and door panel

• Press the vapor barrier back into place; add butyl door vapor barrier tape if the seal is damaged.
• Reconnect the handle cable(s) and electrical connectors.
• Hang the door panel on the top ledge, then press clips in around the perimeter.
• Reinstall screws using a Phillips #2 screwdriver or 10mm socket (matching what came out).
• Snap the switch panel back in using your hands.

---

✅ After Repair

• 🧪 Run the window fully down and fully up 5–10 times to confirm smooth movement and normal speed.
• 🔊 Listen for clicking or cable “twang”; that can mean misalignment.
• 🧼 Verify the vapor barrier is sealed to help prevent water leaks and speaker damage.
• 🚪 Confirm the door handle, lock, and all switches work before calling it done.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
