🔧 Timing Drive - No Timing Belt on This Engine

Your Beetle 1.8L turbo does not use a timing belt. It uses a timing chain, so there is no belt replacement procedure for this engine. If you’re hearing chain noise, have cam/crank correlation codes, or suspect stretch/tensioner wear, the correct repair is timing chain service instead.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• Allow the engine to cool completely before working near the timing cover.
• Disconnect the negative battery cable before removing electrical connectors or rotating the engine by hand.
• Use proper engine support if any mount must be removed during timing service.
• Do not crank the engine with timing components removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torx bit set
• Triple-square bit set
• Torque wrench
• Breaker bar
• Engine support bar
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan
• Catch container for coolant
• Pick tool
• Screwdriver set
• Timing chain locking tool set (specialty)
• Camshaft alignment tool (specialty)
• Crankshaft holding tool (specialty)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front timing cover sealant - Qty: 1
• Valve cover gasket - Qty: 1
• Camshaft and crankshaft seals - Qty: 1 set
• Engine oil - Qty: 1 oil change
• Oil filter - Qty: 1
• Coolant - Qty: as needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully.
• Disconnect the negative battery cable.
• This job requires exact engine timing; mark and lock components before removal.
• Take photos before disconnecting anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Set up the vehicle

• Use a floor jack and jack stands to safely raise and support the front of the vehicle if needed for access.
• Disconnect the negative battery cable using the correct metric wrench.

Step 2: Remove access components

• Use a metric socket set and Torx bit set to remove engine covers, intake ducting, and any front-end access parts blocking the timing cover.
• If an engine mount interferes, support the engine with an engine support bar before removal.

Step 3: Drain and prep

• Use a drain pan and catch container to collect coolant and any oil needed for front cover removal.
• Remove the serpentine belt with the proper metric wrench or breaker bar if required for access.

Step 4: Lock the engine at top dead center

• Rotate the engine by hand using a breaker bar on the crankshaft bolt until cylinder 1 is at top dead center.
• Install the crankshaft holding tool and camshaft alignment tool to lock timing in place.
• Never force the engine backward.

Step 5: Remove timing cover and components

• Use a Torx bit set and socket set to remove the timing cover fasteners.
• Carefully separate the cover with a plastic trim tool or pick tool.
• Remove the tensioner, guides, and chain with the appropriate socket set and Torx bits.

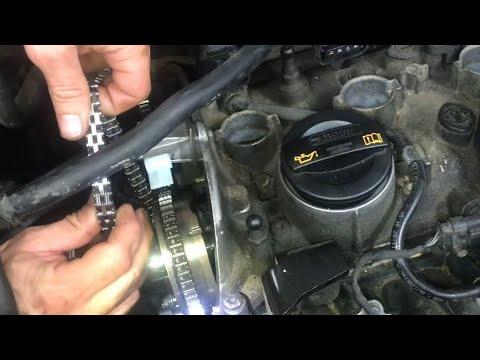

Step 6: Install new timing components

• Install the new guides, chain, and tensioner from the timing chain kit.
• Verify all timing marks and locking tools are still aligned before tightening.
• Torque to factory specification for each fastener using a torque wrench; exact values vary by fastener location on this engine.

Step 7: Reassemble

• Clean the mating surfaces and apply front timing cover sealant as specified by Volkswagen procedures.
• Reinstall the timing cover, engine mount parts, intake ducting, and engine covers.
• Torque to factory specification on all fasteners using a torque wrench.

Step 8: Refill and verify

• Refill coolant and change engine oil if contaminated during the repair.
• Reconnect the battery.
• Start the engine and listen for abnormal chain noise.

---

✅ After Repair

• Check for oil or coolant leaks around the timing cover.
• Confirm smooth idle and no check-engine light.
• Scan for codes and clear any stored faults if the repair was successful.
• If the engine had a major timing issue, verify cam/crank correlation with a scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $1,450-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
