🔧 Timing Chain - Service Information

Your Corolla does not use a timing belt. It uses a timing chain, which is inside the engine and is not a routine replacement item like a belt. If you're chasing a rattle, misfire, or timing-related code, the fix is usually diagnosis first, then chain, tensioner, or guide service if needed.

Difficulty Level: Advanced | Estimated Time: 0.5-1 hour for inspection

---

⚠️ Safety & Precautions

• Do not remove timing covers or crank components with the engine running.
• Allow the engine to cool before touching nearby components.
• Battery disconnect may be required if you inspect sensors or wiring near the timing cover.
• Incorrect cam/crank timing can cause no-start or engine damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD-II scan tool
• 10mm socket
• Ratchet
• Extension bar
• Flashlight
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front timing cover sealant - Qty: 1
• Engine oil - Qty: 4.4 quarts
• Oil filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Scan for stored codes first with an OBD-II scan tool.
• If the engine has a cold-start rattle, note how long it lasts.
• If you are replacing timing components, disconnect the negative battery cable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the timing system

• Use an OBD-II scan tool to check for cam/crank correlation codes.
• This engine uses a timing chain, not a timing belt.
• Chain noise on startup is a key clue.

Step 2: Inspect for external oil leaks

• Use a flashlight to look around the front cover area for oil seepage.
• Low oil level or sludge can cause chain tensioner problems.
• Check the oil level before any deeper diagnosis.

Step 3: Diagnose before disassembly

• Use the OBD-II scan tool to review freeze-frame data and live cam timing values.
• If codes point to timing correlation, further mechanical inspection is needed.
• Do not guess at timing faults.

Step 4: Repair if timing components are confirmed faulty

• This job requires front engine disassembly, including accessory removal and timing cover removal.
• Use a 10mm socket, ratchet, and extension bar to remove related covers and brackets.
• Set the engine at top dead center before removing chain components.

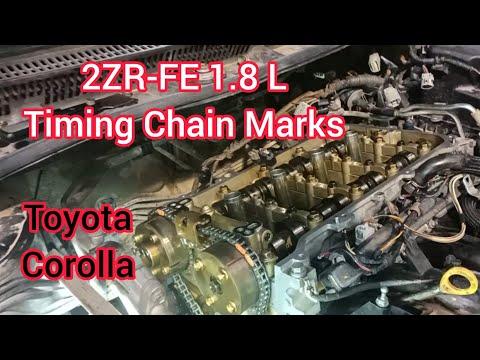

• Install the new chain, guides, and tensioner exactly to factory timing marks.
• Torque to factory specification for each fastener using the service manual.

Step 5: Reassemble and verify

• Reseal the timing cover with approved sealant.
• Refill engine oil and install a new oil filter.
• Start the engine and listen for abnormal timing noise.
• Re-scan for codes after the repair.

---

✅ After Repair

• Check for oil leaks at the front cover.
• Confirm smooth idle and normal acceleration.
• Clear any stored codes with the scan tool.
• Recheck oil level after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $1,000-$1,750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
