🔧 Timing Belt - Not Applicable

Your Camry Hybrid 2.5L does not use a timing belt. It uses a timing chain, which is a different setup and is not a routine maintenance item like a belt.

If you’re hearing chain rattle, have a cam/crank correlation code, or suspect chain stretch, the repair is a timing chain service—not a belt replacement.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

---

⚠️ Safety & Precautions

• Hybrid system precautions apply. Do not work near high-voltage orange cables.
• Power down the vehicle fully before opening the engine bay.
• Disconnect the 12V battery before timing chain work.
• Keep the engine at top dead center alignment before removing chain components.
• Use care around hot engine parts if the engine was recently run.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torque wrench
• Breaker bar
• Crank pulley holding tool (specialty)
• Harmonic balancer puller (specialty)
• Timing chain service tool set (specialty)
• Drain pan
• Funnel
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front cover gasket set - Qty: 1
• Valve cover gasket - Qty: 1
• Crankshaft seal - Qty: 1
• Camshaft seals - Qty: 2
• Engine oil - Qty: 1 oil change
• Engine oil filter - Qty: 1
• Coolant - Qty: 1 refill

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the 12V battery before starting.
• Drain engine oil and coolant before opening the front cover.
• Have the engine timing marks verified before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power and drain fluids

• Use a 10mm socket to disconnect the 12V battery negative cable.
• Use a drain pan to drain the engine oil.
• Drain the coolant from the radiator drain or lower hose.

Step 2: Remove access components

• Use the correct metric socket set to remove the engine covers, air intake ducting, accessory drive components, and any brackets blocking the timing cover.
• Keep bolts organized by location.

Step 3: Set engine timing to top dead center

• Use a breaker bar and socket on the crankshaft bolt to rotate the engine by hand.

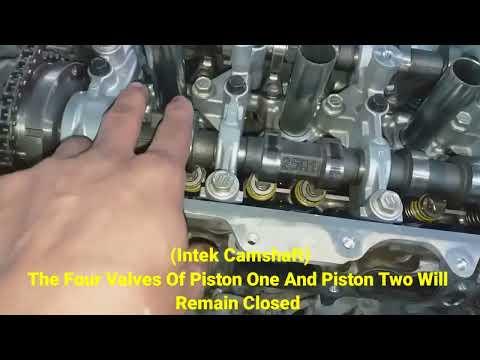

• Align the factory timing marks before removing any chain parts.

Step 4: Remove timing cover and chain components

• Use the metric socket set to remove the front timing cover bolts.
• Use a plastic trim tool to gently separate the cover without damaging sealing surfaces.
• Remove the tensioner and guides with the metric socket set.

Step 5: Install the new timing chain components

• Install the new chain, guides, and tensioner following the factory timing marks.
• Use a torque wrench to tighten all fasteners to Toyota specification.
• Torque to factory spec for each fastener; exact values vary by bolt location.

Step 6: Reassemble and refill fluids

• Install new gaskets and seals before fitting the front cover.
• Use a torque wrench to tighten cover bolts evenly in sequence.
• Refill engine oil and coolant.

Step 7: Verify operation

• Reconnect the 12V battery.
• Start the engine and listen for abnormal chain noise.
• Check for oil or coolant leaks.
• Scan for engine codes and clear them if the repair is complete.

---

✅ After Repair

• Let the engine idle and confirm smooth operation.
• Check oil level again after warm-up.
• Recheck coolant level after a full heat cycle.
• Drive gently at first and recheck for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $1,450-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-10 hours.

---
