🔧 Alternator - Not Applicable / Charging System Check

Your Prius v does not use a conventional belt-driven alternator. The 12V battery is charged by the hybrid system through the inverter/DC-DC converter, so there is no alternator to replace on this model.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• The hybrid system contains high voltage. Do not open orange cables or inverter components unless the system is safely powered down.
• Turn the vehicle OFF and remove the key/fob from the cabin before inspection.
• If working near the hybrid battery or inverter, disconnect the 12V battery first when required by the repair procedure.
• Do not probe high-voltage circuits with standard test lights.
• Wear safety glasses.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension bar
• Digital multimeter
• Safety glasses
• Mechanic gloves
• Battery terminal wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V auxiliary battery - Qty: 1
• 12V battery terminal hardware - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the car OFF and make sure it is not in READY mode.
• If your concern is a charging warning light, check the 12V battery first.
• A weak 12V battery can mimic charging failure.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm there is no alternator

• Open the hood and look at the engine accessory drive area.
• You will not find a conventional alternator on this hybrid system.
• If you see a charging concern, continue with 12V battery and inverter charging checks instead.

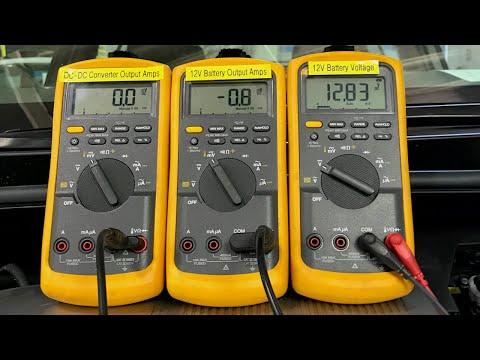

Step 2: Test the 12V battery

• Use a digital multimeter to measure the 12V battery at rest.
• A fully charged battery should read about 12.6V or higher.
• If voltage is low, charge or replace the 12V battery before further diagnosis.

Step 3: Check charging in READY mode

• Start the vehicle and make sure it enters READY mode.
• Use the digital multimeter to measure the 12V battery again.
• You should see charging voltage from the hybrid DC-DC converter, typically around 13.5V to 14.5V.

Step 4: Inspect related fuses and connections

• Use the 10mm socket and ratchet if needed to inspect battery terminals.
• Check for loose, corroded, or damaged connections at the 12V battery.
• Inspect under-hood charging-related fuses in the fuse box.

Step 5: Check for hybrid system warnings

• If the car shows a charging or hybrid warning light, scan the vehicle for codes.
• Codes related to the inverter, DC-DC converter, or battery system point to the real fault.

---

✅ After Repair

• Start the vehicle and confirm it enters READY mode normally.
• Recheck 12V battery voltage with the car on.
• Verify warning lights are gone after any battery or fuse repair.
• If codes were present, clear them with a scan tool and recheck.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 for diagnosis and 12V battery-related charging checks

DIY Cost: $0-$180 for battery testing or replacement parts

You Save: $120-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
