🔧 Starter Motor - Serviceability Check

Your Camry does not have a separate, bolt-on starter motor. The engine-start function is handled by the hybrid drive system, so there is no standalone starter motor to replace.

If the car will not READY, the most common causes are the 12V battery, battery connections, brake switch, or a hybrid system fault. The fix depends on the fault code, not a starter motor replacement.

Difficulty Level: Intermediate | Estimated Time: 0.5-2 hours

---

⚠️ Safety & Precautions

• Hybrid systems carry high voltage. Do not open orange HV cables or transaxle internals without proper isolation.
• Battery disconnect alone does not make the hybrid system safe.
• Use insulated gloves if inspecting hybrid-related components.
• Keep the car in Park and the parking brake engaged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Socket wrench
• Multimeter
• Battery terminal brush
• Safety glasses
• Insulated gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V auxiliary battery - Qty: 1, if weak or failed
• Battery terminal ends or clamps - Qty: 1 set, if corroded
• Battery terminal cleaner - Qty: 1, if corrosion is present

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Make sure the shift lever is in P.
• Check the dash for warning lights before doing anything else.
• If the car will not READY, test the 12V battery first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

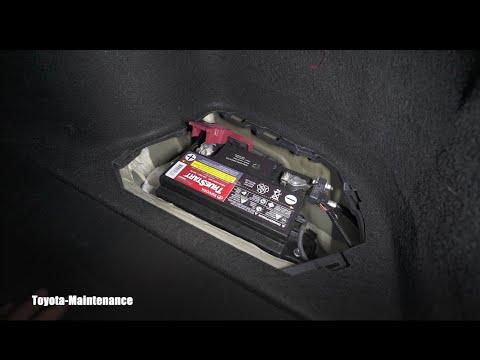

Step 1: Check the 12V battery

• Use a multimeter to measure battery voltage at the terminals.
• If voltage is low, charge or replace the battery before looking deeper.
• Weak 12V power is very common.

Step 2: Inspect battery connections

• Use a 10mm socket to loosen the terminal nuts.
• Clean both battery posts and clamps with a battery terminal brush.
• Reinstall and tighten the terminals.
• Torque to 5 Nm (44 in-lbs) on the terminal nuts.

Step 3: Verify the brake switch and READY request

• Press the brake pedal and confirm the brake lights come on.
• If the brake switch fails, the car may not READY.
• Check for any message on the instrument cluster.

Step 4: Scan for fault codes

• Use a scan tool to read hybrid system and body codes.
• Do not replace major parts until the code points to the fault.

Step 5: If the fault is not the 12V system

• The starting function is inside the hybrid transaxle system, not a separate starter motor.
• That repair is a major hybrid drivetrain job and should be diagnosed with factory-level testing first.

---

✅ After Repair

• Start the car and confirm it goes to READY normally.
• Clear any stored codes.
• Recheck battery voltage after running.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 for diagnosis, or much more if hybrid drivetrain repair is needed

DIY Cost: $0-$180 for battery/service items

You Save: $120-$70+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-2 hours for diagnosis.

---
