🔧 Camry - Timing Belt Replacement

Your Camry does not use a timing belt. The 2.5L hybrid engine uses a timing chain, which is internal and not a routine replacement item like a belt. If you’re hearing chain noise, have a cold-start rattle, or a cam/crank timing code, the next step is diagnosis rather than belt replacement.

Difficulty Level: Advanced | Estimated Time: 6-12 hours

---

⚠️ Safety & Precautions

• Hybrid system caution: Shut the vehicle down fully before working near the engine bay.
• High-voltage system: Hybrid systems can retain dangerous voltage; disable the system per factory procedure before major engine work.
• Battery disconnect: Required for diagnosis or repair near electrical connectors and sensors.
• Hot components: Let the engine cool completely before inspection.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD-II scan tool
• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Torque wrench
• Trim tool
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing cover gasket set - Qty: 1
• Engine oil - Qty: 1 oil change set
• Engine oil filter - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gasket - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the 12V battery before major engine work.
• Scan for engine codes first so you know whether the chain, tensioner, or phasers are the issue.
• Do not open the engine until diagnosis confirms it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the concern

• Use an OBD-II scan tool to check for cam/crank correlation or timing-related codes.
• Listen for cold-start rattle or chain noise from the front of the engine.

Step 2: Inspect related components

• Use a 10mm socket and 12mm socket to remove covers as needed.
• Inspect the belt drive, tensioners, and front cover area for leaks or noise.

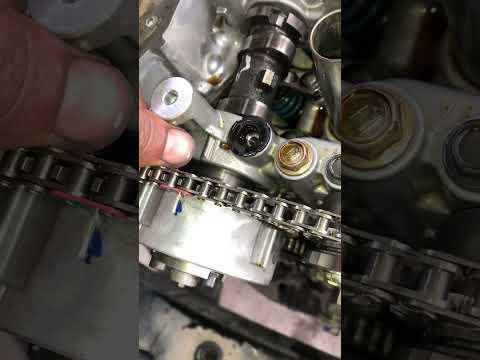

Step 3: Repair timing components if confirmed

• Use the proper factory locking procedure before removing the timing cover.
• Replace the timing chain kit, guides, and tensioner as a set if wear is found.
• Torque to factory specification for all timing cover and sprocket fasteners.

Step 4: Reassemble and refill

• Install new gaskets and seals.
• Refill engine oil and install a new oil filter.
• Reconnect the 12V battery.

---

✅ After Repair

• Start the engine and check for leaks or abnormal noise.
• Clear any stored codes with the scan tool.
• Road test and recheck for warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $1,500-$3,500 (timing chain service, parts + labor)

DIY Cost: $250-$900 (parts only)

You Save: $1,250-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-12 hours.

---
