🔧 550i - Transmission Fluid & Filter (Pan) Service

On your 550i, the automatic transmission fluid is serviced by draining the old fluid and replacing the transmission oil pan (the filter is built into the pan on this unit). The refill is temperature-sensitive, so you must set the final fluid level with the engine running at the correct transmission fluid temperature.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: Your 550i uses the ZF 8-speed with pan-integrated filter.

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the car with jack stands; never rely on a jack alone.
• ⚠️ Transmission fluid can be hot; let the car cool and wear gloves and safety glasses.
• ⚠️ Keep the car level during filling; if it’s nose-up or nose-down, the fluid level will be wrong.
• ⚠️ Engine will run during final fill; keep hands/clothes away from rotating parts and hot exhaust.
• ⚠️ No battery disconnect is required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Fluid transfer pump (specialty)
• Torx T27 bit socket
• Torx T40 bit socket
• 3/8" drive ratchet
• 1/4" drive torque wrench (2-25 Nm range)
• 3/8" drive torque wrench (20-80 Nm range)
• E10 external Torx socket
• 8mm socket
• Trim clip removal tool
• Brake cleaner spray
• Shop towels
• OBD-II scan tool with transmission temperature data (specialty)
• Infrared thermometer (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission oil pan with integrated filter and gasket - Qty: 1
• Transmission pan bolt set - Qty: 1
• Automatic transmission fluid (ZF Lifeguard 8 equivalent) - Qty: 8-10 quarts
• Drain plug sealing ring - Qty: 1
• Fill plug sealing ring - Qty: 1
• Underbody shield fastener clips - Qty: 1 set (as needed)

---

📋 Before You Begin

• 🧰 Drive the car 10-15 minutes, then let it cool so the transmission is warm, not hot.
• 🧰 Park on a level surface, set the parking brake, and place wheel chocks at the rear wheels.
• 🧰 Raise the car and set it on jack stands so it sits level front-to-rear.
• 🧰 Connect your OBD-II scan tool with transmission temperature data (specialty). A scan tool is a small reader that shows live vehicle temperatures and data.
• 🧰 Have your fluid transfer pump (specialty) ready. This is a hand pump that pushes new fluid up into the fill port.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the underbody panels

• Use the 8mm socket, Torx T27 bit socket, and trim clip removal tool to remove the fasteners and lower the underbody shields.
• Set fasteners aside in a tray so you don’t lose them.

Step 2: Locate the transmission fill plug first

• Use the Torx T40 bit socket and 3/8" drive ratchet to confirm you can loosen the transmission fill plug.
• Never drain first if you can’t fill.

Step 3: Drain the old transmission fluid

• Place the drain pan (10-quart minimum) under the transmission pan.
• Use the Torx T40 bit socket to remove the drain plug (if equipped) and let fluid drain fully.
• Clean any drips with shop towels.

Step 4: Remove the transmission oil pan

• Support the pan with one hand and use the E10 external Torx socket with a 3/8" drive ratchet to remove the pan bolts evenly.
• Lower the pan carefully; more fluid will spill, so keep the drain pan positioned underneath.

Step 5: Clean the mating surface

• Use brake cleaner spray and shop towels to clean the transmission case sealing surface.
• Do not scrape aggressively; you don’t want to gouge the aluminum case.

Step 6: Install the new pan/filter assembly

• Position the new pan with gasket in place.
• Hand-start all new pan bolts to avoid cross-threading.
• Use the 1/4" drive torque wrench (2-25 Nm range) to tighten pan bolts in a crisscross pattern: Torque to 8 Nm (71 in-lbs).

Step 7: Reinstall the drain plug

• Install a new drain plug sealing ring.
• Use the Torx T40 bit socket with the 1/4" drive torque wrench (2-25 Nm range): Torque to 8 Nm (71 in-lbs).

Step 8: Initial fill (engine OFF)

• Remove the fill plug using the Torx T40 bit socket.

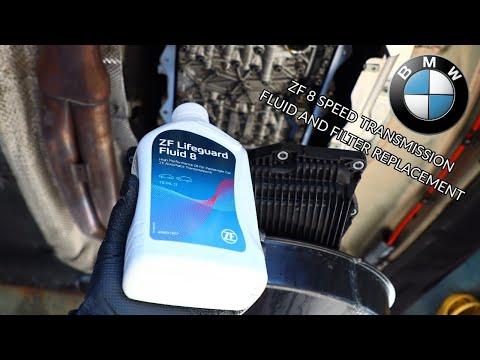

• Use the fluid transfer pump (specialty) to pump in ZF Lifeguard 8 equivalent fluid until it starts to run back out of the fill hole.
• Install the fill plug finger-tight for now.

Step 9: Final level set (engine ON, temperature window)

• Start the engine and keep your foot on the brake.
• With the engine idling, move the shifter slowly through P-R-N-D, pausing 2-3 seconds in each position, then back to P.
• Use the OBD-II scan tool with transmission temperature data (specialty) to watch transmission fluid temperature.
• When fluid temperature is approximately 30°C to 50°C (86°F to 122°F), remove the fill plug using the Torx T40 bit socket.
• Use the fluid transfer pump (specialty) to add fluid until it dribbles out as a steady thin stream.
• Let excess drip until it becomes a light dribble (this indicates correct level at that temperature).

Step 10: Torque the fill plug

• Install a new fill plug sealing ring.
• Use the 3/8" drive torque wrench (20-80 Nm range) and Torx T40 bit socket: Torque to 35 Nm (26 ft-lbs).
• Wipe the area clean with shop towels so you can spot leaks later.

Step 11: Reinstall underbody panels

• Reinstall the shields using the 8mm socket, Torx T27 bit socket, and any new clips.
• Snug fasteners evenly; do not overtighten plastic panels.

---

✅ After Repair

• 🧪 With the car still level, inspect around the pan, drain, and fill plugs for seepage.
• 🧪 Test drive 10-15 minutes, then re-check underneath for leaks.
• 🧪 If you have a scan tool, check for transmission-related fault codes and confirm normal shifting.
• 🧪 Dispose of used fluid at a recycling center or parts store that accepts waste oil/fluids.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $250-$550 (parts only)

You Save: $400-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
