🔧 Tiguan - Transmission Fluid Drain & Fill

Your Tiguan uses a “sealed” automatic transmission, which means the fluid level is set by a temperature-based level check (not a dipstick). The job is mainly draining the old fluid, refilling, then setting the final level at the correct fluid temperature.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, level surface—final fluid level depends on the vehicle being level.
• ⚠️ Transmission fluid can be hot—wear gloves and safety glasses.
• ⚠️ Support the vehicle with jack stands—never rely on a floor jack alone.
• ⚠️ Engine will run during level setting—keep hands/tools away from belts and fans.
• ⚠️ Do not overfill—incorrect level can cause shifting problems and damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Torx T25 bit socket
• Torx T30 bit socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (10-60 Nm range)
• 5mm hex bit socket
• 8mm hex bit socket
• Fluid transfer pump (specialty)
• VW/Aisin ATF fill adapter (specialty)
• Scan tool that reads ATF temperature (OBDeleven/VCDS equivalent) (specialty)
• Funnel with hose
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (VW-approved for your Tiguan automatic) - Qty: 5-7 quarts
• Transmission drain plug seal/washer - Qty: 1
• Transmission fill plug seal/washer - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Plan to keep the vehicle level on four jack stands for the final level check.
• Connect your scan tool and confirm you can view Transmission fluid temperature. This is required to set the level correctly.
• Tip: Crack the fill plug first. If it won’t open, don’t drain the transmission.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Warm the transmission slightly

• Use your scan tool that reads ATF temperature (specialty) and watch transmission temperature while idling.
• Shut the engine off when ATF is warm (not hot). Target starting range is roughly 30-35°C (86-95°F) so you’re not working with scalding fluid.

Step 2: Raise and level the vehicle

• Use a floor jack to lift and place the Tiguan on jack stands at all four corners.
• Confirm it sits level (front-to-rear and side-to-side). Use the floor jack again to adjust if needed.

Step 3: Remove the lower engine splash shield

• Use a Torx T25 bit socket and/or Torx T30 bit socket with a 3/8" ratchet to remove the belly pan fasteners.
• Set the panel and fasteners aside in the order you removed them.

Step 4: Locate the transmission fill and drain points

• Place a drain pan under the transmission.
• The drain is at the bottom of the transmission pan area; the fill is typically on the side of the transmission case.
• Clean around the plugs using shop towels so dirt can’t fall in.

Step 5: Remove the fill plug first

• Use the correct hex bit socket (5mm or 8mm) with a 3/8" ratchet to loosen and remove the fill plug.
• If the fill plug will not loosen, reinstall it and stop here (you don’t want an empty transmission you can’t refill).

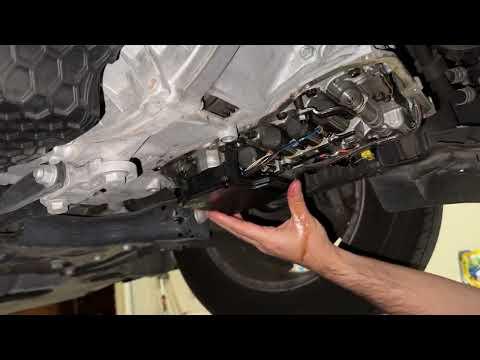

Step 6: Drain the old fluid

• Use the correct hex bit socket (5mm or 8mm) to remove the drain plug and let fluid drain into the drain pan.
• Let it drip until it slows to an occasional drop.
• Reinstall the drain plug with a new seal/washer.
• Torque to 30 Nm (22 ft-lbs)

Step 7: Refill with new ATF

• Install the VW/Aisin ATF fill adapter (specialty) into the fill port.
• Use the fluid transfer pump (specialty) to pump fresh ATF in until it begins to run back out of the fill port.
• Install the fill plug finger-tight for now (you’ll reopen it to set the level).

Step 8: Circulate fluid through the transmission

• Start the engine (foot on brake, parking brake on).
• Move the shifter slowly through P-R-N-D and back, pausing 2-3 seconds in each position to fill the circuits.
• Leave it in P with the engine idling.

Step 9: Set the final fluid level at temperature

• Use the scan tool that reads ATF temperature (specialty) and watch ATF temperature while idling.
• When ATF reaches the level-check range (commonly 35-45°C / 95-113°F), remove the fill plug again using the correct hex bit socket.
• Pump in ATF with the fluid transfer pump (specialty) until a steady stream turns into a thin trickle/drip from the fill port.
• Reinstall the fill plug with a new seal/washer.
• Torque to 35 Nm (26 ft-lbs)

Step 10: Reinstall the splash shield

• Reinstall the belly pan using the Torx T25 bit socket / Torx T30 bit socket.
• Snug the fasteners evenly (do not over-tighten into plastic).

---

✅ After Repair

• Check for leaks around the drain and fill plugs with the engine idling.
• Test drive 10-15 minutes, then recheck underneath for seepage.
• If you notice delayed engagement, flares, or harsh shifts, stop driving and recheck level at the correct ATF temperature using the scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
