🔧 Sienna - Transmission Fluid Drain & Fill

Your Sienna’s automatic transmission uses a “sealed” fluid level setup (no dipstick). A correct service is a drain-and-fill plus a level check at a specific fluid temperature, or the fluid can end up too low or too high.

Difficulty Level: Advanced | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a level surface; the fluid level check is not accurate on a slope.
• 🛑 Use jack stands; never rely on a floor jack alone.
• 🛑 Transmission fluid can be hot; wear nitrile gloves and safety glasses.
• 🛑 Keep the engine running only when instructed; keep hands/loose clothing away from moving parts.
• 🛑 No battery disconnect is required for a fluid drain-and-fill.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Trim clip removal tool
• Metric socket set (8mm-14mm)
• 3/8" ratchet
• Torque wrench (10-100 Nm range)
• Fluid transfer pump (specialty)
• OBD2 scan tool that reads ATF temperature (specialty)
• Shop towels
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Toyota ATF WS) - Qty: 6 quarts
• Transmission drain plug gasket (crush washer) - Qty: 1
• Transmission fill plug gasket - Qty: 1

---

📋 Before You Begin

• ✅ Park on level ground and chock the rear wheels.
• ✅ Raise the front and support with jack stands; keep the van level (front-to-rear) for the level check.
• ✅ Remove the front underbody cover(s) if they block access (use a trim clip removal tool and 10mm socket as needed).
• ✅ Plan how you’ll read transmission fluid temperature: use an OBD2 scan tool that reads ATF temperature. (ATF temp is the fluid temperature inside the transmission.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm your fill & level-check setup (quick check)

• Use a flashlight and visually locate the fill plug and the drain plug area.
• On sealed Toyota units, the fluid level is often set using an internal overflow/standpipe through the drain opening, but the exact plug layout can vary by transmission build.
• Before you drain anything: confirm you can remove the fill plug first (so you don’t end up with an empty transmission you can’t refill).

Step 2: Remove the fill plug FIRST (do not drain yet)

• Place the drain pan under the transmission area (some fluid may seep).
• Use the correct tool for your plug style (typically a socket or hex bit socket set, depending on what you see) and loosen/remove the fill plug.
• If the fill plug is stuck, stop and address that first (penetrating oil, correct bit fully seated, controlled force). Do not proceed to draining until this plug can be removed.

Step 3: Drain the old fluid

• Position the drain pan (10-quart minimum) under the drain plug.
• Use the correct socket to remove the drain plug and let the fluid drain completely.
• Clean the drain plug and magnet (if equipped) using brake cleaner spray and shop towels.
• Install a new drain plug gasket (crush washer).

Step 4: Reinstall the drain plug (snug, then torque)

• Thread the drain plug in by hand first (to avoid cross-threading).
• Use a torque wrench (10-100 Nm range) to torque the drain plug to the correct spec for your transmission.
• Tip: I can give exact torque with a plug photo.

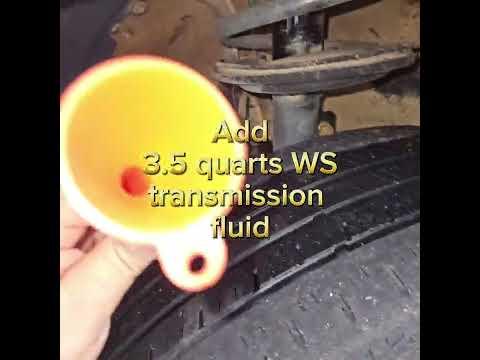

Step 5: Refill with Toyota ATF WS

• Insert the hose from the fluid transfer pump (specialty) into the fill hole.
• Pump in automatic transmission fluid (Toyota ATF WS) until fluid begins to reach the level-check point for your setup.
• Reinstall the fill plug loosely for now (you’ll finalize after level check).

Step 6: Set the fluid level at the correct ATF temperature

• Connect your OBD2 scan tool that reads ATF temperature (specialty) and display transmission fluid temperature.
• Start the engine and keep the vehicle level on jack stands.
• With your foot on the brake, slowly move the shifter through each gear (P-R-N-D) and back to P, pausing ~2 seconds in each position.
• Follow the sealed-level procedure for your transmission design (overflow/standpipe style). This step is transmission-specific and depends on the exact plug/standpipe arrangement.
• Tip: Wrong temp = wrong level.

Step 7: Final tighten, clean up, and reinstall undercovers

• Torque the fill plug with a torque wrench (10-100 Nm range) to the correct spec for your transmission.
• Clean any residue using brake cleaner spray and shop towels.
• Reinstall underbody panels using the trim clip removal tool and metric socket set (8mm-14mm).

---

✅ After Repair

• 🔎 Test drive 10-15 minutes and verify smooth shifting.
• 🔎 Recheck for leaks around the drain and fill plugs after the drive.
• 🔎 If you have any delayed engagement, flares, or new noises, stop driving and re-check level/temperature method.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹3,500-₹8,500 (parts only)

You Save: ₹4,500-₹9,500 by doing it yourself!

Shop labor rates vary locally; this job is typically 1.5-3.0 hours.

---
