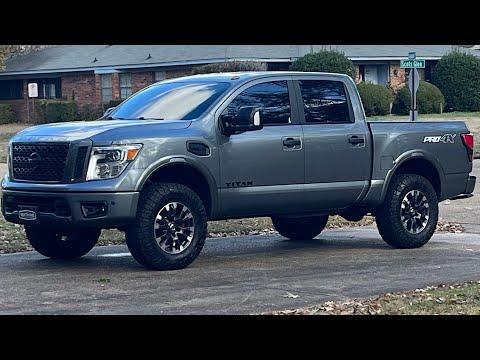

🔧 TITAN - Transmission Fluid Change

On your TITAN, the safest “DIY change” is usually a drain-and-fill (replaces part of the fluid). A full fluid exchange requires special equipment and can cause problems if done incorrectly, so I’ll walk you through the OEM-style drain-and-fill and (optional) pan drop/filter service.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Quick question (so I guide you exactly right): Does your TITAN have a transmission dipstick (a pull-out stick, usually labeled ATF), or is it a sealed transmission with a fill/level plug?

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface; fluid level is very sensitive to vehicle angle.
• ⚠️ Use jack stands—never rely on a floor jack alone.
• ⚠️ Transmission fluid can be hot; wear gloves and safety glasses.
• ⚠️ Keep the engine area ventilated if you must idle the truck for temperature checks.
• ⚠️ Do not crawl under the truck with the engine running unless it is securely supported.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Shop rags
• 10mm socket
• 3/8" drive ratchet
• Torque wrench (inch-pound and foot-pound)
• Trim clip tool
• Long-neck funnel
• Fluid transfer pump (specialty)
• OBD2 scan tool with transmission fluid temperature (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Nissan Matic S equivalent) - Qty: 6-8 quarts
• Transmission drain plug gasket/crush washer - Qty: 1
• Transmission pan gasket - Qty: 1 (optional if pan is removed)
• Transmission strainer/filter - Qty: 1 (optional if pan is removed)
• Brake cleaner - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Warm the transmission with a 10–15 minute drive so the fluid drains better.
• Raise the truck with a floor jack and support it on jack stands at the frame; keep it as level as possible front-to-rear.
• If your TITAN is sealed (no dipstick), plan to check level using transmission fluid temperature on an OBD2 scan tool (it reads live data from the truck).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the transmission pan area

• Use a trim clip tool and 10mm socket to remove any front under-cover/splash shield panels blocking the transmission pan.
• Position a drain pan (at least 10-quart) under the transmission drain plug/pan.

Step 2: Drain the old transmission fluid

• Use a 3/8" drive ratchet (and correct socket if equipped) to loosen the transmission drain plug.
• Let it drain until it slows to a drip (usually 10–20 minutes).
• Replace the drain plug gasket/crush washer.
• Reinstall the drain plug and use a torque wrench: Torque to 34 N·m (25 ft-lbs).
• Tip: Measure what drained out.

Step 3 (Optional): Drop the pan and replace the strainer/filter

• If you’re doing filter service, keep the drain pan under the pan—more fluid will spill.
• Use a 10mm socket and ratchet to remove the pan bolts evenly, leaving 2 bolts threaded at one end to control the drop.
• Support the pan by hand, remove the last bolts, and lower it carefully.
• Remove the strainer/filter using the 10mm socket.
• Clean the pan and magnet(s) with brake cleaner and shop rags.
• Install the new strainer/filter and tighten with a torque wrench: Torque to 8 N·m (71 in-lbs).
• Install the new pan gasket, reinstall the pan bolts, and tighten in a crisscross pattern with a torque wrench: Torque to 8 N·m (71 in-lbs).

Step 4: Refill with the correct ATF

• If your TITAN has a dipstick:
• Insert a long-neck funnel into the dipstick tube.
• Add the same amount you measured coming out, using Nissan Matic S equivalent.
• Start the engine, hold the brake, and slowly shift P-R-N-D and back to P.
• With the engine idling, check the dipstick and top up in small amounts.
• Tip: Add 0.25 quart at a time.

• If your TITAN is sealed (no dipstick):
• Locate the transmission fill plug (and level/overflow plug if equipped).
• Use a fluid transfer pump (specialty) to pump Nissan Matic S equivalent into the fill port until it begins to run out of the level port (if your unit uses an overflow/standpipe style).
• Use an OBD2 scan tool with transmission fluid temperature (specialty) to monitor temperature; set the final level at the specified temperature window for your transmission (commonly around warm-idle range).
• Reinstall the fill/level plug(s) and tighten with a torque wrench: Torque to 25 N·m (18 ft-lbs).

Step 5: Reinstall covers and lower the truck

• Reinstall any splash shields using the 10mm socket and trim clip tool.
• Lower the truck off the jack stands using the floor jack.

---

✅ After Repair

• Start the engine and check underneath for leaks around the drain plug and pan.
• Test drive 10–15 minutes, then recheck for leaks.
• If your TITAN has a dipstick, recheck the level hot after the test drive and top up as needed.
• If it’s sealed, recheck level using the same temperature-based method.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
