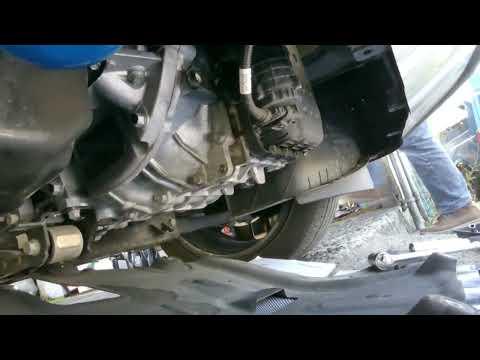

🔧 Sportage - Transmission Fluid Drain & Refill

On your Sportage, the automatic transmission fluid (ATF) is serviced by draining the old fluid and refilling through the fill port, then verifying the level at the correct fluid temperature. This helps maintain smooth shifting and protects the transmission from wear and overheating.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the vehicle with jack stands—never rely on a jack alone.
• ⚠️ ATF can be hot; wear nitrile gloves and safety glasses.
• ⚠️ Keep the engine running only when instructed; stay clear of moving parts and the exhaust.
• ⚠️ Clean around fill/drain plugs first—dirt in the transmission can cause damage.
• ✅ Battery disconnect is not required for this service.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Metric socket set (8mm–24mm)
• 3/8" drive ratchet
• 24mm socket
• 10mm socket
• Torque wrench (10–100 ft-lbs)
• Trim clip tool
• Fluid transfer pump (specialty)
• Long neck funnel
• OBD2 scan tool with live data (specialty)
• Shop rags
• Brake cleaner spray
• Infrared thermometer

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (ATF) Kia/Hyundai SP-IV - Qty: 6–8 quarts
• Transmission drain plug crush washer - Qty: 1
• Transmission fill plug crush washer - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the transmission with a 10–15 minute drive so the fluid drains more completely.
• If your scan tool can show transmission temperature, find the live data item for ATF Temperature before you start.
• A fluid transfer pump “pushes” ATF into the fill hole.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and level the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of your Sportage at the correct lift point.
• Set it down on jack stands (rated 3-ton minimum).
• Lift the rear as needed so the vehicle sits level on stands (this matters for accurate fluid level checking).

Step 2: Remove the lower splash shield (if equipped)

• Use a 10mm socket and 3/8" drive ratchet to remove the fasteners.
• Use a trim clip tool to pop any plastic clips without breaking them.
• Set the shield and fasteners aside.

Step 3: Identify the fill plug before draining

• Locate the transmission fill plug on the transmission case (higher than the drain).
• Use a 24mm socket and 3/8" drive ratchet to confirm it will loosen (do not remove yet).
• If the fill plug won’t open, don’t drain.

Step 4: Drain the old ATF

• Place a drain pan (at least 10-quart) under the transmission drain plug.
• Use the correct size from your metric socket set (8mm–24mm) with a 3/8" drive ratchet to remove the drain plug.
• Let it drain until it slows to an occasional drip.
• Measure how much came out (so you can refill close to the same amount).

Step 5: Reinstall the drain plug with a new crush washer

• Clean the drain plug and sealing surface using shop rags and brake cleaner spray.
• Install a new drain plug crush washer.
• Thread the drain plug in by hand, then tighten using a torque wrench (10–100 ft-lbs).
• Torque to 39–49 Nm (29–36 ft-lbs).

Step 6: Refill with new ATF

• Remove the fill plug using a 24mm socket and 3/8" drive ratchet.
• Install the fluid transfer pump (specialty) onto your ATF container (SP-IV) and pump fluid into the fill hole.
• Add approximately the same amount you drained out (start there).
• Install a new fill plug crush washer and thread the fill plug in by hand.
• Tighten using a torque wrench (10–100 ft-lbs).
• Torque to 39–49 Nm (29–36 ft-lbs).

Step 7: Warm up and cycle gears for an accurate level check

• With the vehicle still level on jack stands, start the engine.
• Hold the brake pedal and move the shifter slowly through P-R-N-D, pausing 2–3 seconds in each position, then return to P.
• Plug in your OBD2 scan tool with live data (specialty) and monitor ATF Temperature.
• Target the level check when ATF is approximately 50–60°C (122–140°F).
• If you don’t have ATF temp on the scan tool, use an infrared thermometer on the transmission pan as a rough guide (scan tool is more accurate).

Step 8: Verify the fluid level (overflow/check method)

• With the engine idling and ATF in the target temp range, remove the transmission level/check plug (on the pan area, depending on your exact case) using the correct tool from your metric socket set (8mm–24mm).
• Proper level is typically indicated by a small steady stream that slows to a thin drip.
• If nothing comes out, add ATF through the fill port using the fluid transfer pump (specialty) until it begins to overflow, then reinstall the check plug.
• Tighten the check plug using a torque wrench (10–100 ft-lbs).
• Torque to 39–49 Nm (29–36 ft-lbs).
• Keep the vehicle level during this step.

Step 9: Reinstall splash shield

• Reinstall the shield using a 10mm socket, 3/8" drive ratchet, and trim clip tool.

---

✅ After Repair

• Start the engine and check for leaks around the drain, fill, and check plugs.
• Test drive gently for 10–15 minutes. Confirm smooth shifts and no slipping or flare.
• Recheck for leaks after the test drive.
• Dispose of used ATF properly (most auto parts stores accept waste fluid).

---

💰 DIY vs Shop Cost

Shop Cost: $250–$450 (parts + labor)

DIY Cost: $60–$140 (parts only)

You Save: $110–$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–2.5 hours.

---
